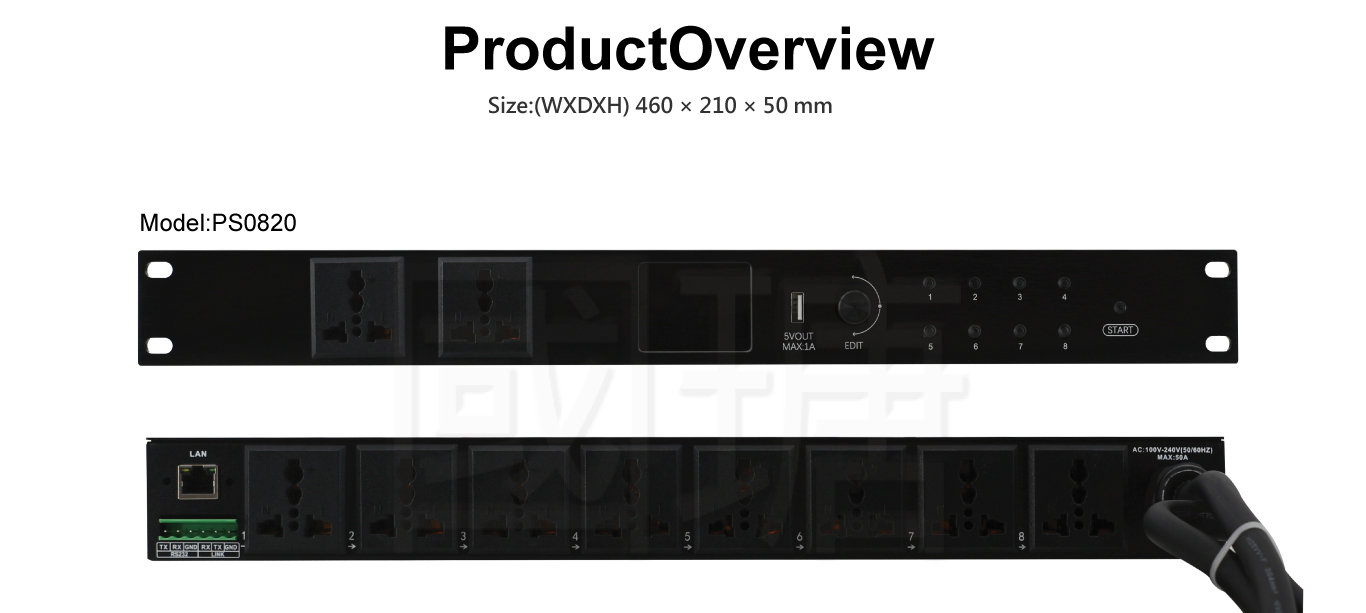

PS0820

Advanced Power Management Sequence Controller

Supports TCP/IP, UDP, RS232, and front-panel control

Products / Power Control Solutions

Feature

8 Switch Channels: Independent control for up to 8 output channels.
The device features 2 front-mounted pass-through power outlets, providing convenient and accessible power connections for additional equipment.
Control Options: Supports TCP/IP, UDP, RS232, and front-panel push-button control.
Cascading Support: Enables sequential control across multiple devices.
Adjustable time delay between power-on/off for each output channel.
Device ID Management: Unique ID assignment and detection for each device.
Protection Mechanisms: Undervoltage and overvoltage detection with alarm functionality.
2.4-inch LCD Display: Intelligent front-panel display showing operational status.

Model Name	PS0820
Rated Output Voltage	AC 110~260V, 50Hz
Rated Output Current	30A (total)
Controlled Ports	8 channels (rear), 2 pass-through channels (front)
Power Supply	AC 110~260V, 50/60Hz, 30A
Per Channel Output Current	13A (max)
Control method	TCP/IP, UDP, RS232, and front-panel push-button control
Weight	4.5Kg
Dimensions	460 x 210 x 50 mm(LxWxH)

To ensure safe operation and compliance with international standards, please use only certified power cables. Certified power cables have undergone rigorous quality and safety testing, effectively preventing overheating, short circuits, and other potential risks, thereby safeguarding both equipment and personnel. The use of uncertified power cables may lead to equipment damage or safety hazards. Strict adherence to this recommendation is required..
