4-Port USB2.0 Optical & Copper Integrated Extender

Cat5e/Cat6 Transmission 100m｜Fiber Transmission 20km｜ Dual-Medium Extender

UEF210

Products / USB Extenders

Remote 4-Port USB Hub

The receiver is built with 4-port USB2.0 output ports, allowing you to connect and operate up to 4 USB peripheral devices remotely at the same time, such as keyboards, mice, printers or storage devices, which greatly improves work efficiency and convenience.

Serial Data Transmission Support

Supports RS-232 serial data transmission, which can adapt to signal transmission requirements in various application scenarios and improve the flexibility of device connection.

Remote Host Power On/Off Control

Supports remote host power on/off function, with full control right in the hands of personnel at the receiver end, facilitating remote host management and improving operational convenience.

Flexible Transmission Distance & Diverse Transmission Media

It can transmit up to 100 meters using Cat5e/Cat6 cables and up to 20 kilometers via optical fiber transmission. The transmission medium can be flexibly selected according to the actual application environment to ensure transmission stability.

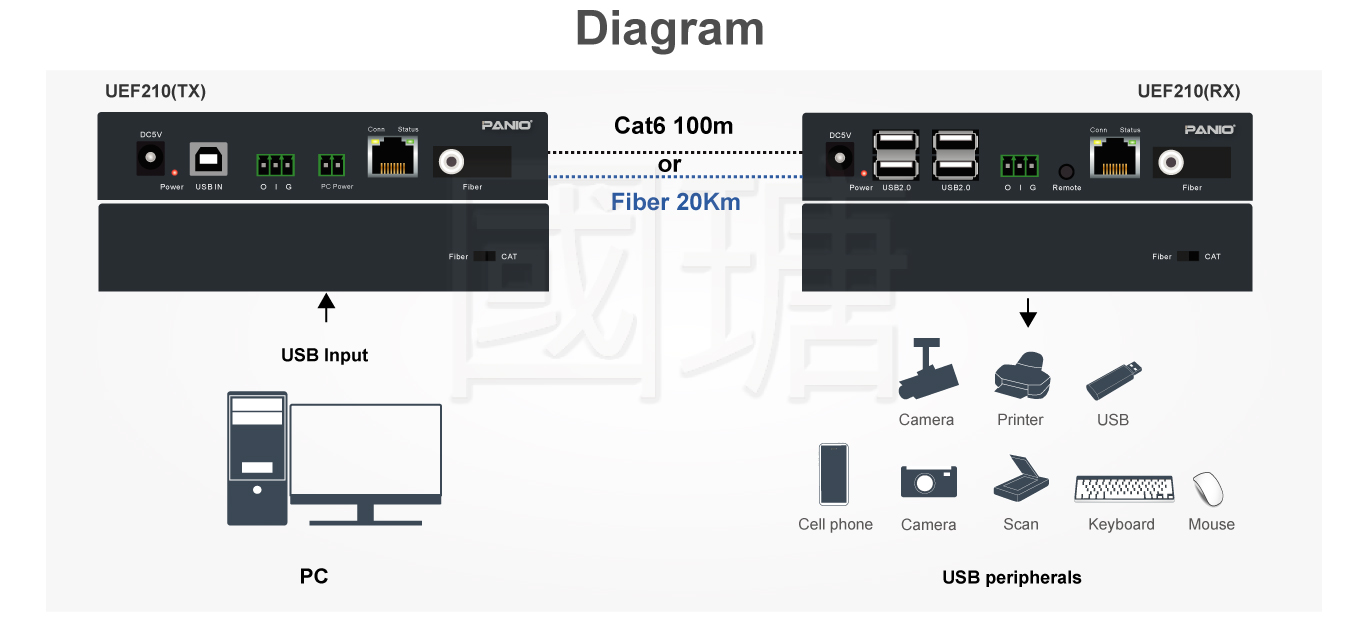

4-Port USB2.0 Signal Fiber Extender | Up to 20km | TAIWAN PANIO
Detailed Description
  • Supports USB2.0 signal transparent transmission, as well as TRG signal transmission and low-speed serial data transmission.
  • Supports remote host power on/off, with full control right in the hands of personnel at the receiver end.
  • Optical fiber connection requires FC single-mode single-core optical fiber cable, and network connection uses Cat5e/Cat6 standard cables to ensure transmission stability, with easy installation and no complicated settings required.
  • Adopts pure hardware design, featuring convenient deployment and plug-and-play operation, without the need to install any additional drivers or software.

Specification

Item Detailed Specification
Transmitter Interface USB 2.0 × 1, TRG × 1, 2Pin PC Power Switch × 1
Receiver Interface USB 2.0 × 4, TRG × 1, PC Power Switch Button × 1
Transmission Interface RJ45 + FC (Optical Fiber Interface)
Transmission Distance RJ45: 100m; FC: 20km
Power Supply DC 5V
Recommended Operating Temperature 0~60°C
Storage Temperature -20~70°C
Humidity 0~80% RH, Non-condensing

Important Notes

  • Please use certified USB 2.0 cables to connect signals to ensure optimal transmission performance and stability.
  • To avoid potential compatibility or performance issues, it is strongly recommended not to daisy-chain uncertified or non-standard devices.
  • To maintain long-term stability and optimal quality of the product, please use the certified original power adapter.
  • If you need to use this product with other special equipment, please inform us in advance so that we can assist in confirming compatibility and avoid unnecessary troubles.
  • Please use FC single-mode single-core optical fiber cable to connect both ends of this product to ensure correct signal transmission.
  • This product is designed for USB signal extension and does not support connection to network switches.

Package Contents

  • 1 X UEF210-T Transmitter
  • 1 X UEF210-R Receiver
  • 1 X 5V/2A Power Adapter
  • 1 X User Manual
