UW3420


2x4 USB 3.2 Gen1 Auto Switch

Support 2 computers sharing 4 USB devices


Products / USB Switch

High-Speed USB 3.2 Gen1

Supports up to 5Gbps transmission rate, fully backward compatible with USB 2.0/1.1 devices.

Automatic Switching

Automatically switches to the active host when it detects signal input, ensuring seamless user experience.

Multiple Control Options

Supports panel buttons and RS-232 commands for flexible switching across various applications.

High-Power Output

Each USB port provides up to 5V/1A power, ensuring stable operation for most USB devices.

Plug and Play

No driver required. Ready for immediate use with any modern Windows, macOS, or Linux system.

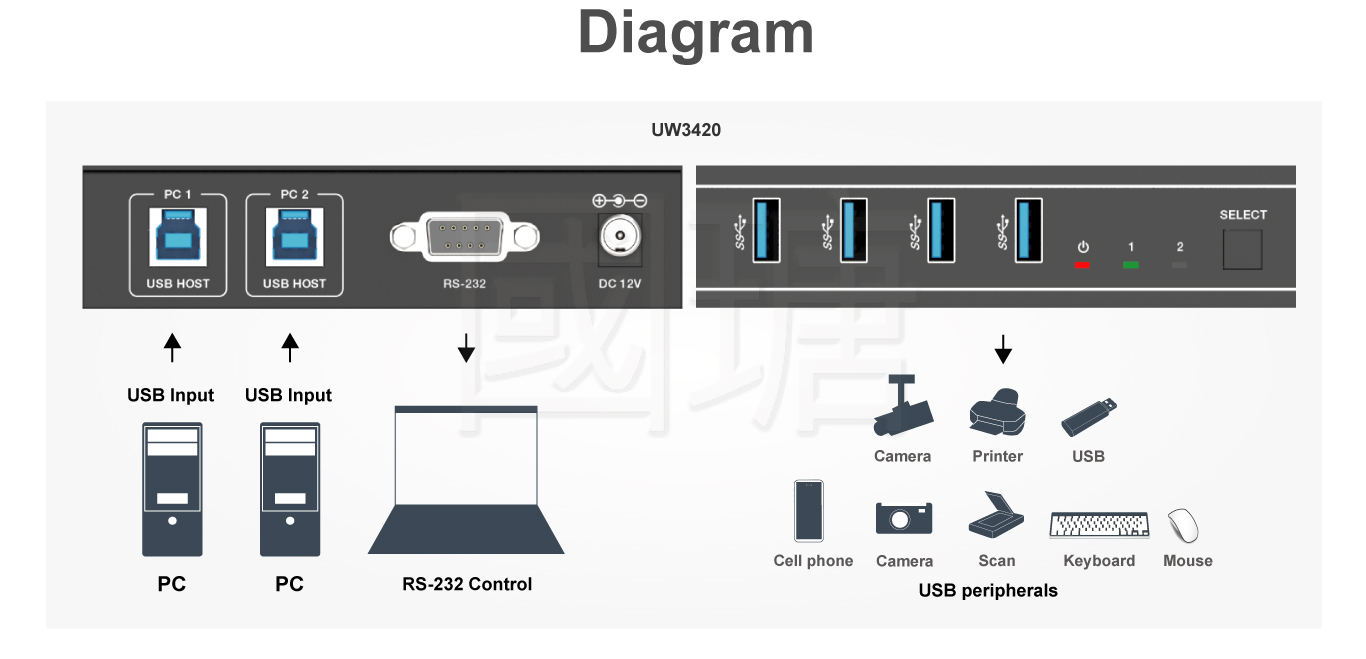

UW3420 USB 3.2 Gen1 Auto Switch Wall Plate

Features

  • Supports USB 3.2 Gen1 5Gbps high-speed data transfer
  • 2 hosts share 4 USB devices automatically
  • Plug and Play, no drivers required
  • Supports overcurrent protection for safer usage
  • Each USB port supports 5V/1A output
  • Built-in LED indicators show active host
  • Built-in automatic host switching logic
  • Elegant wall panel design with concealed wiring
  • Supports various USB devices like mouse, keyboard, printer, camera

Specifications

Model Name UW3420
Host Connection 2 x USB Type-B
Device Connection 4 x USB Type-A
USB Standard USB 3.2 Gen1 (Backward compatible with USB 2.0/1.1)
Max Transmission Rate 5Gbps
Power Output 5V/1A per port
LED Indicator Displays current active host
Installation Flush-mount wall plate
Dimensions 86 x 86 x 38mm (L×W×H)
Weight 180g

Note

  • Use only certified USB 3.2 Gen1 cables to ensure full performance
  • Use only the included certified power adapter
  • If connecting with other integrated systems, please contact us to verify compatibility

Package Contents

  • 1 x UW3420 main unit
  • 1 x 12V 1.5A power adapter
  • 1 x User manual
