The Next-Gen 4x4 USB 3.2 Matrix Switcher
4 USB Host Inputs, 4 USB Device Outputs | 5Gbps Data Rate | Plug & Play | Web GUI Control
UW3440_W
Products / USB Matrix
Key Features
4×4 USB Matrix Sharing
Enables 4 host computers to share 4 USB 3.2 Gen 1 devices through a single compact chassis, eliminating the need for separate KVM units and simplifying multi-PC workstation layouts.
USB 3.2 Gen 1 — 5Gbps
Full USB 3.2 Gen 1 compliance delivering up to 5Gbps data transfer rate, ideal for high-bandwidth devices such as USB docking stations, HD cameras, and external storage.
Backwards Compatible
Compatible with USB 2.0 and USB 1.1 devices. Supports USB Multiple Transaction Translator architecture for reliable mixed-speed device operation.
Plug & Play — No Drivers
True plug-and-play operation with no drivers or external power adapter required for connected USB devices. Multiplatform support across Windows, Linux, and Mac.
Multiple Control Options
Front panel buttons, IR remote, RS-232, TCP/IP, and Web GUI. LED indicators clearly show which host is currently active for each USB device port.
Over-Current Protection
Built-in over-current protection on every USB device port with 5V/1.5A output, safeguarding both connected devices and the matrix from electrical faults.
Why Choose UW3440_W?
▸ All-In-One Compact Design
Compact metal enclosure (270×166×30mm) with bundled USB cables included in the box, reducing cable clutter and saving the extra cost of purchasing USB cables separately.
▸ 8 Preset Scenes
Save up to 8 matrix configurations as named presets via Web GUI or API command. Recall any preset instantly to switch the entire device-host routing in a single action.
▸ Intuitive Web GUI
Browser-based Web GUI provides full control over matrix switching, presets, USB port naming, network settings, account passwords, and firmware updates — no software installation required.
▸ Independent Per-Device Switching
Each of the 4 USB device ports can be independently routed to any of the 4 hosts. Press the front panel button to cycle through hosts H1–H4 for each device.
▸ ESD Protection Built-In
IEC 61000-4-2 compliant ESD protection: ±8kV air-gap discharge and ±4kV contact discharge, ensuring reliable operation in demanding office and conference environments.
▸ Standby & Panel Lock
Long-press the power button to enter standby mode. Front panel buttons can be locked via Web GUI or API to prevent unintended switching in shared meeting rooms.
Detailed Specifications

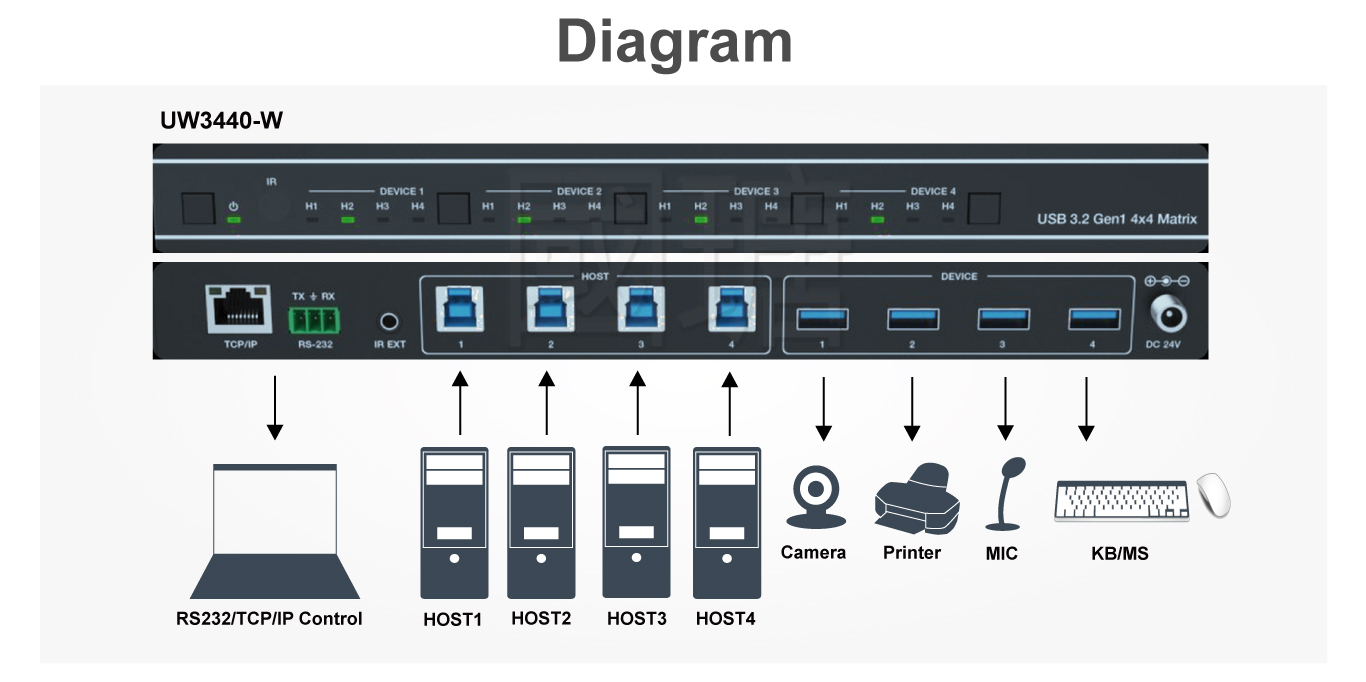

- 4×4 USB 3.2 Gen 1 matrix with 4 USB-B host ports and 4 USB-A device ports — every host can access every device.
- USB 3.2 Gen 1 compliant, supporting data transfer rates up to 5Gbps; backwards compatible with USB 2.0 and USB 1.1.
- USB device ports provide 5V/1.5A output power with over-current protection — suitable for U disks, keyboards, mice, and webcams.
- Transmission distance of 3m / 9.8ft for USB 3.2 Gen 1 5Gbps signals over passive cable.
- LED indicators on the front panel clearly show which host is currently active for each USB device port.
- Supports USB Multiple Transaction Translator architecture for reliable operation with mixed USB 1.1/2.0/3.2 devices.
- Plug-and-play operation — no drivers required. Multiplatform support across Windows, Linux, and Mac.
- Five control methods: front panel buttons, IR remote, IR EXT receiver cable, RS-232, TCP/IP, and Web GUI.
- RS-232 baud rate configurable: 4800 / 9600 / 19200 / 38400 / 57600 / 115200 (default 115200).
- Default network settings: Static IP 192.168.0.100, TCP/IP port 8000, Telnet port 23.
- 8 preset scenes for instant matrix configuration recall via Web GUI or API.
- Note: USB 3.2 Gen 1 ports do NOT support DisplayPort™ Video (DP Alt Mode) or USB Power Delivery (PD).
- Compact metal enclosure: 270mm × 166mm × 30mm, 1.16kg, with mounting ears included.
Ideal Applications
UW3440_W delivers a compact, reliable solution for any environment where multiple computers need to share USB peripherals such as cameras, microphones, soundbars, and keyboard/mouse sets.
Video Conferencing Rooms
Share a single USB camera, conferencing soundbar, and table microphone between multiple host PCs running different conferencing platforms.
Hot-Desking & Shared Workstations
Allow up to 4 PCs to share a common keyboard, mouse, and webcam set, simplifying desktop layouts in flexible office environments.
Broadcast & Production Studios
Route USB audio interfaces, capture cards, and HD cameras between production PCs for live streaming and content creation workflows.
Classrooms & Training Rooms
Share USB document cameras, interactive whiteboards, and presenter peripherals between teacher and student PCs without re-cabling.
Healthcare & Medical
Share USB imaging devices, scanners, and input peripherals between diagnostic workstations in clinics and consultation rooms.
Control Rooms & Operator Desks
Allow a single operator station to control multiple host PCs — switch USB peripherals to any host via IR remote, panel button, or API command.
Technical Specifications
| Specification | UW3440_W |
|---|---|
| Model | UW3440_W |
| Matrix Size | 4×4 USB 3.2 Gen 1 Matrix |
| USB Protocol | USB 3.2 Gen 1 (backwards compatible with USB 2.0 / USB 1.1) |
| Data Transfer Rate | 5 Gbps |
| Input Configuration | 4 × USB Host [USB 3.2 Gen 1 Type B, 9-pin female] |
| Output Configuration | 4 × USB Device [USB 3.2 Gen 1 Type A, 9-pin female] |
| USB Device Output Power | 5V / 1.5A per port (with over-current protection) |
| Transmission Distance | 3m / 9.8ft for USB 3.2 Gen 1 5Gbps over passive cable |
| Special Note | USB 3.2 Gen 1 ports do NOT support DisplayPort™ Video (DP Alt Mode) or Power Delivery (PD) |
| IR Level | 5 Vp-p |
| IR Frequency | Fixed 38 KHz |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Control Ports | 1 × TCP/IP [RJ45], 1 × RS-232 [3pin-3.81mm phoenix connector], 1 × IR EXT [3.5mm stereo mini-jack] |
| Control Methods | Front panel buttons, IR remote, RS-232, TCP/IP, Web GUI |
| RS-232 Baud Rate | 115200 (default), configurable 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Network | 100M LAN, DHCP / Static IP. Default IP 192.168.0.100, TCP/IP port 8000, Telnet port 23 |
| Scene Presets | 8 presets (save / recall / clear via Web GUI or API) |
| OS Compatibility | Plug-and-play — Windows, Linux, Mac (no drivers required) |
| Web GUI Default Login | Username: Admin / Password: 1234 |
| Housing | Metal Enclosure |
| Color | Black |
| Power Supply | Input: AC 100-240V 50/60Hz; Output: DC 24V/2A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 13.2W (Max) |
| Dimensions (W×D×H) | 270mm × 166mm × 30mm |
| Weight | 1.16 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% – 80% RH (non-condensing) |
| Storage Humidity | 10% – 90% RH (non-condensing) |
⚠ Deployment Notes
- This product contains sensitive electrical components. Use of a surge protection device is highly recommended to protect and extend the life of the equipment.
- UTP connectors must use the direct interconnection (T568B) wiring method — do not cross-connect.
- For USB 3.2 Gen 1 5Gbps transmission, keep passive cable runs within 3m / 9.8ft to ensure signal integrity.
- If the front-panel IR receiving window is blocked or the unit is installed out of infrared line of sight, connect the bundled IR Wideband Receiver Cable to the IR EXT port.
- USB 3.2 Gen 1 ports do NOT carry DisplayPort™ Video (DP Alt Mode) or USB Power Delivery (PD). Connect display and PD devices through dedicated paths.
- When configuring the network, ensure the controlling PC is in the same network segment as the matrix (default 192.168.0.xxx).
- Maintain proper ventilation around the chassis; do not block the side air vents during operation.
📦 Package Contents
- UW3440_W 4×4 USB 3.2 Gen 1 Matrix × 1
- 24V/2A Multinational Locking Power Supply × 1
- IR Remote × 1
- IR Wideband Receiver Cable (1.5m) × 1
- USB Cable (USB 3.0 Type A to Type B, 1.8m) × 4
- 3pin-3.81mm Phoenix Connector × 1
- Machine Screw (KM3*4) × 4
- Mounting Ear × 2
- User Manual × 1
