4X4 HDMI Matrix Switch Extender over IP with RS-232 Audio
|

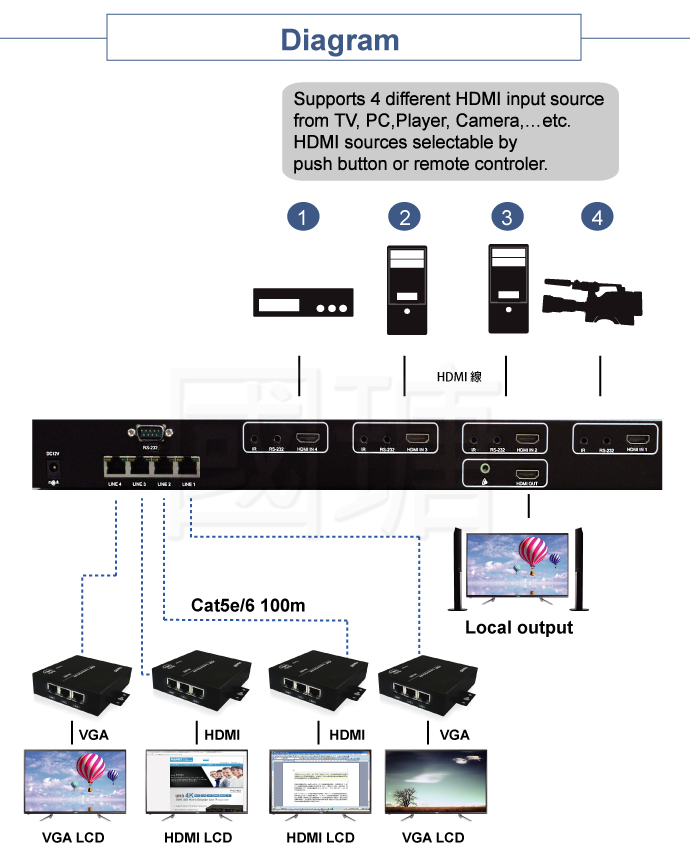

Is the powerful solution for 4X4 HDMI Matrix Switch Extender over IP.. Each receiver is capable of connecting |
| another 2 receivers for further 100m (point-to-pint). The HDMI sources are selectable by front buttons or IR remote |
| control.
Easy and convenient to control the long-distance RS-232 devices over CAT.5e/6 and real-time monitor |
each content of 4 HDMI sources at local site.Without going through the converter, It can mixed complex a variety of interfaces output : HDMI turn VGA, HDMI turn DP, HDMI turn DVI. Applications etc. |
|
|
 |
 |
Supports 4 HDMI sources and the same or different contents
can be shown on remote 4 HDMI displays at the same time. |
|
LED indicators for connection status. |
|
Supports HDMI 1.3, HDCP compliant. |
|
Supports resolution up to Full HD 1080p, 1920 x 1080 @60Hz. |
|
Each receiver (remote) links cascade-chainable 2 receivers. |
|
Extended distance over CAT. 5e/6up to 100m (point-to-point). |
|
HDMI sources selectable by front buttons or IR remote control. |
|
IR (Infrared Remote) enabled. |
|
Supports RS-232 (serial). |
|
Supports Local HDMI monitoring and Audio enabled. |
|
Made in Taiwan. |
|
 |
Mixed Complex a variety of interfaces output |
|
 |
|
 |
 |
 |
 |
| 4 x IR Cable |
4 x RS-232 Cable |
1 X Rack Mount Brackets |
 |
 |
 |
| 1 X DC 12V / 5A Power Adaptor |
1 X Remote Control |
1 X Audio Cable |
|
|
 |
| |
|
|
|
HDMI Output
|
1x HDMI (Female) |
RS-232 Control Port |
4 x3.5Ø jack |
HDMI source |
HDMI Input
|
4 x HDMI (Female) |
Extension Port |
RJ-45
|
Full HD 1080p AV Extension |
RJ-45 |
4 (Line Out) |
Audio |
Supports Stereo Audio |
IR |
Unidirectional |
LED Indicators |
Power |
Red LED |
Link |
Green LED |
Selected HDMI source |
Green LED for selected AV source |
HDMI Source Select Button |
5 |
|
|
Extension Cable Type & Length
|
CAT.5e / CAT.6 Max. Length: 100m(point-to-point)
|
Max. Video Resolution Supported |
Full HD 1080p,1920 x 1080 @60Hz |
Housing material |
Metal |
Operating Temperature |
32 - 122°F ( 0 - 50°C ) |
Power Supply |
External DC 12V /5A Power Adaptor |
Dimension (L x W x H ) |
440 x205 x42 mm |
Humidity |
0% - 80% RH |
|
|
|
