KH2000K 4K HDMI/VGA/USB/RS232/IR/Audio Matrix Extender over IP/Fiber

KH2000K is the UHD KVM over IP extends HDMI,VGA, USB, 2-way analog audio, RS-232, and bi-directional IR over a

Gigabit Local Area Network or Fiber Optic.

The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the

connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously

connect to any Sender unit within the network to create a virtual cross-point matrix of up to 16 Senders and multiple

Receivers .

	Extends 4K HDMI,VGA, USB, RS-232, bi-directional stereo analog audio, and bi-directional IR over IP / SFP
	Matrix switching extension over IP.
	Supports resolutions up to 4096X2160 UHD.
	Supports video wall matrix extension over IP.
	USB 2.0 and backward-compatibility with USB 1.1
	Support both HDMI + VGA input HDMI+VGA output .
	Web UI shows the connection status included all of Tx and Rx.
	Supports multi-consoles to max 255 PCs ( multi-console KVM Extender ) .
	Support IR remote control for video channel setting.
	Field-upgradable firmware via web server interface
	Support HDR pass through .
	Supports just over 65,000 Receivers, depending on the network bandwidth and number of ports of your network switch.
	Supports up to 16 Senders (DIP) or 250 Sender( Command mode )
	Extend by CatX or Fiber
	PoE supported ( Optional ).
	Made in Taiwan.

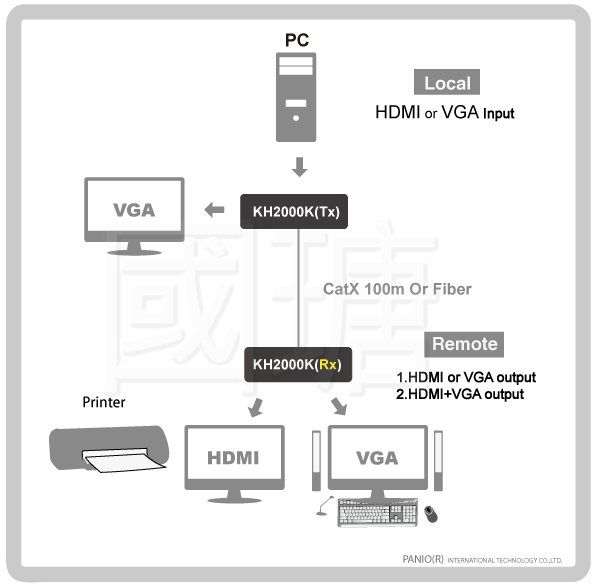

UHD+VGA+Audio+IR+RS-232+USB2.0 over IP / Cat.5e/6 / Fiber Optic with Video wall

Remote can dual signals output 【HDMI/VGA】.

Support Printer connect.

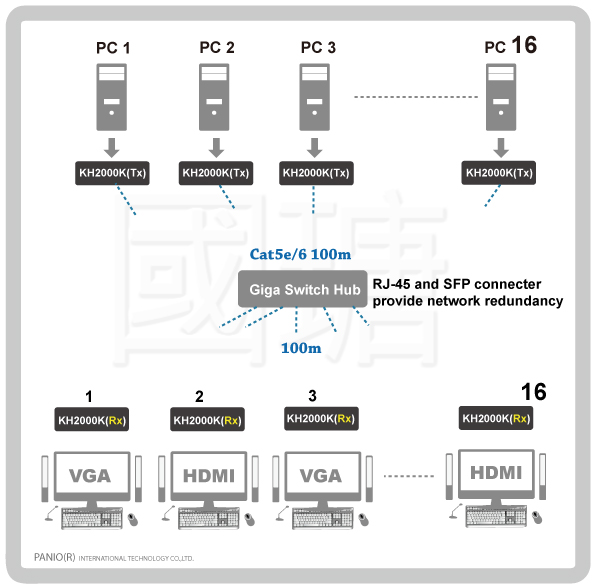

16X16 Diagram:

Video wall supports up to 8x8.

Support IR Remote control.

Up to 16 Groups Multi-Casting.


	KH2000K UHD KVM Extender - Transmitter
	KH2000K UHD KVM Extender - Receiver
	1 x 12V DC power supply
	1 x IR emitter cable or 1 x IR receiver cable ( optional )

MODLE NAME		KH2000K (Transmitter)	KH2000K (Receiver)
Video	Input	HDMI + VGA , female	-
	Output	VGA female ( Loopback )	HDMI Type A 19-pin, female VGA 15-pin, female
Audio	Line-In	3.5mm mini-stereo jack	-
	Line-Out	3.5mm mini-stereo jack	3.5mm mini-stereo jack
	MIC-In	-	3.5mm mini-stereo jack
USB	USB Host	USB Type B, female	-
	USB Device	-	USB Type A, female x 4
RS-232 Connector		DB-9, female	DB-9, male
IR	IR Emitter	3.5mm mini-mono jack	3.5mm mini-mono jack
	IR Extender	3.5mm mini-stereo jack	3.5mm mini-stereo jack
Ethernet		RJ-45, gigabit / SFP Fiber module	RJ-45, gigabit / SFP Fiber module
Mode button		-	tact-type
ID Selector DIP switch		DIP Switch	DIP Switch
LED	Link Indicator	LED, green	LED, green
	Power Indicator	LED, orange	LED, orange
Power	Supply	12V 1A DC	12V 1A DC
	Consumption	10W (max.)	10W (max.)
