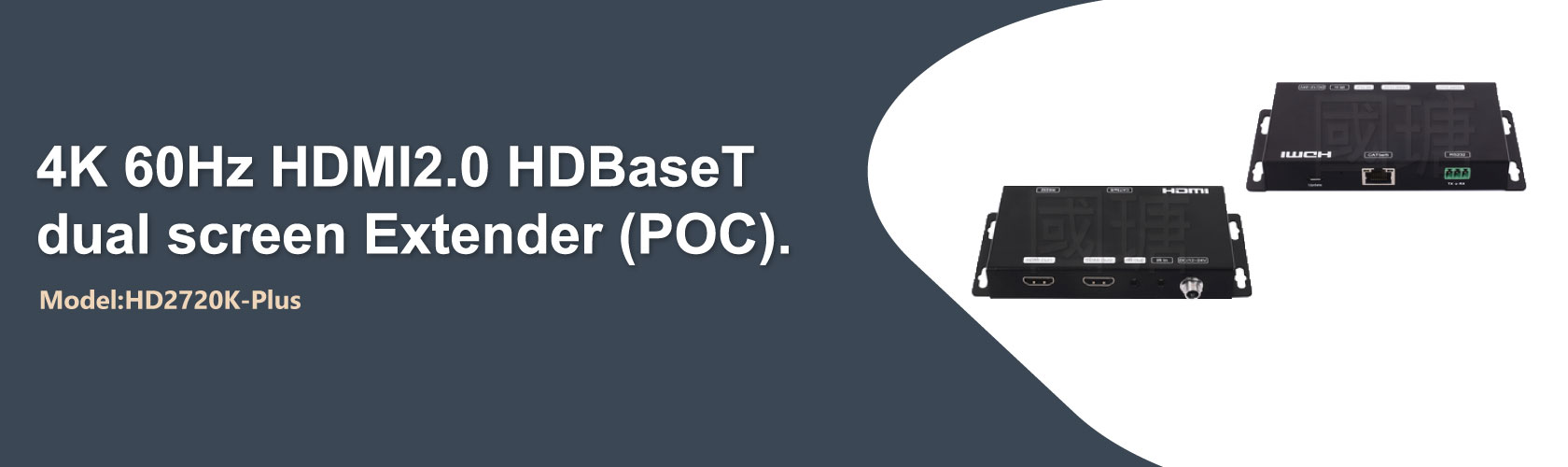

4K 60Hz HDMI2.0 HDBaseT Extender
POC, Dual screen sync output
HD2720K-Plus
About HD2720K-Plus
[HD2720K-Plus] through HDBaseT technology (Cat6 full 8 cores) transfer 4K60Hz HDMI 2.0 signal, no compression and zero delays.
Resolution 1080P 60Hz can reach a distance of up to 70 meters, and 4K can reach a distance of up to 40 meters.
Provide near-end output for near-monitoring, and the far-end can output to 2 HDMI2.0 display devices simultaneously.
Support POC unilateral power supply to solve the inconvenient place of power supply construction; and to ensure the stability of the power supply, the built-in lock-type power connector avoids the risk of falling off.
Through a network cable, the 4K60Hz HDMI 2.0 + RS-232 + IR signal is extended, and the point-to-point is 40 meters (4K) or 70 meters (1080P), using Cat6 cable connection.
Transmitter: Support 1-port HDMI output display.
Receiver: Support 2-port output, synchronous distribution display.
No compression, no delay, suitable for large 4K displays.
Supports HDMI2.0 and HDCP2.2.
Supports RS-232 and IR signal bidirectional transmission.
Supports POC unilateral power supply.
To ensure a stable power supply, built-in lock-type power connector.
Supports resolutions up to 4K @ 60Hz YUV 4: 4: 4, 18Gbps bandwidth, HDR10, 3D.
Note: Please use Cat6 / 7 full 8 core network wiring.
1 X DC 24V (Power over Cable)
2 X IR Cable
2 X Phoenix Connector
1 x User Manual
| MODEL NAME | HD2720K-Plus |
|---|---|
| Transmitter port | 1 x HDMI2.0 in / 1 x HDMI2.0 out / 1 x HDBaseT / 2 x IR / 1 x Phoenix RS232 |
| Receiver port | 2 x HDMI2.0 out / 1 x HDBaseT / 2 x IR / 1 x Phoenix RS-232 |
| HDMI signal | HDMI2.0, Compatibility HDCP 2.2 |
| Video Resolution | 480i / 576i / 480p / 576p / 720p / 1080i / 1920 x 1080p up to 60Hz / 3840/4096 x 2160 up to 60Hz |
| Bandwidth | 18Gbps |
| Audio | Supports DTS-HD, Dolby-HD |
| Bi-directional IR | 3.5mm |
| Bi-directional RS232 | Phoenix plugs for RS232 |
| Dimension | 139.4 X 66.8 X 20 (Tx or Rx) |
| Power Supply | DC 24V |
| Housing | Metal enclosure |
| Operation temperature | -10~55°C |
| Mass (Main unit) | 0.7Kg / 1.54lb (Pairs) |

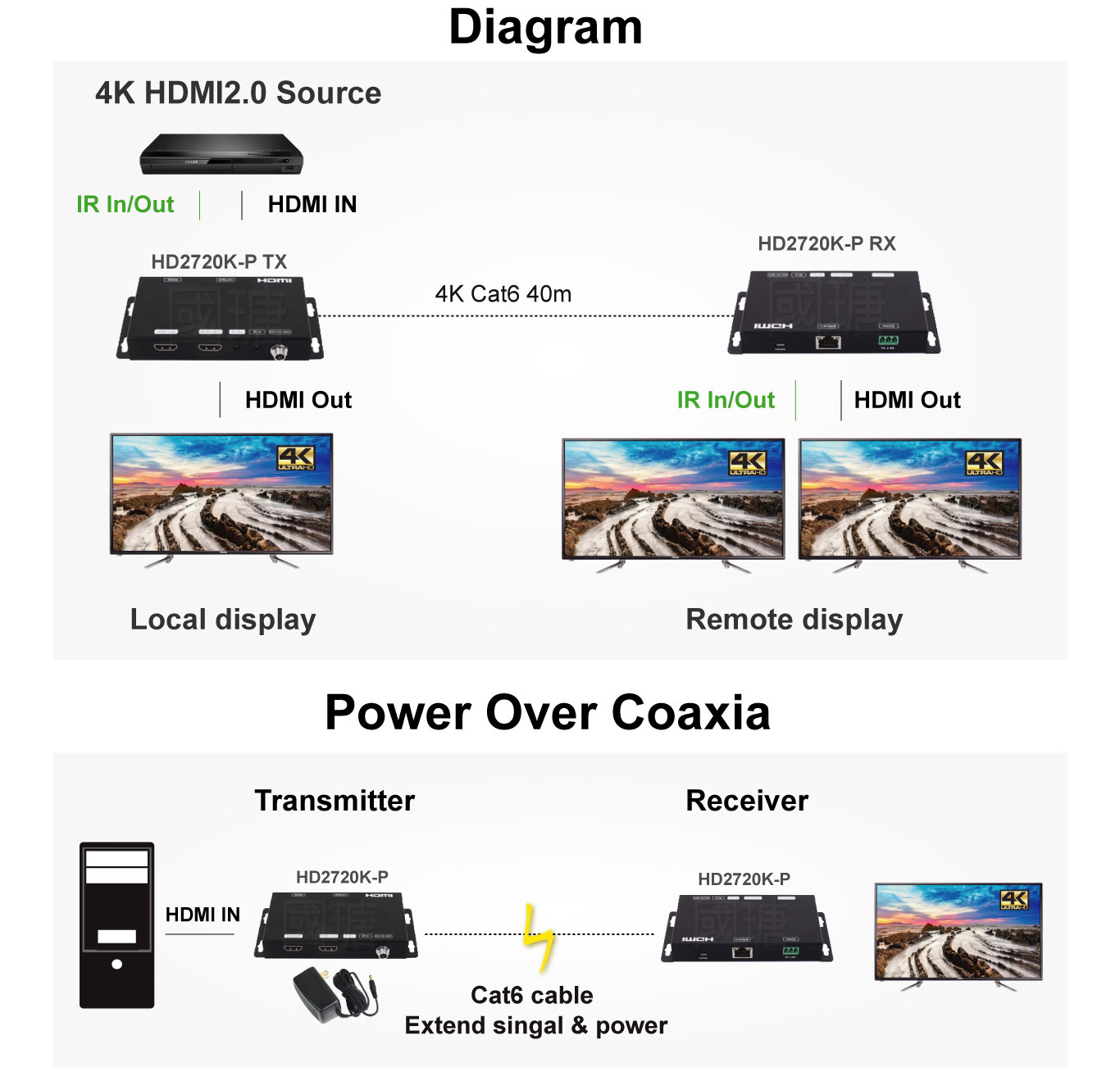

Diagram
