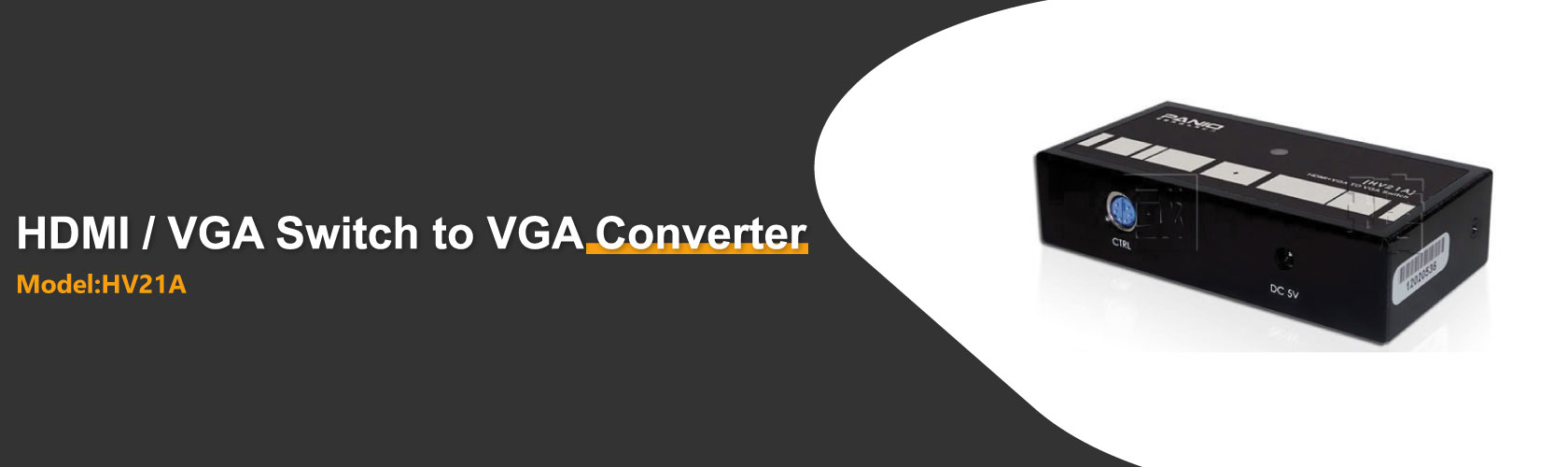

HDMI / VGA Switch to VGA Converter
Support 3.5mm
HV21A
About HV21A
【HV21A】 is a HDMI / VGA switch to VGA signal converter. It also includes audio source output conversion, and has a selection switching function to switch between 1 set of VGA signals and 1 set of HDMI signals, used to display on computer screen, TV or projector.
Support resolution: Analog Signal 2048 x 1536@60Hz (Max); Digital signal 1080P (Max), support EDID / HDCP .
Convert HDMI signals to VGA signals and with audio source output.
With a switch function, one set of VGA analog signals and one set of HDMI digital signals can be switched to one VGA analog signal display.
Support 3.5mm audio.
The resolution is VGA up to 2048 x 1536 @60Hz (Max), HDMI up to 1080p (Max).
Support EDID.
Made in Taiwan, High-quality guarantee
1 x DC 5V
| MODLE NAME | HV21A |
|---|---|
| Input port | 1 x HDMI, 1 x VGA, 1 x 3.5mm |
| Output port | 1 x VGA, 1 x 3.5mm |
| Video Resolution | HDMI: 1080P@60HZ (Max)、VGA: 2048 x 1536@60Hz (Max) |
| Operating temperature | 0°C ~ 50°C |
| Humidity | 0 ~80% RH, NC |
| Weight | 330g |
| Material | Metal |
| Power Supply | DC 5V1A |
| Dimension ( L x W x H ) | L113 X W62 X H29 mm |

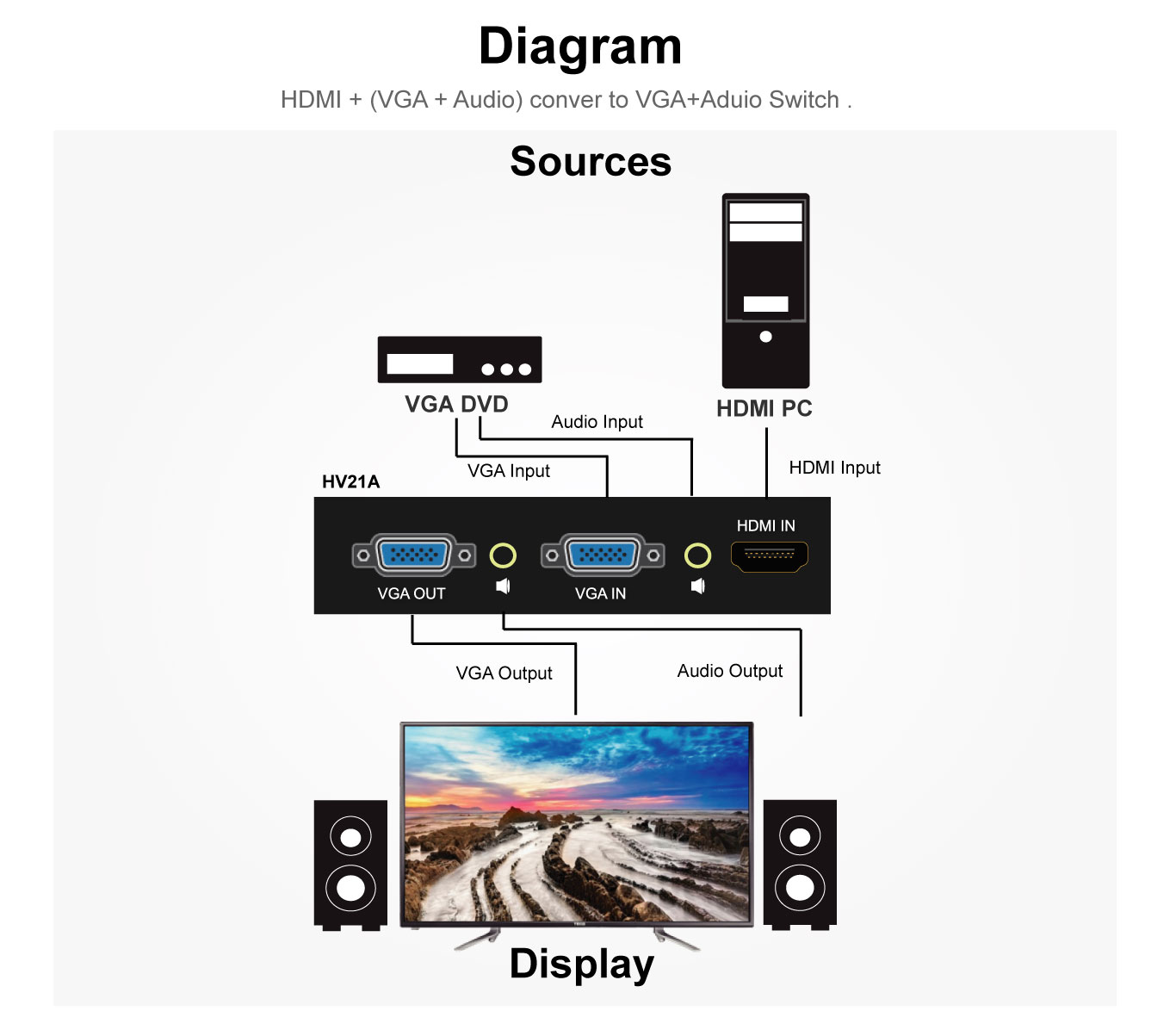

Diagram
