PDU - 230V
Support timing remote device switching power supply function.
PS2308-Pro
PANIO PS2308-Pro is an 8-port remote power management device. Users only need to click the button on the smartphone or computer webpage to remotely control the power of the device.
This product has a high degree of security, users can remotely control the power consumption situation through the network, such as the power supply of key equipment, factory burner room, automatic control machine, server, router and so on.
In addition, when there is a problem with the device, the user can cut off the power immediately at the remote site to stop the operation, reducing the time for personnel to repair.
This type of product supports the power supply function of timing remote equipment.

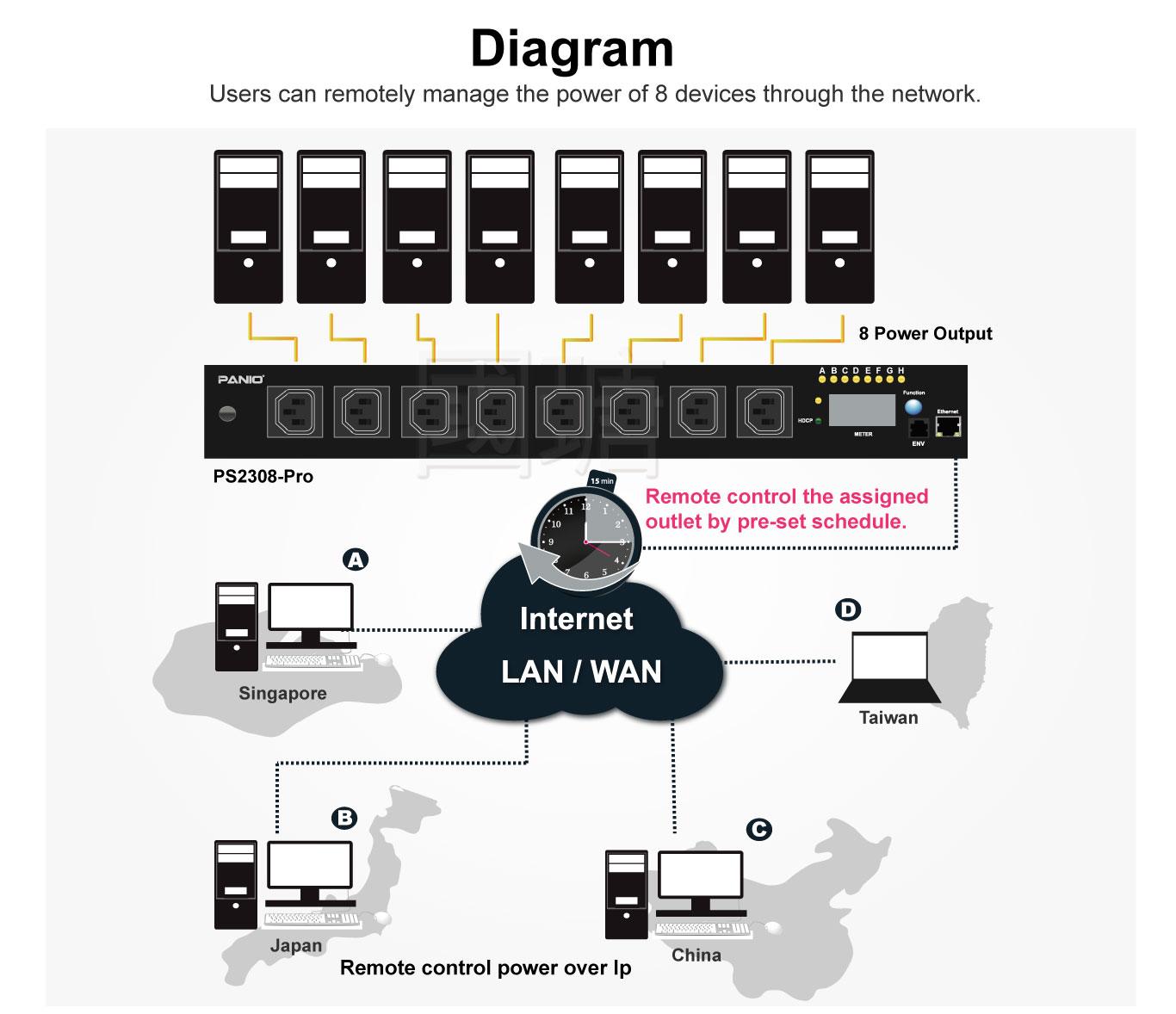

Through Internet devices, you can monitor and manage the power of 8 connected devices.
Built-in web server; you can directly view the real-time power consumption of the digital socket.
Support timing remote device switching power supply function.
Support power on in order of the boot.
Provide SNMP MIB, network management system directly integrated monitoring.
Provide central control software, user-friendly operation interface, easy to monitor; can manage a large number of digital plug-in power usage status.
Easy to set up, the display can directly read the URL location.
Free centralized monitoring software, real-time monitoring of a large number of plugs, providing power records and power consumption curve.
When an abnormal power event occurs, the system administrator can be notified to deal with it through an audible alarm, e-mail, and Trap system.
Overload protection: When the power consumption is overloaded, the circuit breaker will automatically trip to avoid danger and protect power safety.
Support the protocol ICMP, ARP, IP, TCP, UDP, DHCP, HTTP, NTP, SNMPv1.
It can be easily installed into the 1U space of a standard 19-inch rack.
With FCC, CE, UL safety certification.
Made in Taiwan with stable quality.
Note: Please pay attention to the specifications of the power socket and plug, which are different from the US regulations. If you need to convert, please contact our staff.
1 x C19 to C20, 3M Power Cord
1 x User Manual
1 x CD
| MODEL NAME | PS2308-Pro |
|---|---|
| Output socket | 8 groups IEC320 C13 |
| Input plug | Input IEC320 C20 socket, power cord C19 to C20, 3 meters |
| Overload protection | Resettable circuit breaker (UL1077) |
| Dynamic URL acquisition | Display 1 x green LED |
| Output status | 8 x green LED |
| Network interface | RJ45 Ethernet |
| External temperature and humidity sensor | RJ11 plus purchase |
| Socket recognition | 1 digit, seven-segment display |
| Ammeter | 3-digit, seven-segment display Measurement range: 0A ~ 20A Resolution: 0.1A Accuracy: +/- 2% + /-0.1AMP |
| Whr | .001kWh ~ 99999.999kWh, (+/- 1% @ 50W ~ 8000W) kh = 1.0 |
| Current measurement | +/- 2% + /-0.1A @ 0.2A ~ 20A |
| Working voltage | 230V |
| Voltage | 200-240V |
| Frequency | 50 / 60HZ full range |
| Maximum output current | 16 Amp |
| Load capacity | 3680 VA |
| Working temperature | 0 ～ 45°C |
| Operating humidity | 0% ~ 90% |
| Dimensions | 432 x 125 x 44 mm |
| Weight | 2.8 kg |
| Certification | CE, FCC |
