(HDMI/DVI/VGA/YPBPR/CVBS+LR) Over 1 Core Single Model Fiber Optic Extender

CM5500F is the latest 1 core single model fiber optic extender. It transmits the universal (HDMI/DVI/VGA/YPBPR/CVBS+LR) video and audio signals up to 10km (32808ft), the maximum distance can up to 80km with different optical transceivers. No compressing, no latency, no losses during the whole transmission process and realize a perfect image transmission.

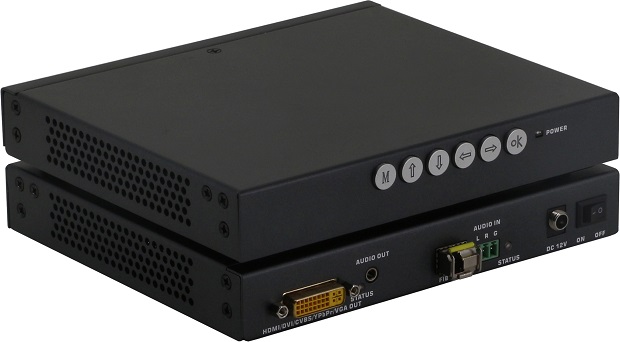

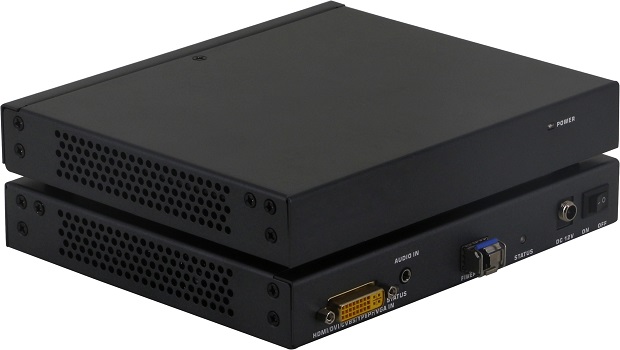

CM5500F consists of two parts:CM5500T is the transmitter, it will convert the HDMI/DVI/VGA/YPBPR/CVBS+LR signal to 1 core fiber signal; CM5500FR is the receiver, it will convert the fiber signal back to the HDMI/DVI/VGA/YPBPR/CVBS+LR and show on the displays.

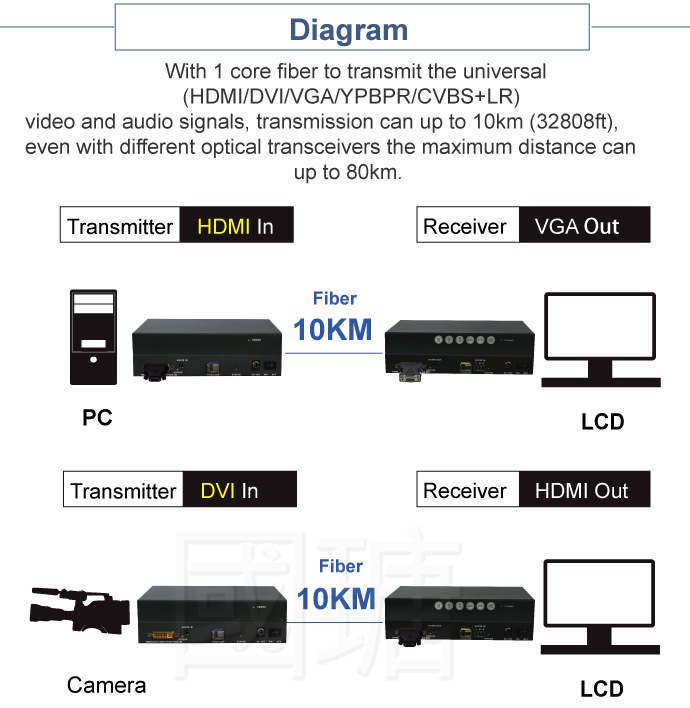

With 1 core fiber to transmit the universal (HDMI/DVI/VGA/YPBPR/CVBS+LR) video and audio signals,

transmission can up to 10km (32808ft),

even with different optical transceivers the maximum distance can up to 80km.
With DVI-I interface and different adapters to realize the universal signal inputs and outputs.
Supports any resolutions under HDMI/DVI/VGA/YPBPR/CVBS model, the maximum can be

1920×1200@60Hz and 1080p60Hz .
With only fiber optic design, no RFI/EMI radiated interference and realize real electric isolation.
Automatically adapt with all kinds of application environment, no need any adjustments and no losses

during the image transmission.
With standard SFP+ packaging transceiver design, it can be customized according to the real needs.
Supports automatically audio embedded and de-embedded function..





Transmitter


Receiver


2 X DC 12V

MODLE NAME CM5500F Transmitter CM5500F Receiver
 Input
1*HDMI/DVIVGA/YPBPR/CVBS ; 1*Audio
  1*LC connector fiber
Output

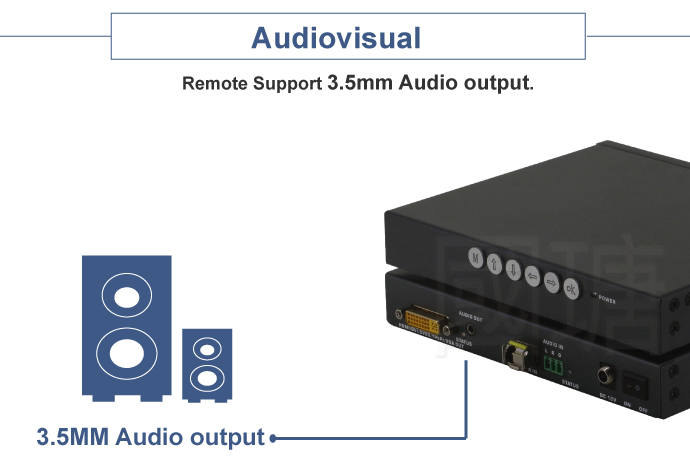

 1*LC connector fiber input 1*3 pin Audio
1*HDMI/DVIVGA/YPBPR/CVBS ; 1*Audio
Protocol
VESA, HDTV
Transmission Distance
Maximum distance can up to 80km
Video Resolution
640*480p@60Hz---1920*1200@60Hz(VESA Standard)
480i-1080p60Hz(HDTV Standard)
Power Supply
AC：100-240V 50/60Hz 1.5A Max  DC：12V 1500mA
Dimension ( L x W x H )
195mm/175mm/27mm
Unit Weight
400g
Housing material
Metal
Operating Temperature
32~ 122°F  (0~ 50°C )
Humidity
10%~90%RH
