4K HDMI / RS-232 / IR over HDBaseT Extender-With POC / Audio in & out |
[HD700]

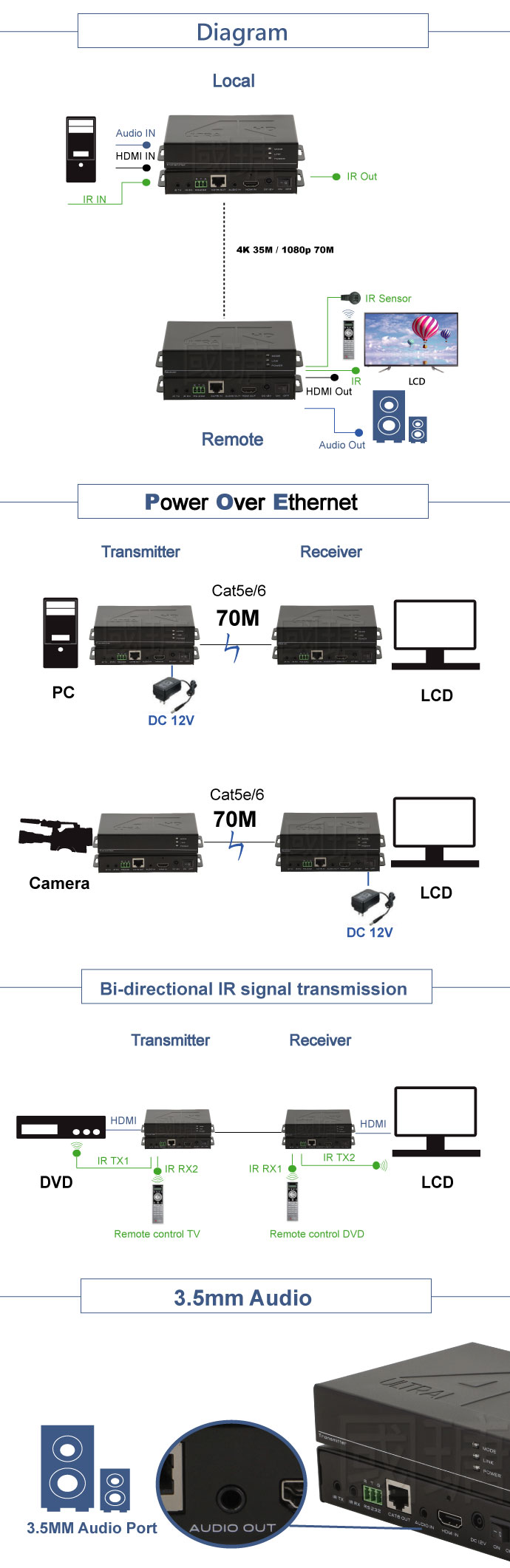

is an HDBaseT technology extender, it supports no compression, no losses, and no latency HDMI signal transmission. It can work with other HDBaseT equipment, such as Sony HDBaseT projector. All the signals are transmitted by one single CAT5E/ CAT6/ CAT7 cable, for 1080P it can transmit to a distance of 70m(230ft), for 4K30Hz, it can up to 35m(115ft). Compatible with all the HDTV resolutions, HDCP2.2 protocol. It also supports bi-directional RS232 and IR transmission and realize the long distance control. Supports power over cable, users only need to power one side; it can be popularly used in media conferencing room, school, government, cinema and so on applications. |
|
|
 |
| |
 |
Supports Audio embedded and de-embedded. |
|
HDCP1.4, HDMI1.4 |
|
Supports FULL HD, UHD, 3D, 4K 30Hz |
|
Transmit highest quality audio and video, for 1080p can up to 70M and 4K can up to 35M with Cat6/6a/7 cable. |
|

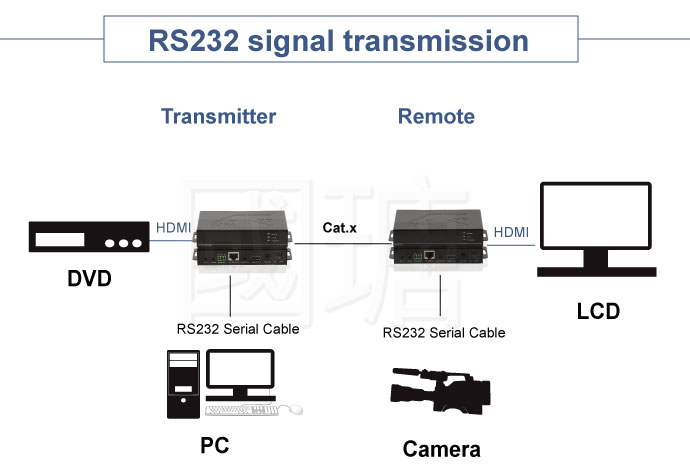

Bidirectional IR/Serial control signal transmission |
|
Power over Cable (POC) locally powered over Cat5e/6 cable at either end. |
|
Supports 7.1 DTS Master HD, Dolby True HD. |
|
Made in Taiwan. |
|
 |
| |
 |
 |
|

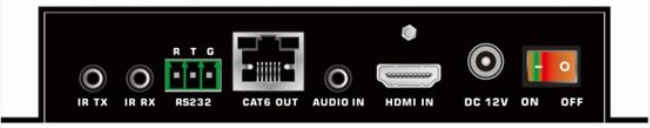

Transmitter |
|
|

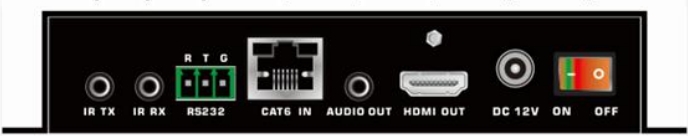

Receiver |
|
|
|
 |
| |
|
|
 |
| |
| MODLE NAME |
HD700 Transmitter |
HD700 Receiver |
Input |
1*HDMI, 1*RS232, 1*IR-TX, 1*IR-RX 1*3.5mm |
RJ-45 |
Output |
RJ-45 |
1*HDMI, 1*RS232, 1*IR-TX, 1*IR-RX 1*3.5mm |
Protocol |
Support HDMI1.4 and compatible with HDCP1.4 |
Color Space |
1080p: 36Bit Deep Color 4K: 24Bit True Color, 4:2:2 |
Bandwidth |
10.2Gbps |
Transmission Distance |
| CAT5e/6 cable: 70m(1080p60Hz)
35m(4K30Hz) |
|
Video Resolution |
1920x1200, 1680x1050, 1360x768, 1280x800, 1920x1080, 1600x900, 1366x768, 1280x720, 1024x576, 1920x1200, 1680x1050, 1360x768, 1280x800, 4096x2160@30Hz, 3840x2160@30Hz |
Power Supply |
External DC 12V / 1.5A Adaptor |
Dimension ( L x W x H ) |
115×84×16 mm |
Unit Weight |
120g |
Housing material |
Metal |
Operating Temperature |
32~ 122°F (0~ 50°C ) |
Humidity |
10%~90%RH |
|
|
|
|
|
