CH1630K


16 Input 16 Output 4K 30Hz HDMI Matrix Switch

Supports Audio Separation Output, 3xRS232, TCP/IP, and APP Control


Products / Matrix Switch

4K 30Hz Resolution Support

Supports a maximum resolution of 3840 × 2160 @ 30Hz.

APP Control

Supports remote control via Android and iOS mobile apps.

3xRS-232 Control

Downstream devices can be controlled through the matrix switcher's RS-232 ports.

Web UI Control

Supports TCP/IP connectivity; access the Web UI via a browser for remote operation.

Audio Separation Output

Supports independent audio output via a 3.5mm audio jack.

Easy 2-Button Switching

Simplified button switching mode: simply press the input and output numbers to complete the switching process.

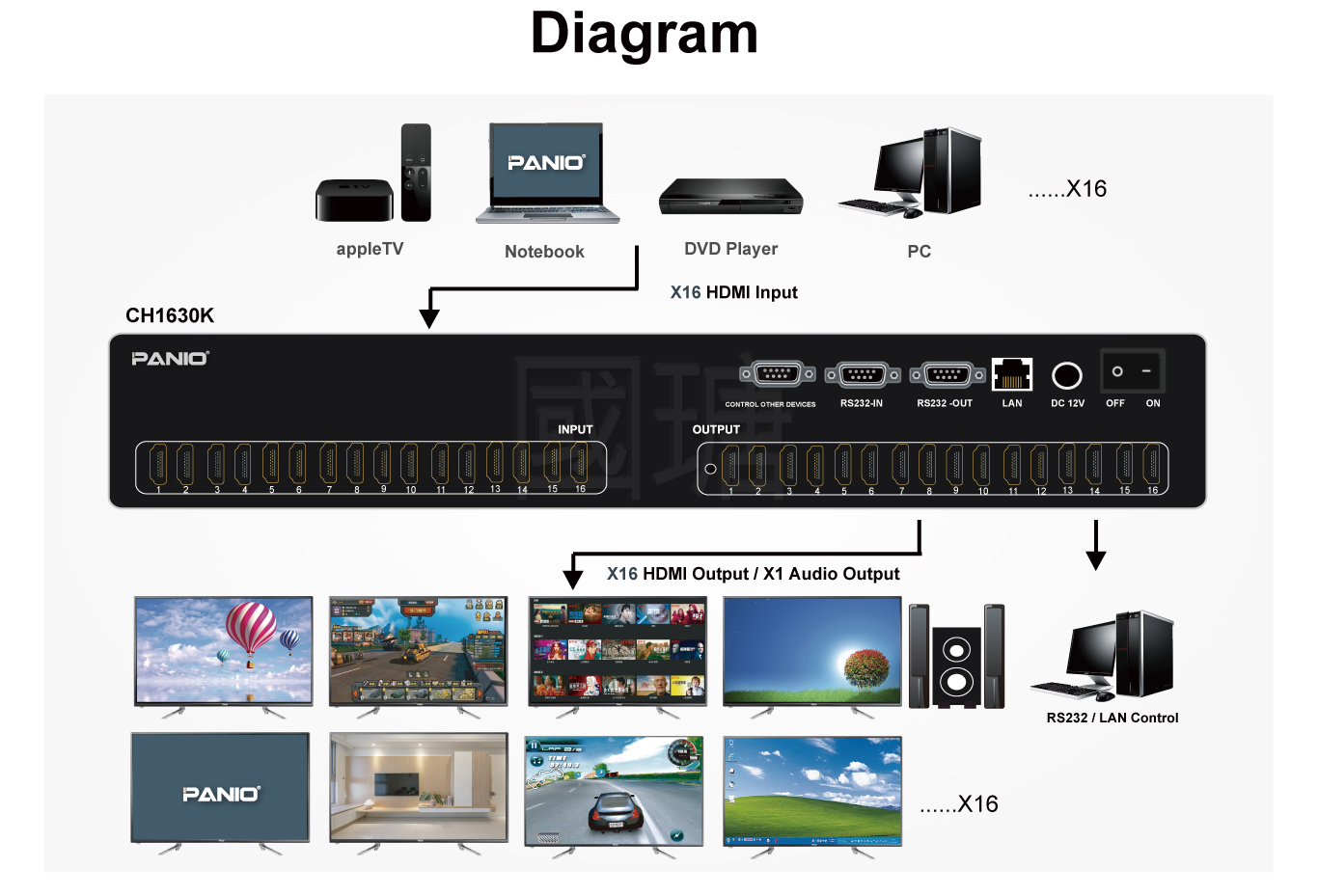

16x16 4K HDMI Matrix Switch
Features
  • 16-input 16-output digital audio and video 4K HDMI matrix switcher.
  • Supports arbitrary signal routing: 1 input to 1 output, 1 input to multiple outputs, or cross-channel selection switching for each port.
  • Supports 4K x 2K @30Hz, 1080P @60Hz, and 1080P 3D @60Hz resolutions.
  • Deep Color support for 48/36/30/24-bit color depth.
  • Supports independent audio separation output for the 1st output port.
  • Supports independent manual EDID configuration for each port.
  • Supports transmission of LPCM 7.1CH, Dolby True HD, Dolby Digital, and DTS-HD Master Audio formats.
  • Two-button control method: press once to select the input device, press again to select the output port; quick cancellation of the selected port is supported.
  • Control methods: front panel buttons, remote control, 3xRS-232, Web UI, and mobile APP (iOS/Android).
  • Allows storage of 8 custom scene presets for quick recall, eliminating the need for one-by-one switching operations.
  • Equipped with broadcast-grade switching chips; image switching is completed via a single chip for higher switching efficiency.
  • Compliant with 19-inch rack mounting standards.
Taiwan PANIO 16x16 HDMI Matrix Switch with Audio Separation, 3xRS232, TCP/IP & App Control

Specifications

Model Name CH1630K
Input Ports 16 x HDMI (Type A Female)
Output Ports 16 x HDMI (Type A Female), 1 x 3.5mm Audio Jack
Maximum Video Resolution 480i, 576i, 480p, 576p, 720p, 1080i, 1080p @24/30/50/60Hz, 1080P 3D @60Hz, 4K @30Hz
ESD Protection Human Body Discharge Mode: ±8kV (Air-Gap Discharge), ±4kV (Contact Discharge)
Control Interfaces 2 x RS-232 (Male), 1 x RS-232 (Female), 1 x RJ-45
Protocol Standards Supports HDMI 1.4b, EDID Management, HDCP
Control Modes Front Panel Buttons, Remote Control, 3xRS-232, TCP/IP, iOS & Android APP
Cable Length Input and output ports support HDMI cables up to 5 meters in length. For longer distances, the use of an extender is recommended.
Power Supply DC: 12V 5A
Power Consumption 34W (Maximum)
Dimensions (L x W x H) 480 x 252 x 44mm
Net Weight 3.5Kg

Notes:

  • Use only certified 4K HDMI cables for signal connection.
  • It is not recommended to daisy-chain uncertified switchers, distributors, converters, or other peripherals that have not been certified by our factory.
  • To ensure stable performance, use only the original certified power adapter provided with the product.
  • Please inform us in advance if you plan to use this device with other peripherals to avoid compatibility issues.
  • For shipping safety, the remote control battery is not included in the package.

Package Contents

  • 1 x CH1630K Main Unit
  • 1 x Remote Control (Battery Not Included)
  • 1 x 12V/5A Power Adapter
  • 1 x User Manual
