CH4100F


4K 30Hz HDMI Optical Extender

Support RS-232, LC module included


Products / HDMI Extender

4K 30Hz resolution

Support 3840 × 2160 30Hz resolution.

RS-232

The control code is transmitted through the RS-232 port.

Long-distance transmission signal

The HDMI+RS232 signal is extended by 10KM through a fiber optic.

EDID-function

Support EDID automatic detection and manual adjustment functions, to solve the problem that the screen size cannot be full-screen flickering.

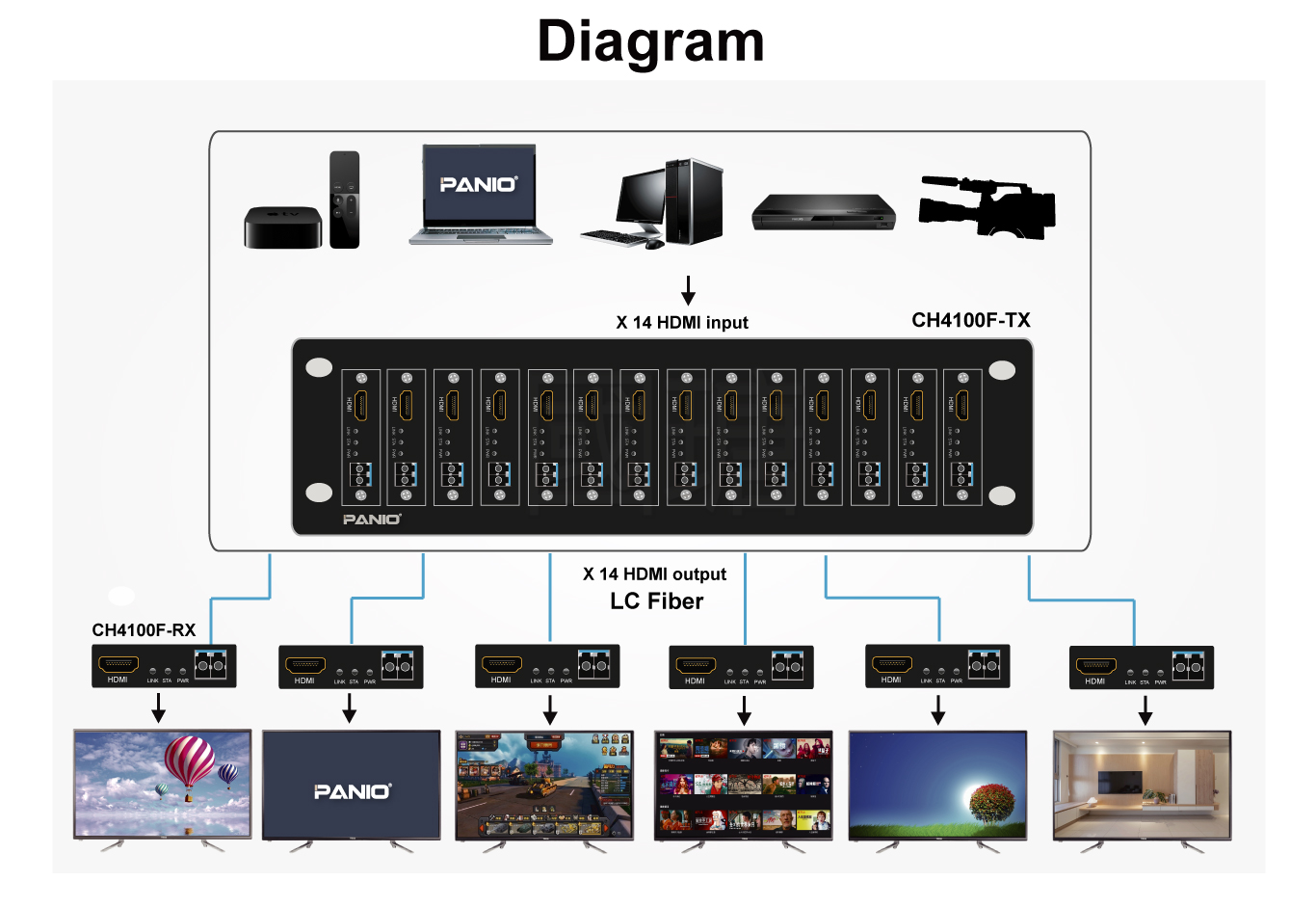

2U chassis for the CH4100F

Capable of holding a total of 14 transmitters or receivers.

4K 30Hz HDMI Optical Extender|TAIWAN PANIO
Feature
  • Support 1080P 3D, 4K 30Hz resolution.
  • The HDMI+RS232 signal is extended by 10KM through a fiber optic.
  • LC module already installed in the extender.
  • Support EDID reading to match a variety of display devices.
  • Support RS-232 transmission.
  • Compatible with HDMI 1.4 HDCP standard.
  • Built-in automatic equalization system, the picture is smooth, clear and stable.
  • Built-in ESD electrostatic protection circuit to protect equipment safety.
  • Support centralized management of extenders, optional add-on 2U chassis.

Specification

Model Name CH4100F
Transmitter 1 x HDMI input, 1 x RS-232, 1 x LC fiber
Receiver 1 x HDMI output, 1 x RS-232, 1 x LC fiber
Protocol HDMI1.4b, Compatible with HDCP and EDID function
Video resolution 4K 30Hz, 1080P 60Hz
Optical Fiber Type Single mode
Transmission distance Up to 10KM under 4K 30Hz.
Power Supply DC 12V1A
Dimensions 94×72×26mm (LxWxH) Tx/Rx
Item Weight 300g Tx/Rx

Note:

  • Please use 4K cable to connect HDMI signal.
  • It is not recommended to connect other brands of switchers, splitters, and converters in series.

Package Contents

  • 1 X CH4100F-Tx
  • 1 X CH4100F-Rx
  • 2 X DC 12V1A
  • 1 X User manual
