CH508


1 in 8 out HDMI AV signal synchronization distribution + extender all-in-one machine

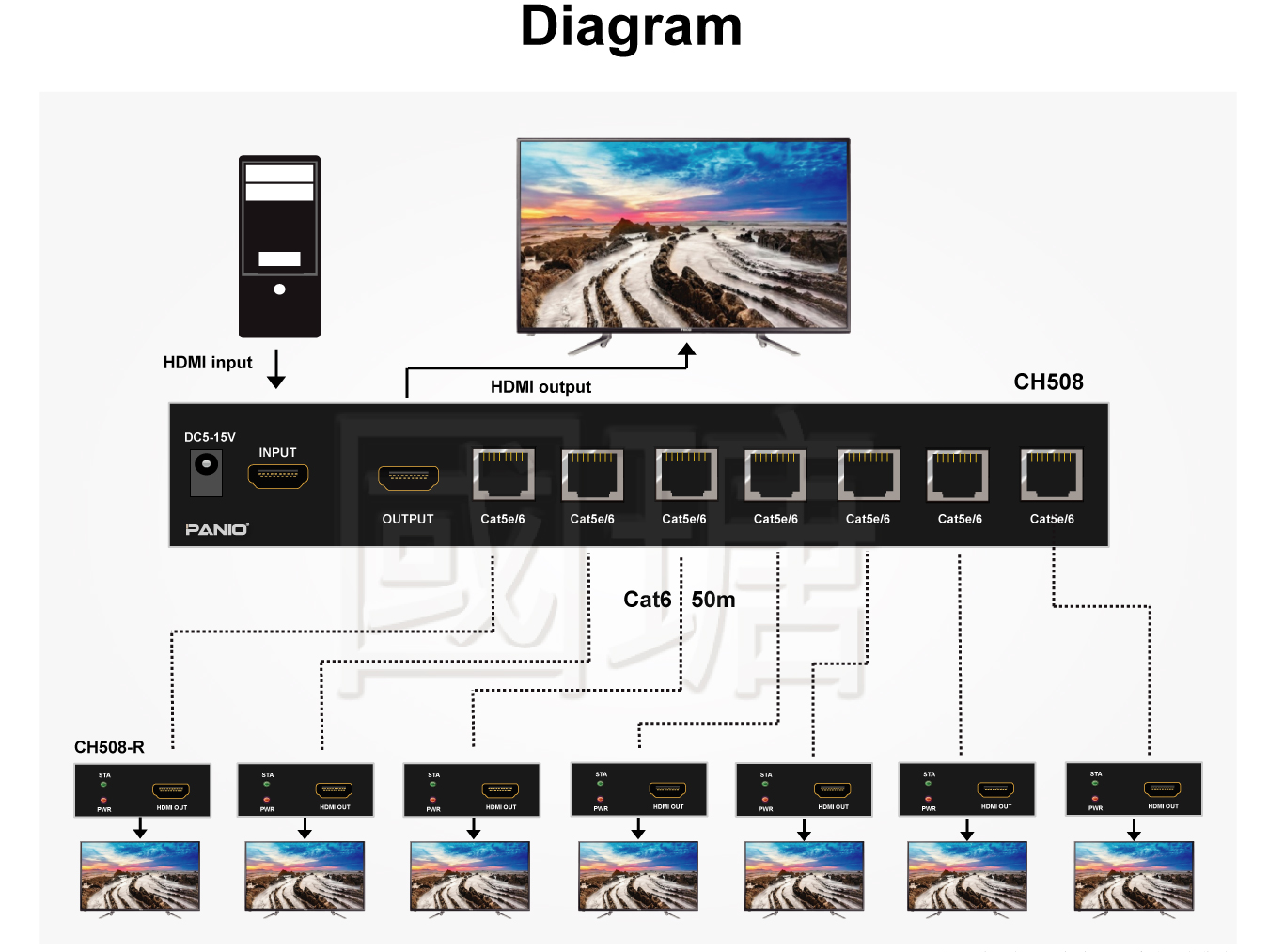

Support 1-channel near-end + 7-channel far-end output, extend 50 meters long distance


Products / HDMI Extender

Network wire transmission

It is transmitted through a Cat5e/6 (8-core) network wire, which can transmit a distance of up to 50 meters, with a resolution of 1080P and support for 3D.

Bifunctional

Simultaneous display + long-distance transmission signal, 1-in 1-out near-end playback + 7-way long-distance playback.

Reduce signal attenuation

Synchronous distribution and extension integration, reduce the matching of extension equipment such as transmission end transformers and cables, etc., to avoid the problem of signal attenuation and incompatibility.

EDID function

Built-in 13 kinds of EDID functions, solve the problem that the screen size cannot be full screen.

POC powered

It can be powered by one side, and the remote end does not need to be connected to a power supply, which can be used in complex environments where power cannot be supplied.

1 in 8 out HDMI AV signal synchronization distribution + extender all-in-one machine
Feature
  • Support 1 x HDMI input.
  • Support 1 x HDMI near-end output.
  • Support 7 x RJ-45 Ethernet ports for remote output.
  • Extend the HDMI signal by 50 meters through the network cable. (Transmit the signal to the receiver CH508-R through the 8-core network cable)
  • Support resolution 1080P @60Hz.
  • Extend the original remote control of the signal source to remote use, such as the remote control attached to the TV set-top box, etc.
  • Built-in 13 EDID functions.
  • Built-in ESD electrostatic protection circuit to protect the safety of all-in-one equipment in an all-round way.
  • Pure hardware design, plug and play, no need to install additional software.

Specification

Model Name CH508
Transmitter port 1 x HDMI input, 1 x HDMI output, 1 x IR output, 7 x RJ45
Receiver port 1 x HDMI output, 1 x IR input, 1 x RJ45
Transmission wire Cat5e or cat6 cable/ 24AWG/ Solid
Supported resolution Up to 1920 x 1080 60Hz
Transmission distance Using Cat6 wire, the transmission distance is about 50 meters, and the transmission distance of Cat5e wire is about 40 meters.
HDMI Cable length Can be connected to a 28AWG HDMI cable with a maximum length of 5 meters. If the length exceeds this length, it is recommended to use an extender to extend the distance.
Power supply DC 12V 2A transmission side power supply
Dimensions Transmitter 257 × 87 × 25mm ( LxWxH ), Receiver 81 × 45 × 23mm ( LxWxH )

Note:

  • To maintain quality stability, please use the original certified adapter.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • Need to use 8-core full-core wire to transmit the signal, the wire composition will affect the extension length.
  • Do not use it in series with the network switch, it will cause the risk of burning the machine and the switch.

Package Contents

  • 1 X CH508 Transmitter
  • 7 X CH508 Receiver
  • 1 X DC 12V 2A adapter
  • 8 X IR cables
  • 1 X User manual
