4K 60Hz HDMI Multi-Window Computer Manager
Powered by Premium Taiwan Technology | 4x3 Matrix | Mouse Roaming | 0-Sec Seamless Switching | Built-in PIP Modes
CQ4310K
Products / Multi-Viewer Switch
Key Features
4K 60Hz Ultra HD Resolution
Maintains crystal-clear image fidelity up to 3840x2160 @ 60Hz. Even when split into a 4-window quadrant, graphics and text remain incredibly sharp.
4x3 Matrix Presentation
Inputs from 4 PCs can be routed to 3 monitors. Monitor 1 & 2 handle complex multi-windows, while Monitor 3 serves as a dedicated full-screen monitor.
Mouse Roaming Technology
Seamlessly control multiple PCs using a single mouse and keyboard. Simply move the cursor across window boundaries to auto-switch KVM control.
0-Second Seamless Switching
PANIO's fast AV routing core ensures instant source toggling without any black screens or signal delay on the primary presentation displays.
Dynamic Window Layouts
Customize meetings instantly with built-in PIP (Picture-in-Picture) and split modes. Supports window moving, zooming, and graphical overlaps.
Pure Hardware Architecture
True plug-and-play operation. All complex multi-window processing and mouse cross-screen setups require absolutely zero software installation.
Why Choose TAIWAN PANIO CQ4310K?
▸ Premium Taiwan Technology
Engineered by a trusted Taiwan brand with decades of R&D expertise. Delivers enterprise-grade stability for mission-critical AV routing tasks.
▸ Custom Scaler Outputs
Supports manual adjustment of 11 distinct output resolutions, effortlessly matching odd-sized industrial monitors or legacy projectors.
▸ 3-Set Scene Recall Memory
Save up to 3 custom window layouts and KVM configurations, allowing presenters to transition complex visual scenes instantly via shortcut buttons.
▸ One-Click Full Screen
During active multi-window split modes, users can simply click on a specific small PIP window to instantly expand it to full-screen view.
▸ Independent Audio Extraction
Features a dedicated 3.5mm analog interface, cleanly separating audio from the HDMI stream for routing into external conference speakers or mixers.
▸ Versatile Control Integration
Command the matrix through front panel keys, IR remote control, mouse boundary roaming, scene shortcuts, or advanced RS-232 serial commands.

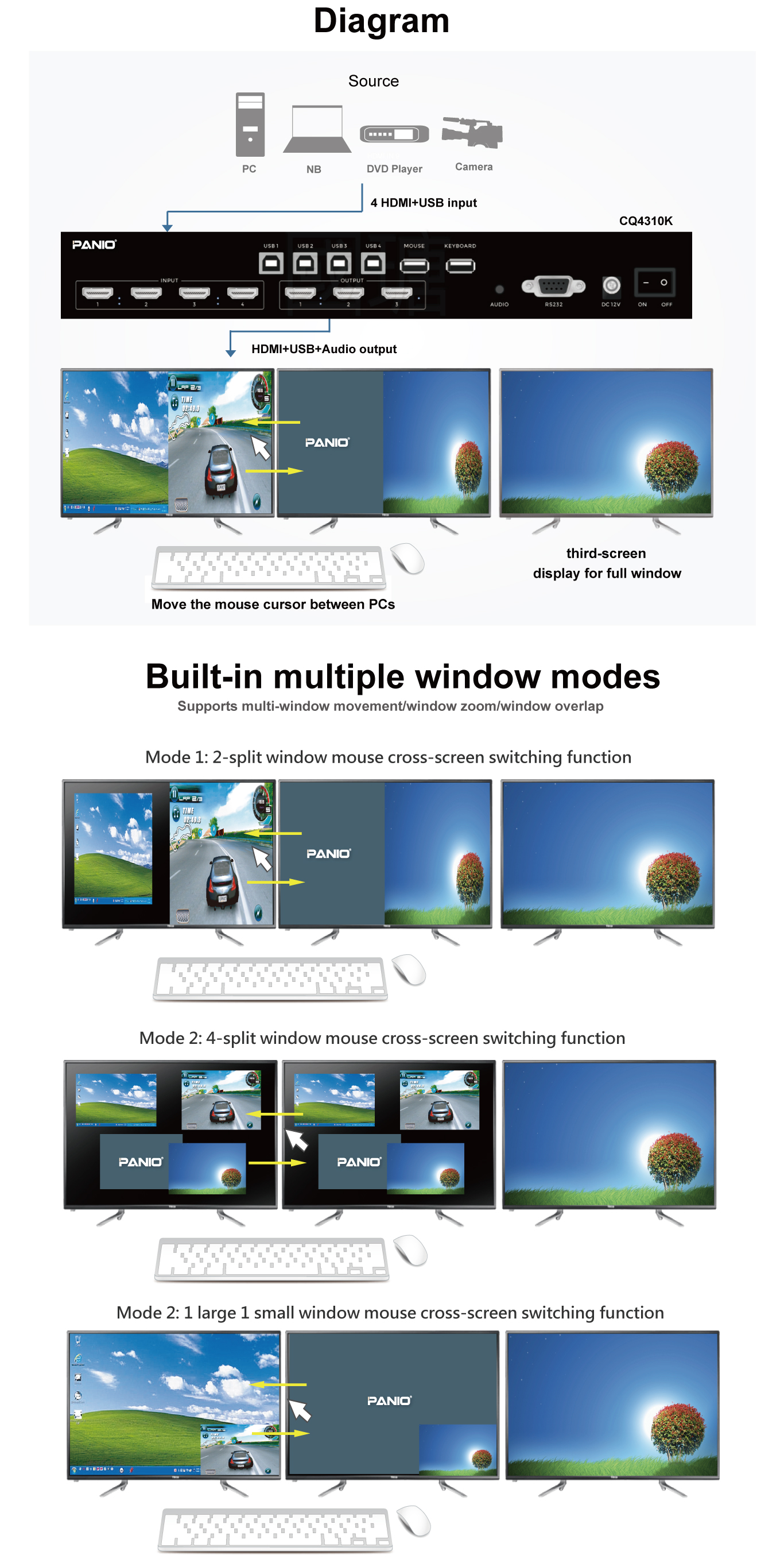

System Capabilities Overview
- Integrates 4-port HDMI video inputs alongside 4-port USB Host connections for comprehensive KVM integration.
- Primary Display 1 & 2: Supports complex multi-window displays or full-window matrix switching. Features 0-second seamless transitioning without visual disruption.
- Secondary Display 3: Operates as a single-view matrix monitor. Can be configured to automatically switch PC screens following the mouse cursor's active location.
- Built-in hardware multi-window algorithms include: 4-split quadrant, 3-split, 2-split (Side-by-Side), 1 Large + 1 Small, 1 Large + 2 Small, and 1 Large + 3 Small PIP overlays.
- Supports synchronous replication across displays, or asynchronous matrix routing (displaying entirely different layouts on Monitor 1 and Monitor 2).
- All multi-window resizing, overlaps, and PC switching workflows can be executed fluidly using just the connected USB mouse.
Ideal Applications
The CQ4310K bridges the gap between high-end AV presentation and IT control, making it perfect for data-heavy collaborative environments.
Executive Boardrooms
Compare quarterly reports from 4 different laptops simultaneously on dual presentation screens while keeping the mouse flow uninterrupted.
Financial Trading Floors
Monitor massive data streams. Stack real-time tickers and analytics in custom PIP layouts without needing multiple dedicated keyboards.
Security Control Rooms
Route multiple DVR/NVR surveillance feeds into customizable grids. Use the 3rd monitor to isolate and track specific high-risk camera zones.
Technical Specifications
| Specification Parameter | CQ4310K Details |
|---|---|
| Model Name | CQ4310K |
| Technology Core | Taiwan Technology Brand (TAIWAN PANIO) |

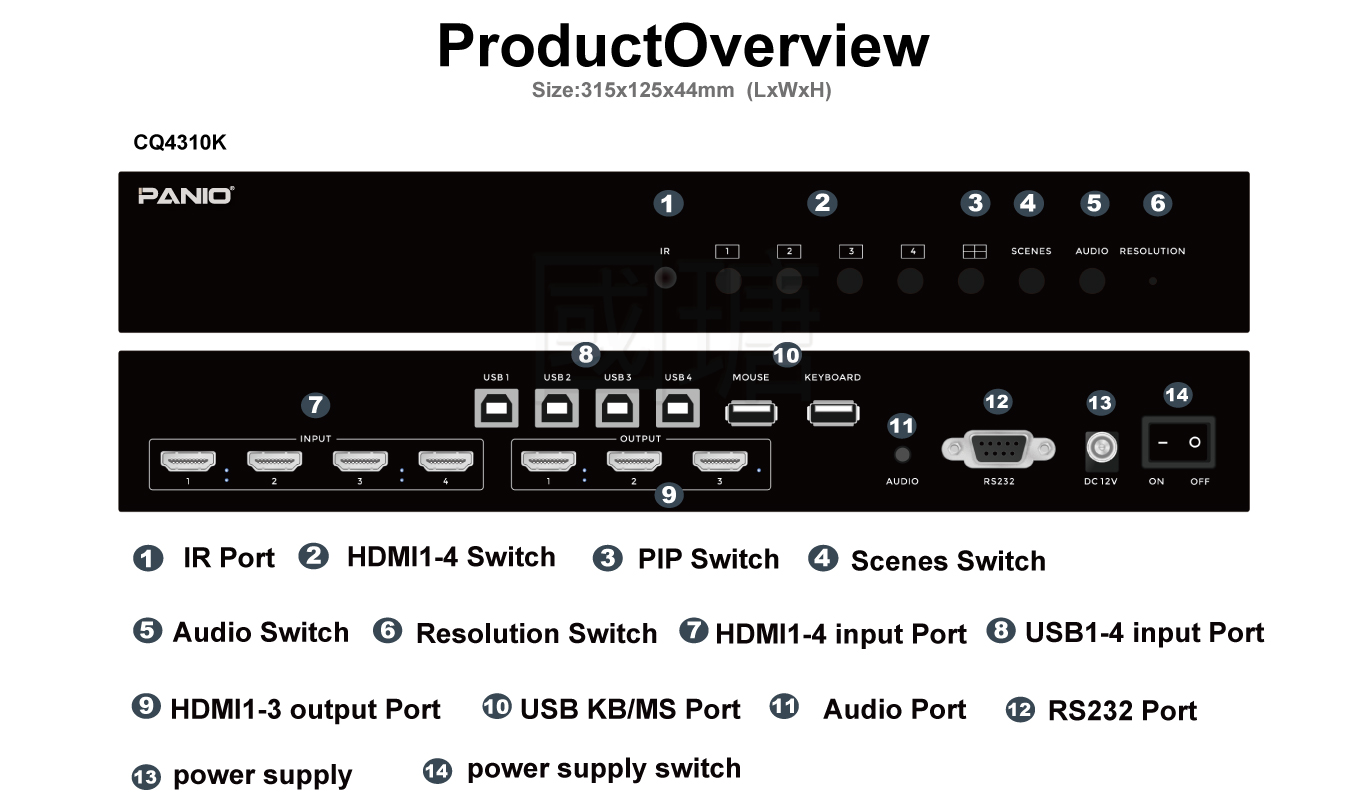

| Input Interfaces | 4 x HDMI (Video), 4 x USB HOST Type-B (KVM) |
| Output Interfaces | 3 x HDMI (Video), 2 x USB DEVICES Type-A (Keyboard/Mouse), 1 x 3.5mm (Audio) |
| Maximum Input Resolution | 3840 x 2160 @ 60Hz |
| Adjustable Output Resolutions | 4096x2160 (30/60Hz), 3840x2160 (30/60Hz), 2560x1600, 2560x1440, 2560x1080, 2048x1152, 1920x1440, 1920x1200, FHD 1080P |
| Built-In Multi-Window Layouts | 4-Split, 3-Split, 2-Split (SBS), 1 Large + 1 Small PIP, 1 Large + 2 Small, 1 Large + 3 Small, Full-Screen Matrix |
| Seamless Switching | 0-Second Instant AV Switching (Supported on Display 1 & 2) |
| Control Methods | USB Mouse Roaming, IR Remote Control, Front Panel Buttons, RS-232 Serial Commands |
| Max Cable Length | Input and Output can connect via premium HDMI 2.0 cables up to 5 meters respectively. |
| Power Supply | DC 24V / 3A external adapter |
| Dimensions | 315mm x 125mm x 44mm (L x W x H) |
| Net Weight | 1.5 Kg |
⚠ Deployment Notes
- Ensure the correct pairing order of the 4 USB Host cables with their respective HDMI video input cables to guarantee accurate mouse roaming.
- Use only manufacturer-certified USB and HDMI 2.0 cables to sustain 4K 60Hz bandwidth.
- Avoid daisy-chaining uncertified splitters or converters within the signal chain, as unapproved architecture may drop the mouse sync.
- Due to international air freight safety regulations, standard batteries are not included with the IR remote control.
📦 Package Contents
- CQ4310K Multi-Window Manager Host × 1
- Premium USB Type-A to Type-B Cables × 4
- Wireless IR Remote Control × 1
- Certified DC 24V 3A Power Adapter × 1
- English Technical User Manual × 1
