4K 60Hz HDMI Wall Plate HDBaseT Extender

Supports POC, External Audio, EDID, and Dual Monitor Output


Products / 4K 60HZ Extender

HDBaseT Technology Transmission

Supports transmission up to 100m at 1080P resolution and up to 70m at 4K 30Hz or 4K 60Hz using Cat5e/Cat6 cables.

POC Function

Only one-side power supply is required. Power can be delivered from either the HDBaseT transmitter or receiver to the other end.

EDID Function

Supports automatic EDID detection and manual EDID adjustment to resolve screen compatibility issues such as flickering or incorrect display scaling.

External Audio Input

Allows audio signals to be embedded into the HDMI stream for synchronized audio-visual output.

4K 60Hz Resolution

Delivers ultra-high-definition video at 3840 × 2160 resolution with 60Hz refresh rate and YUV 4:4:4 color sampling.

4K 60Hz HDMI HDBaseT Transmitter with UK US Wall Plate| TAIWAN PANIO
Feature
  • Supports 1080P 3D, 4K 30Hz, and 4K 60Hz resolutions.
  • HAE_A: Up to 100m transmission at 1080P and up to 70m at 4K 30Hz/4K 60Hz over Cat5e/Cat6 cables.
  • HAE_B: Up to 70m transmission at 1080P and up to 35m at 4K 30Hz/4K 60Hz over Cat5e/Cat6 cables.
  • Supports input EDID management with 7 built-in EDID presets. Supports reading display EDID and up to 4K 60Hz 4:4:4 resolution input.
  • Provides POC (Power over Cable) functionality, requiring power at only the transmitter or receiver to supply power to the other end.
  • Supports audio embedding, allowing external audio to be integrated into the HDMI video signal.
  • Compatible with HDMI 2.0 and HDCP 2.2 standards.

Specification

Model Name HAE

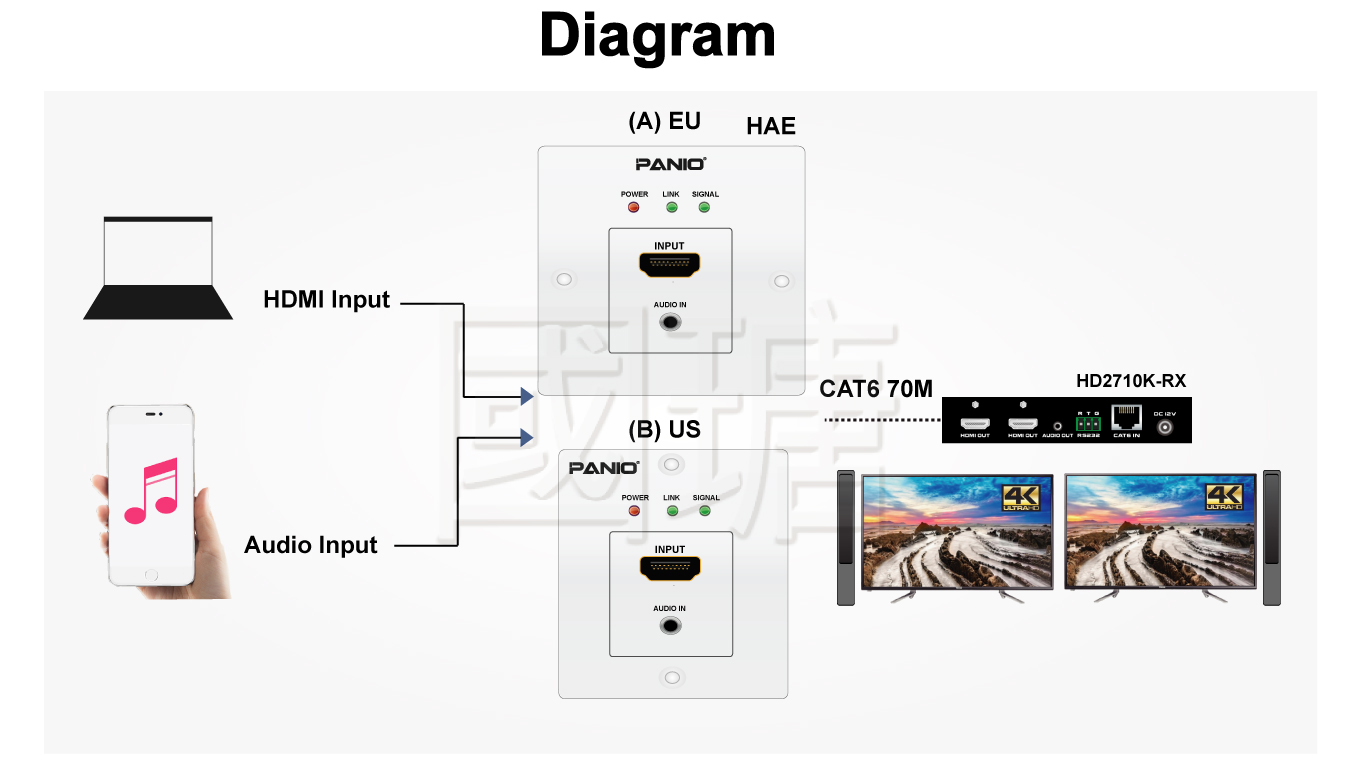

Transmitter 1 x HDMI2.0 input, 1 x 3.5mm input, 1 x HDBT (RJ45) output
Receiver Used with HD2710K receiver
Video resolution 4K 30Hz/ 60Hz, 1080P 60Hz
Transmission distance (HAE_A) Up to 100 meters under 1080P, and up to 70 meters under 4K 30Hz or 4K @60Hz.
Transmission distance (HAE_B) Up to 70 meters under 1080P, and up to 35 meters under 4K 30Hz or 4K @60Hz.
HDMI Cable length It can be connected to a 28AWG HDMI2.0 cable up to 5 meters long. If it is beyond this length that recommends using extender.
Power Supply DC 12V 1.5A power input at the transmitter or receiver (POC unilateral power supply)
Dimensions UK Standard 88 × 88 × 38mm/ US Standard 114 × 70 × 38mm (LxWxH)
Item Weight 200g

Note:

  • Please use certified 4K 60Hz HDMI cables for signal connection.
  • For optimal performance and stable operation, please use the original certified power adapter.

Package Contents

  • 1 X HAE
  • 1 X 12V 1.5A
  • 1 X User manual
