Wall Plate 4K HDBaseT Video Extender
Built-in Central Control | HDMI & Type-C | POC | Advanced Taiwan Technology
HC (HC-A / HC-B)
Products / HDMI Extender
Key Features
4K 30Hz Resolution
Experience crystal-clear image quality with native support for ultra-high-definition 3840 × 2160 30Hz resolutions.
Extended Network Transmission
HC-A: Up to 100m @ 1080P / 70m @ 4K.
HC-B: Up to 70m @ 1080P / 35m @ 4K.
Dual Interface Inputs
Built-in versatile interface featuring 2 HDMI ports and 1 Type-C input to accommodate modern AV and IT presentation devices.
Simplified Central Control
Acts as an easy-to-use central control hub, featuring 3 physical buttons for instant command execution, plus software support for up to 10 custom commands.
POC Power Supply
Power over Cable (POC) design allows the entire system to be powered conveniently from a single side, minimizing electrical clutter.
Smart EDID Management
The transmitter unit provides comprehensive EDID management, ensuring seamless display handshakes engineered by top-tier Taiwan technology.
Why Choose the HC Extender?
▸ Taiwan Technology Excellence
Designed and backed by PANIO, a leading Taiwan brand known for robust, reliable, and innovative Pro-AV engineering solutions.
▸ Elegant Wall Plate Design
Beautifully crafted wall plate aesthetic that keeps all connecting wires hidden securely behind the panel for a professional finish.
▸ Automatic Signal Detection
Smart Auto-detection function allows the internal system to automatically switch and select the latest active video source without manual intervention.
▸ Intelligent Auto EQ
Built-in automatic equalization (EQ) adjustment dynamically calibrates the transmission signal for optimal clarity across long cable runs.
▸ Bidirectional IR Control
Full support for bidirectional IR transmission enables users to control source devices remotely from the display end, or vice versa.
▸ Matrix Switcher Integration
Can be directly connected to the PANIO GMS series matrix switcher framework, completely eliminating the need to purchase additional receiver units.
Detailed Highlights
- Leverages professional HDBaseT technology to transmit high-definition HDMI and Type-C video signals alongside bi-directional IR control, enabling seamless synchronization with remote equipment.
- HC-A Model: Delivers stable signal extension up to 100 meters at 1080P 60Hz, and up to 70 meters at 4K 30Hz, making it ideal for mid-to-large scale conference rooms and multimedia spaces.
- HC-B Model: Provides reliable transmission up to 70 meters at 1080P 60Hz, and up to 35 meters at 4K 30Hz, perfectly suited for standard office environments and smart classrooms.
- Features software-based centralized control, allowing up to 10 customizable RS-232 commands to be sent via a web interface or cascaded systems, ensuring effortless smart control integration.
- Equipped with 3 tactile hardware buttons on the front panel for intuitive, quick-access operation, enabling users to instantly execute 3 customized programmable control commands.
- Integrates a smart auto-detection function that instantly recognizes and seamlessly switches to the most recently connected active video source, significantly enhancing operational fluidity and user convenience.
- Incorporates unilateral PoC (Power over Cable) technology, requiring only a single power adapter at the transmitter side to simultaneously power the receiver, eliminating complex wiring and the need for dual power outlets.
- Fully compliant with HDMI 1.4b and HDCP 1.4 digital rights management protocols, ensuring highly stable, zero-latency video transmission without screen dropouts.
- Features smart EDID memory and auto-synchronization to automatically match the optimal resolution of the connected display, preventing compatibility issues such as "no signal" or black screens.
- Built-in automatic equalization (EQ) technology dynamically adjusts signal strength based on the transmission distance, guaranteeing pristine, distortion-free image quality.

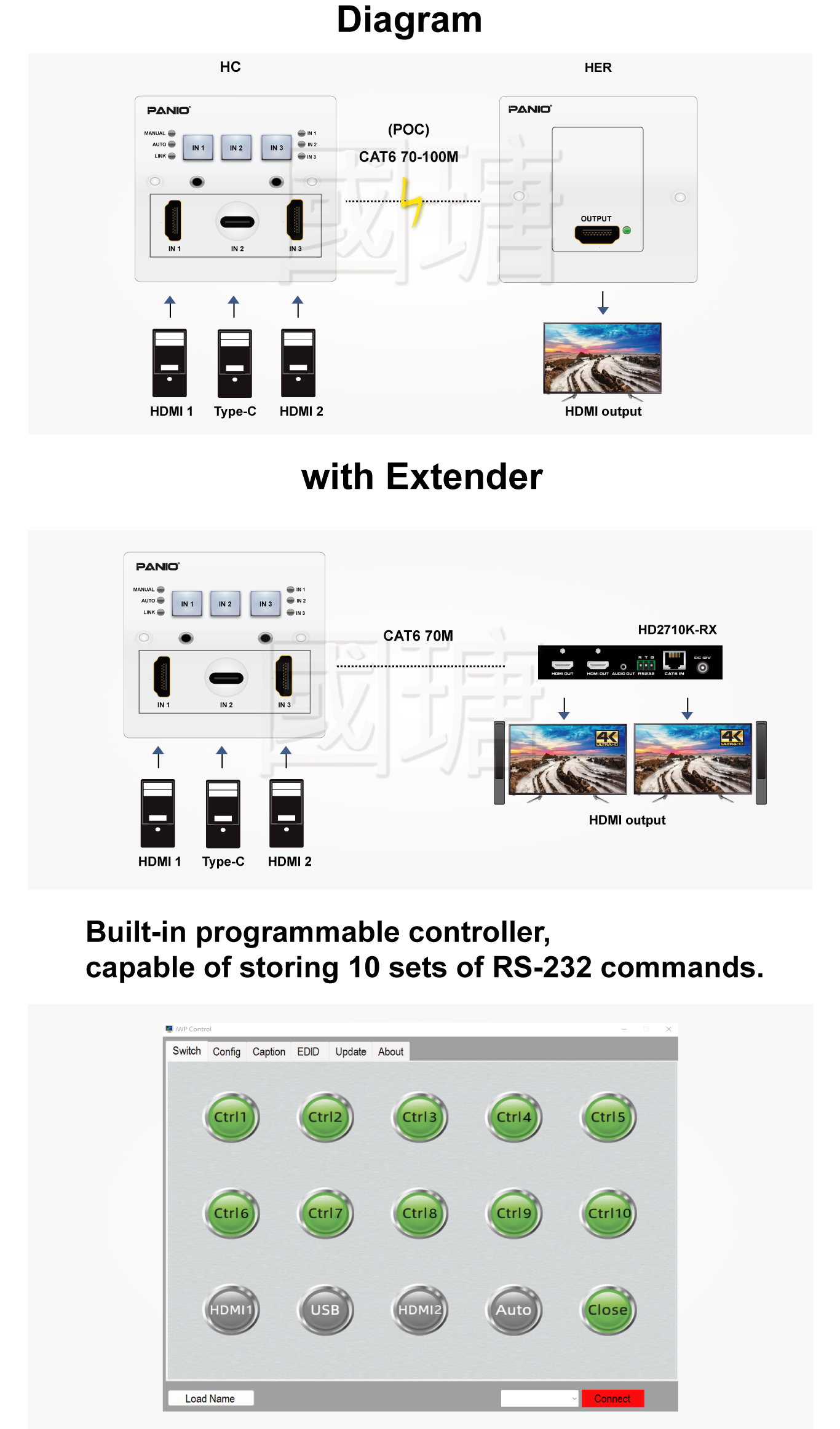

- Designed for elegant in-wall or desktop receptacle installation, offering flexible deployment. When paired with the HD2710KR receiver, it supports dual-channel synchronized display while maintaining a clean, professional aesthetic.
- Utilizes an uncompressed, zero-loss transmission architecture to deliver perfectly stable frames without pixelation or frame skipping, faithfully restoring true-to-life visual details.
- Seamlessly integrates with PANIO GMS Series HDMI Matrix Switchers without the need for additional standalone receivers, effectively reducing system costs and simplifying the AV architecture.
Ideal Applications
The HC wall plate extender is meticulously crafted using top-tier Taiwan technology to meet the aesthetic and functional demands of modern collaborative environments.
Smart Classrooms
Provide educators with seamless HDMI and Type-C plug-and-play access right at the wall or lectern, extending feeds to main projectors.
Conference Rooms
Keep boardroom meeting tables free from messy wiring while routing 4K video signals effortlessly to remote high-definition displays.
Lecture Halls
Utilize the 100m HDBaseT reach to bridge the gap between center stage presentation inputs and centralized AV control booths.
Technical Specifications
| Specification | HC (Wall Plate 4K HDBaseT Video Extender) |
|---|---|
| Input Interfaces | 2 x HDMI, 1 x Type-C, 2 x IR |
| Output Interface | 1 x RJ-45 port (HDBaseT) |
| Video Resolution | 4K 30Hz / 1080P |
| Transmission Distance (HC-A) | Up to 100 meters @ 1080P 60Hz | Up to 70 meters @ 4K 30Hz |
| Transmission Distance (HC-B) | Up to 70 meters @ 1080P 60Hz | Up to 35 meters @ 4K 30Hz |
| Protocol Standard | Support HDMI 1.4b, HDCP 1.4 |
| Signal Transmission Rate | 10.2 Gbps |
| Maximum Cable Length | Input and output can be connected with max 5 meters HDMI cable |
| Power Supply | DC12V 1.5A (Supports POC unilateral power) |
| Dimensions (L×W×H) | 86 × 86 × 38 mm |
| Item Weight | 245g |
⚠ Deployment Notes
- Please use a certified 4K cable to connect the source signal for optimal performance.
- To maintain quality stability, strictly use the original certified adapter provided in the box.
- If you need to use this unit alongside other third-party devices, please consult us to avoid incompatibilities.
- It is mandatory to use a high-quality Cat6 specification network cable (full 8-core copper network cable).
- This system operates point-to-point and cannot be routed through a standard Ethernet network switch.
📦 Package Contents
- 1 X HC Transmitter Wall Plate Unit
- 1 X 12V 1.5A Power Adapter
- 1 X Technical User Manual
