4K HDMI / VGA / DisplayPort Wall-Plate Extender

Supports 4K 30Hz, RS-232 Pass-Through, HDBaseT, and PoC Single-Side Power


Products / HDMI Extender

Long-Distance HDBaseT Transmission

Transmit uncompressed video over a single Cat6 cable: up to 70 m at 1080p60 and up to 35 m at 4K 30Hz.

4K 30Hz Ultra-Clear Video

Supports up to 3840 × 2160 @ 30Hz for sharp, reliable 4K presentation and digital signage applications.

Multi-Format Inputs for Maximum Compatibility

Built-in HDMI, VGA + 3.5mm audio, and DisplayPort inputs support a wide range of source devices.

RS-232 Pass-Through Control

Supports RS-232 pass-through for integration with automation systems and centralized device control.

PoC Single-Side Power

With Power over Cable (PoC), power can be supplied from one end via the HDBaseT link to simplify installation and reduce cabling.

PANIO HVD wall plate HDBaseT extender overview

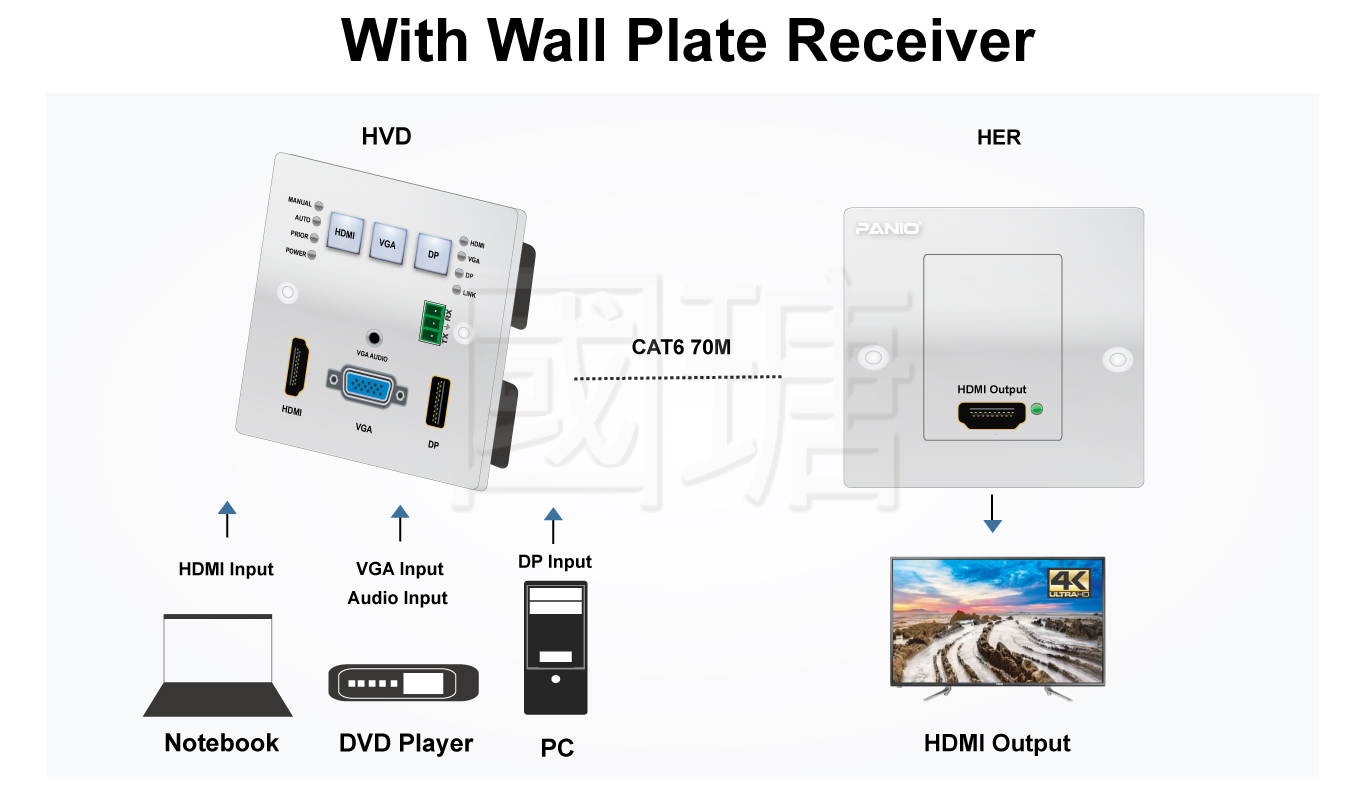

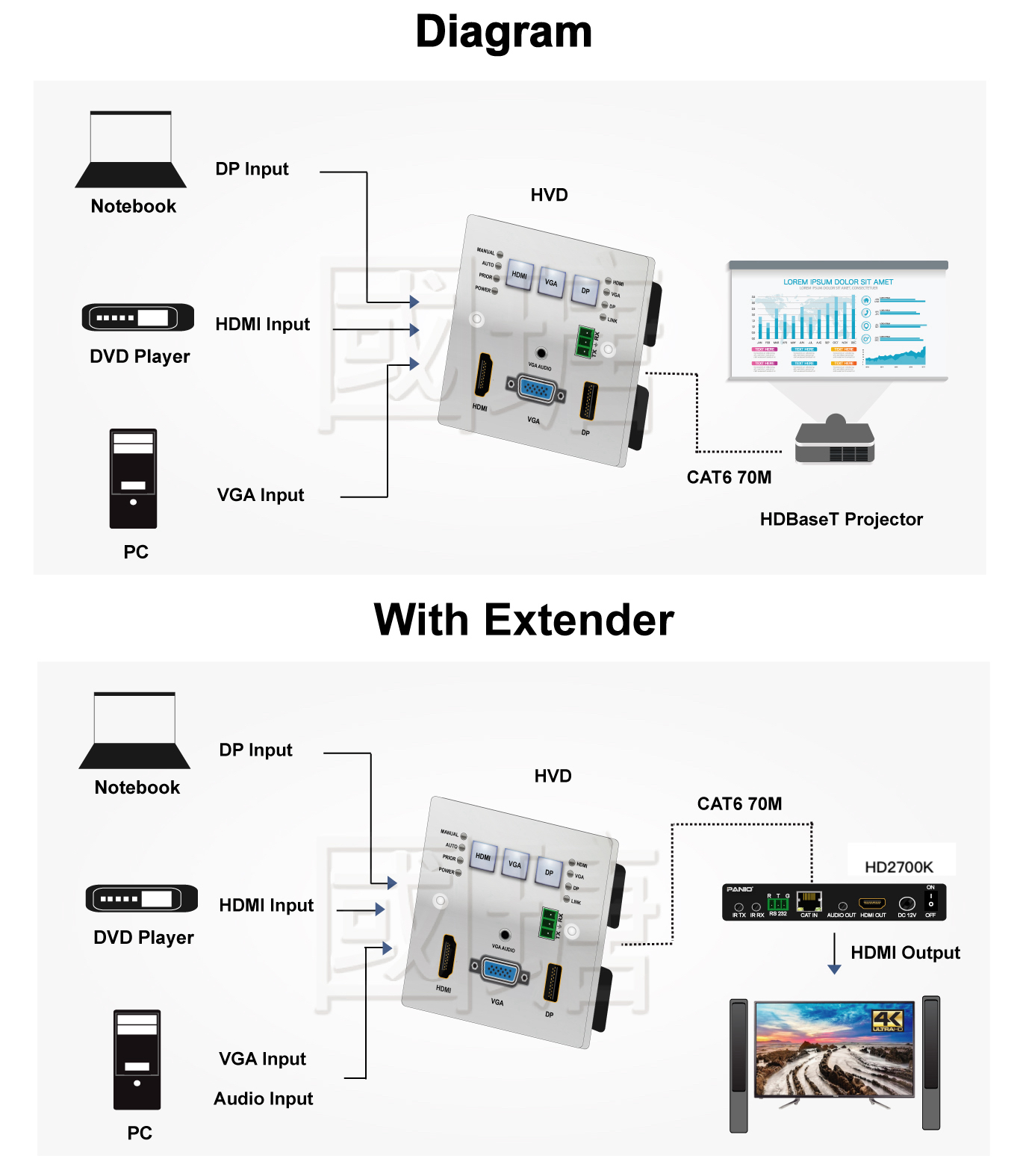

PANIO HVD wall plate extender wiring diagram and connection example

Features

  • Extends HDMI, VGA + 3.5mm audio, and DisplayPort signals over a single Cat6 cable using HDBaseT.
  • Transmission distance: up to 70 m (1080p60) and up to 35 m (4K 30Hz).
  • Professional wall-plate design with concealed wiring for clean, permanent installations.
  • Supports front-panel input selection and RS-232 control pass-through.
  • True plug-and-play operation—no drivers or software required.
  • Delivers clear, uncompressed video transmission (no mosaic artifacts under proper conditions).
  • Compliant with HDMI 1.4b and HDCP 1.4.
  • Compatible with optional TV receivers for extended display deployment.
  • Supports PoC (single-side power input) to reduce power wiring requirements.
  • Directly compatible with PANIO GMS series matrix switchers—no additional receiver required.
4K 30Hz HDBaseT long-distance transmission capability

Specifications

Model Name HVD
InputHDMI × 1 / VGA + 3.5mm audio × 1 / DisplayPort × 1 / RS-232 × 1
OutputRJ-45 (HDBaseT) × 1
Video Resolution4K 30Hz / 1080p
Transmission DistanceUp to 70 m (1080p60), up to 35 m (4K 30Hz)
StandardsHDMI 1.4b, HDCP 1.4
Data Rate10.2 Gbps
HDMI Cable LengthSupports HDMI cables up to 5 m for both source and display connections
Power SupplyDC 12V 1.5A
Dimensions86 × 86 × 38 mm (L × W × H)
Weight190 g

Notes


  • Use certified 4K HDMI/DP cables for best performance.
  • Use the original power adapter to ensure stable operation.
  • If integrating with third-party devices, please contact us in advance to confirm compatibility.
  • Use Cat6 (all 8 conductors connected) for HDBaseT transmission.
  • This extender does not operate through standard network switches.

Package Contents

  • HVD Transmitter × 1
  • 12V 1.5A Power Adapter × 1
  • User Manual × 1
