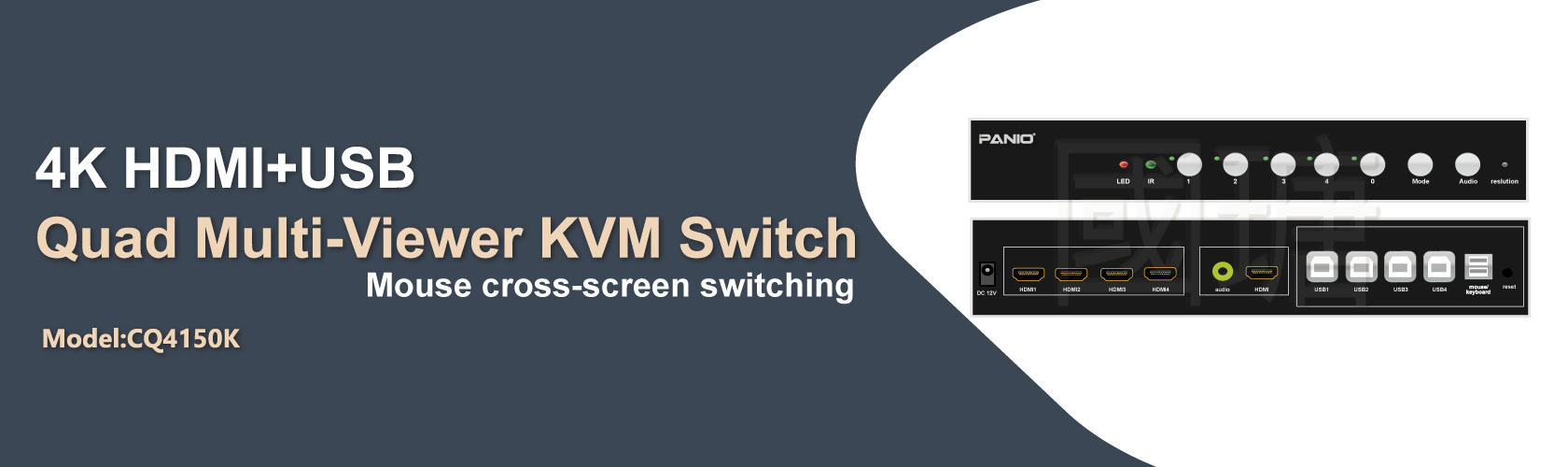

4K HDMI Quad Multi-Viewer KVM Switch
USB synchronization control+Mouse cross-screen switching
CQ4150K
About CQ4150K
CQ4150K is a high-performance UHD 4K quad video KVM Switch. It supports four 4K signals to be displayed on the same 4K displays at the same time. And support KVM keyboard mouse switching, audio switching, and other functions, you can also switch between picture mode and audio through keyboard hotkeys.
The product supports 4 x HDMI 1.4 inputs with a maximum input resolution of 3840x2160 @30HZ, which is backward compatible; 1 x HDMI 2.0 output with a maximum output resolution of 3840x2160 @60HZ. Supports 4 x USB inputs to connect the computer and 2 x USB outputs to connect the mouse and keyboard.
CQ4150K UHD video KVM switch uses a relatively large number in standard products currently on the market, products are mainly used in video conferencing, teaching, exhibitions, etc, where needs to use a single display which can display multiple UHD signals workplace simultaneously.
Supports 4 x HDMI1.4 signal input, Resolution up to 3840 x 2160 @30HZ.
Supports 1 x HDMI 2.0 output, Resolution is 3840 x 2160 @60HZ, 1920 x 1080 @60HZ, 2560 x 1440 @60HZ, 3840 x 2160 @30HZ, 1280 x 720 @60HZ.
Supports KVM switch function, Switch screen display mode, Audio switch, Quad split mouse through function by keyboard hotkeys.
Four-screen split function, Displaying 4 screens on a single screen at the same time.
Built-in 3.5mm audio port.

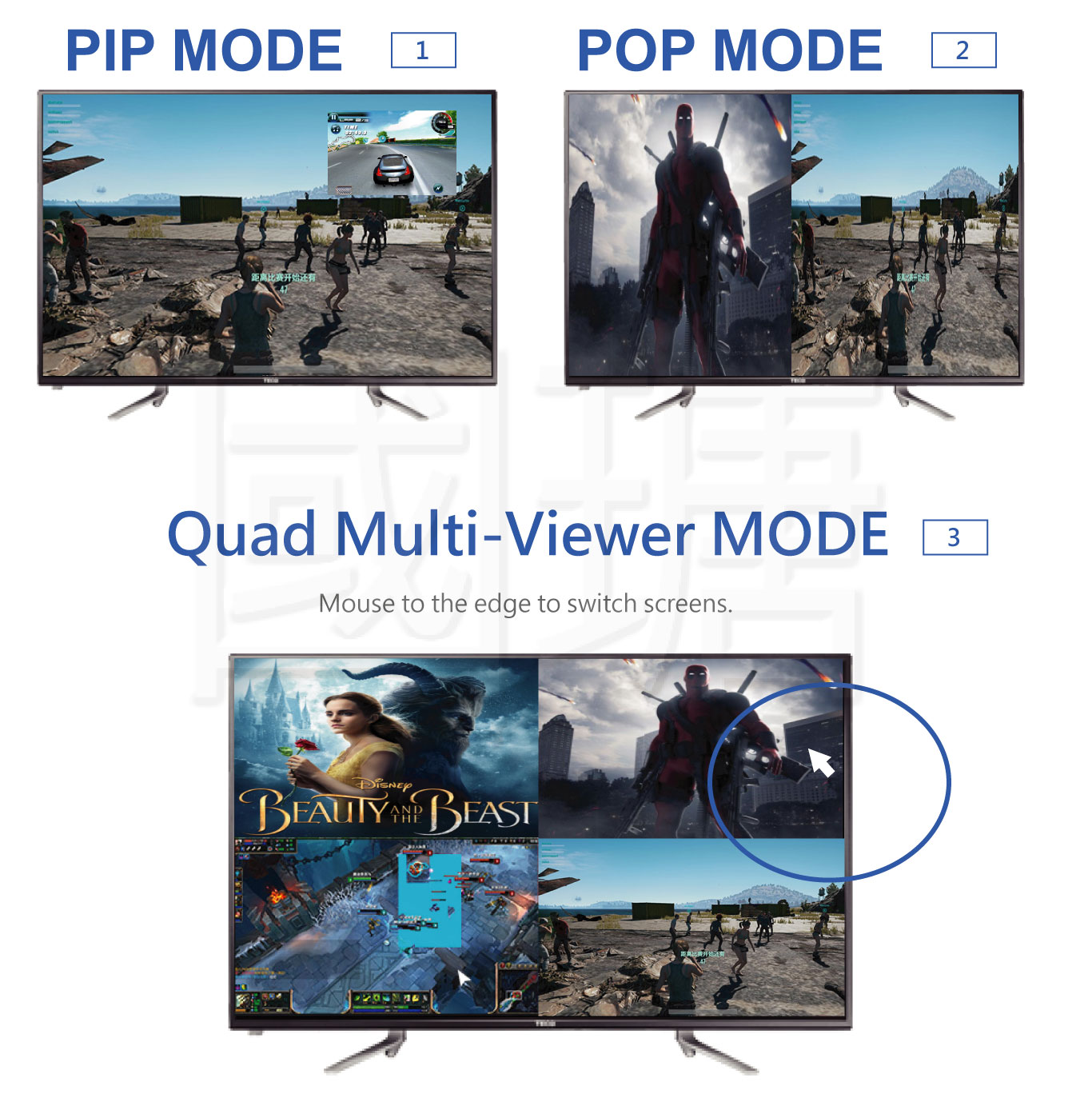

Supports image fixed position、PIP、 POP function.
Supports chassis keys, Infrared remote control, and keyboard hotkey control functions.
1 x Remote Controller (Battery not provided)
1 x DC12V Power Supply
1 x User Manual
| MODEL NAME | CQ4150K |
|---|---|
| Input port | 4 x HDMI, 4 x USB, 1 x RS-232, |
| Output port | 1 x HDMI, 2 x USB (Keyboard Mouse), 1 x 3.5mm |
| Input port resolution | Support highest resolution of 3840 x 2160 @30HZ and downward compatibility |
| Output port resolution | Can choose 3840 x 2160 @60HZ, 3840 x 2160 @30HZ, 2560 x 1440 @30HZ，1920 x 1080 @60HZ, 1280 x 720 @60HZ |
| Screen division function | full-screen, Quad-screen split, Two-screen split, Fixed mode PIP display function |
| Control mode | Keyboard hotkeys, Infrared remote control, And chassis key functions |
| Dimension | 288 x 30 x 119 mm |
| Power Supply | DC 12V |
Diagram
