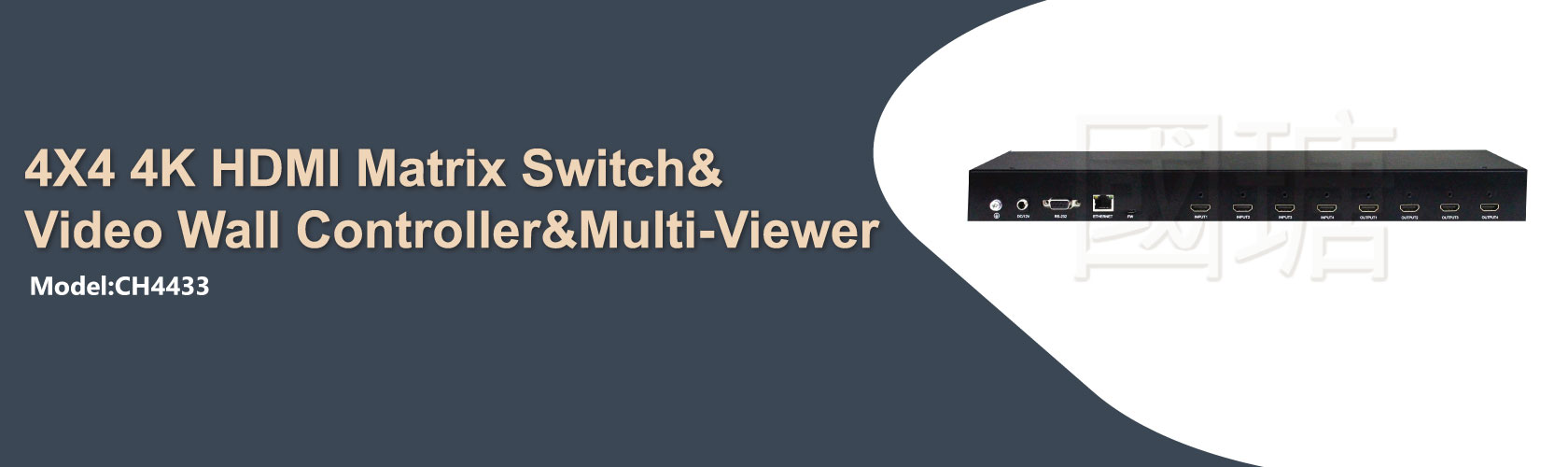

4X4 4K HDMI Matrix&Video Wall Controller&Multi-Viewer
Support Seamless switch, RS232/IP Control
CH4433
About CH4433
PANIO [CH4433] is a high-performance seamless switching 4 × 4 4K30Hz HDMI matrix switcher.
Flexibility to the control mode, through front panel buttons, a remote controller, RS-232, and TCP / IP control.
Multi-function processor function: support TV wall mosaic processor, multi-viewer splitter.
Support 4xHDMI input, 4xHDMI output.
Supports the highest resolution: 3840x2160 30Hz.
Support output downscale to 1080P/ 720P/ 2560x1440/ 1920x1200/ 1360x768
Supports seamless switching, real-time screen display, no waiting time.
Support panel switch, RS-232 switch, remote switch, TCP / IP switch.
Support EDID function.
Compliant HDCP 2.2 and HDCP1.4
Support splicing TV wall function.
Support multi-viewer, screen stack, zoom, rotate mirror ... etc.
1 x 12V 2A Power Supply
1 x Remote Controller (battery not provided)
2 x Mounting Ears
1 x User Manual
| MODLE NAME | CH4433 |
|---|---|
| Input | 4 x HDMI |
| Output | 4 x HDMI |
| Video Resolution | DTV/HDTV: 4K@30Hz/ 1080P/ 1080i/ 720P/ 576P/ 480P |
| Matrix mode | 4x4 Seamless Switching |
| Video Wall mode | 2x2, 1x2+1x2, 2x1+2x1, 2x1+1x2, 1x3, 3x1, 1x4, 4x1 |
| Control mode | IR, Button, RS-232, TCP/IP |
| HDMI signal | HDMI1.4, Compatibility HDCP 2.2 and HDCP1.4 |
| Audio Format Supported | LPCM 2.0 |
| Operating Temperature Range | 0 to +40°C |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Power Supply | AC 110V-240V 50/60HZ DC 12V 2A |
| Dimension ( L x W x H ) | 438 X 205 X 44 mm |
| Mass (Main unit) | 2.71 Kg |
Diagram
