DD1000TR Display Port / RS-232 / IR / Audio Daisy Chain over IP Extender
|
The DD1000TR is the latest high performance, cost-effective Displayport Daisy-Chainable Extender over CAT.5e/6, extended up to 100m between. supports Full HD 1080p, 1920x1080, video and daisy-chainable with high flexibility of expansion as consecutive linking for each additional 100m as many as you want.

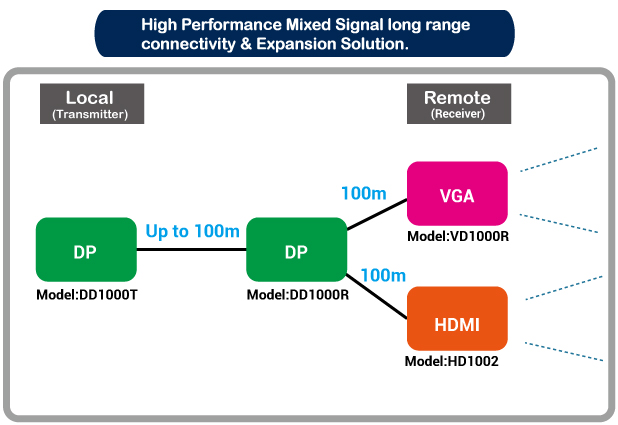

| The DD1000TR’s significant feature is without any converter, multiple HDMI inputs are very easy to transfer to VGA, DP, DVI |
| output with connected receivers. |
|
|
|
 |
| |
|
 |

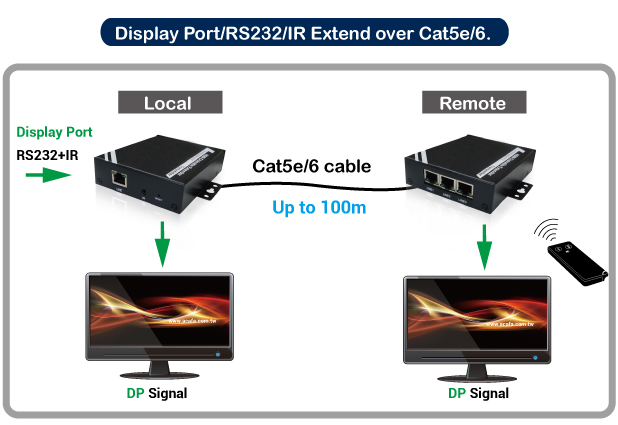

Extends the Displayport signal by Cat.5e/6 up to 100m. |
|
Supports high resolution Full HD 1080p, 1920 x 1080@60Hz. |
|

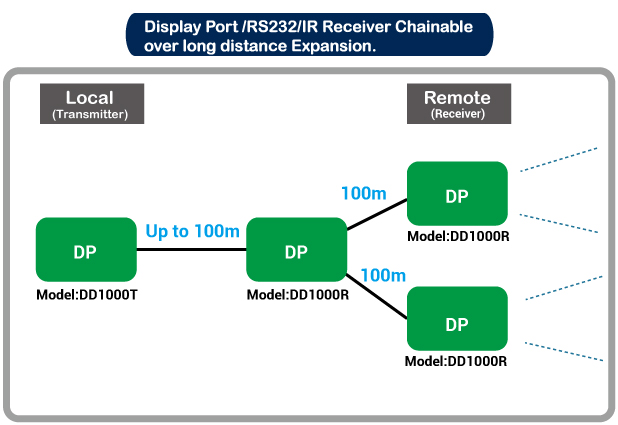

Cascaded-chainable remote receiver up to 10 layers. |
|

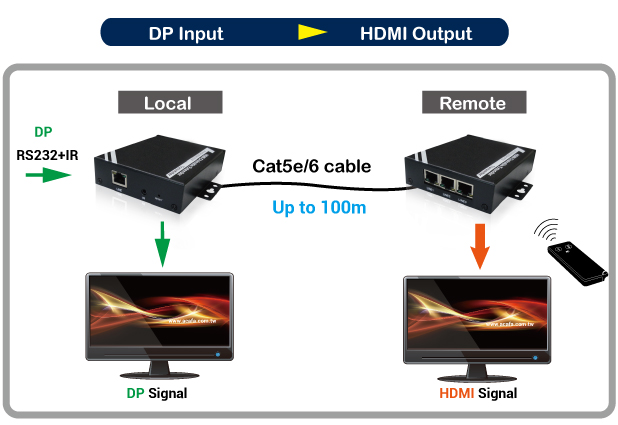

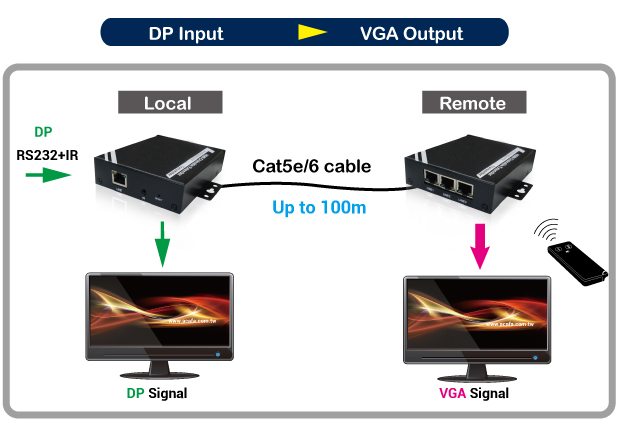

There is no converter needed, the signal could be directly converted between HDMI、VGA、DisplayPort. |
|
Supports RS-232 (Serial). |
|
IR (Infrared remote) enabled. |
|
Supports Local Displayport monitoring & Audio output ports. |
|
Each receiver (remote) links cascade-chainable 2 receivers. |
|
Bracket mountable. |
|
No software or driver required. |
|
Hot plug & play supported. |
|
Made in Taiwan. |
| |
|
 |
| |
 |
| |

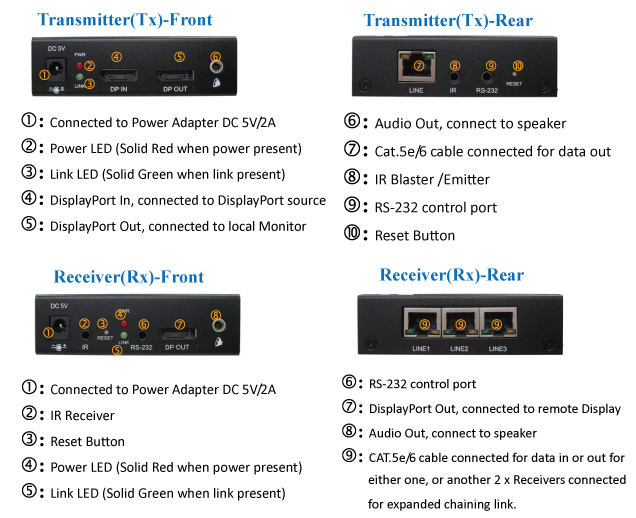

Detailed Picture
|
| |
|
 |
| |
 |
 |
 |
| 2 X IR Cable |
2 X RS-232 Cable |
2 X DC 5V Power Adaptor |
 |
|
|
| 1 X Audio Cable |
|
|
| |
|
 |
| |
|
DD1000TR (Transmitter) |
DD1000TR (Receiver) |
|
DisplayPort Output
|
Displayport (Female) |
Displayport (Female) |
RS-232 Control Port |
Phone Jack |
Phone Jack |
PC Connectors |
DisplayPort Input
|
Displayport (Female) |
N/A |
| Extension Port |
RJ-45
|
Full HD V ideo / Audio Extension |
RJ-45 |
1 (Line Out) |
3 (Line In or Line Out) |
Cascaded-Chainable |
N/A |
up to 10 layers |
| Audio |
Supports High Definition Audio (HD) , Surround Sound |
| RS-232 |
Bi-directional |
IR |
Uni-directional (from RX to TX) |
LED Indicators |
Local |
Power |
Red LED |
| Link |
Green LED |
Remote |
Power |
Red LED |
| Link |
Green LED |
| DDC Supported |
DDC, DDC2, DDC2B |
| Extension Cable Type & Length |
CAT.5e/CAT.6 Max.Length:100m |
| Max Video Resolution |
1920x1200@60Hz, Full HD 1080p,48-bit |
| Wide Screen Supported |
Yes |
OS Compatibility |
W indows, Mac, Linux, Sun microsystems |
Housing material |
Metal |
Operating Temperature |
32 - 122°F ( 0 - 50°C ) |
Power Supply |
External DC 5V / 2A Power Adaptor |
Dimension (L x W x H ) |
|
| Weight |
340g |
380g |
Humidity |
0% - 80% RH |
|
|
|
