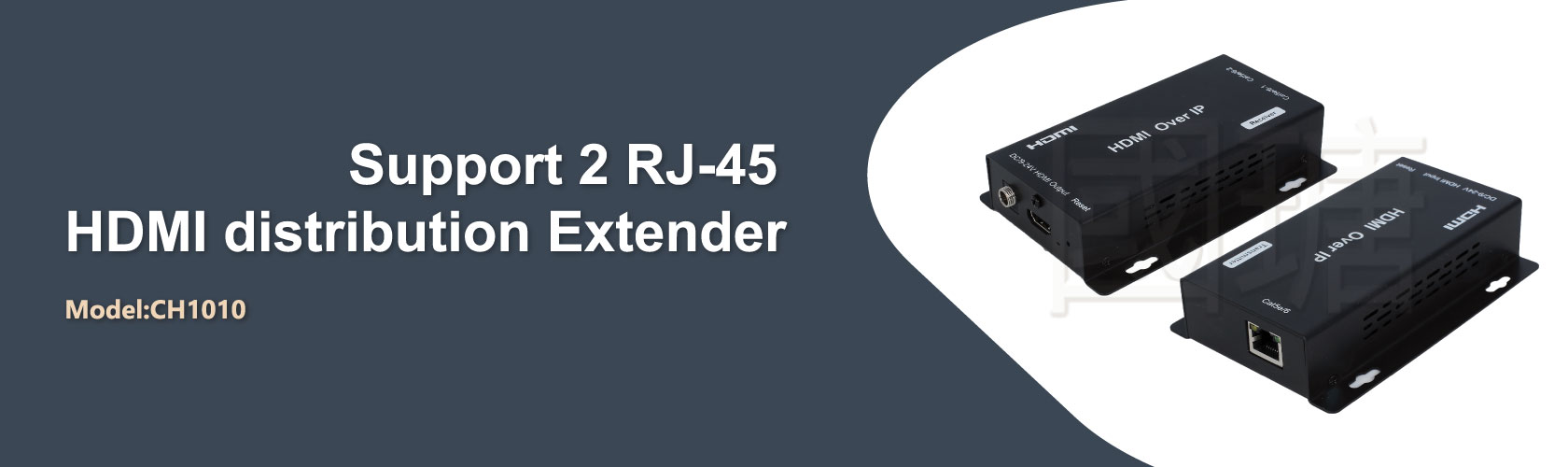

HDMI Daisy Chain over IP Extender
Cascaded-chainable Receiver

CH1010


About CH1010

PANIO [CH1010] is an HDMI extender. It is connected through a network cable Giga switch or optical fiber conversion. The network cable can be extended by 100 meters each time and can be connected to multiple receivers.

And each receiver (CH1010R) links can use cascade-chainable 1 receivers, therefore, 1 transmitter can send the signal to multiple receivers.


Through the network cable to extend the HDMI signal point-to-point by 100 meters.

Through Giga Switch 1-to-multipoint transmission, resolution up to 1080P 60Hz.

The remote receiver supports 2-Port RJ-45 connection, can be connected in 10 layers, up to 1000 meters

Supports HDMI1.3 and HDCP1.4.

Each remote receiver can be connected with another receiver by the daisy chain , which can achieve 1-input multi-output function.

Hardware design, no need to install additional software.

2 x 12V 1A Power Supply

1 x User Manual





Datasheet





MODEL NAME CH1010

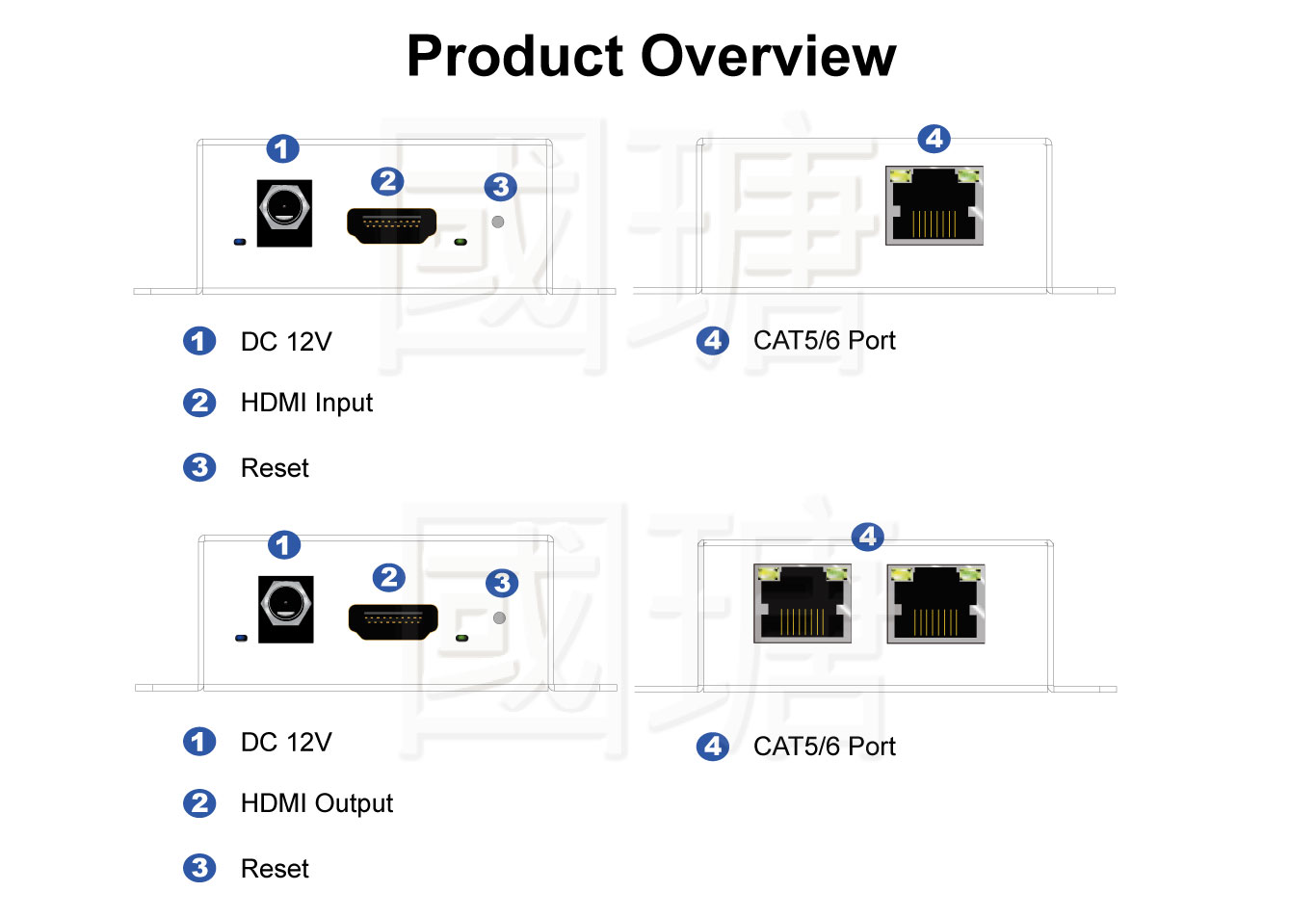

Transmitter port 1 x HDMI input, 1 x RJ45 output
Receiver port 1 x HDMI output, 1 x RJ45 input, 1 x RJ45 output
HDMI signal HDMI1.3 and HDCP1.4
Max Video Resolution 1920X1080 60Hz
Extension Cable Type & Length CAT.5e / CAT.6 / Giga switch Max.Length: 100m
Dimension TX/RX 125 X 84 X 27mm
Power Supply DC 12V 1A
Housing Metal enclosure
Mass (Main unit) TX/RX 240g

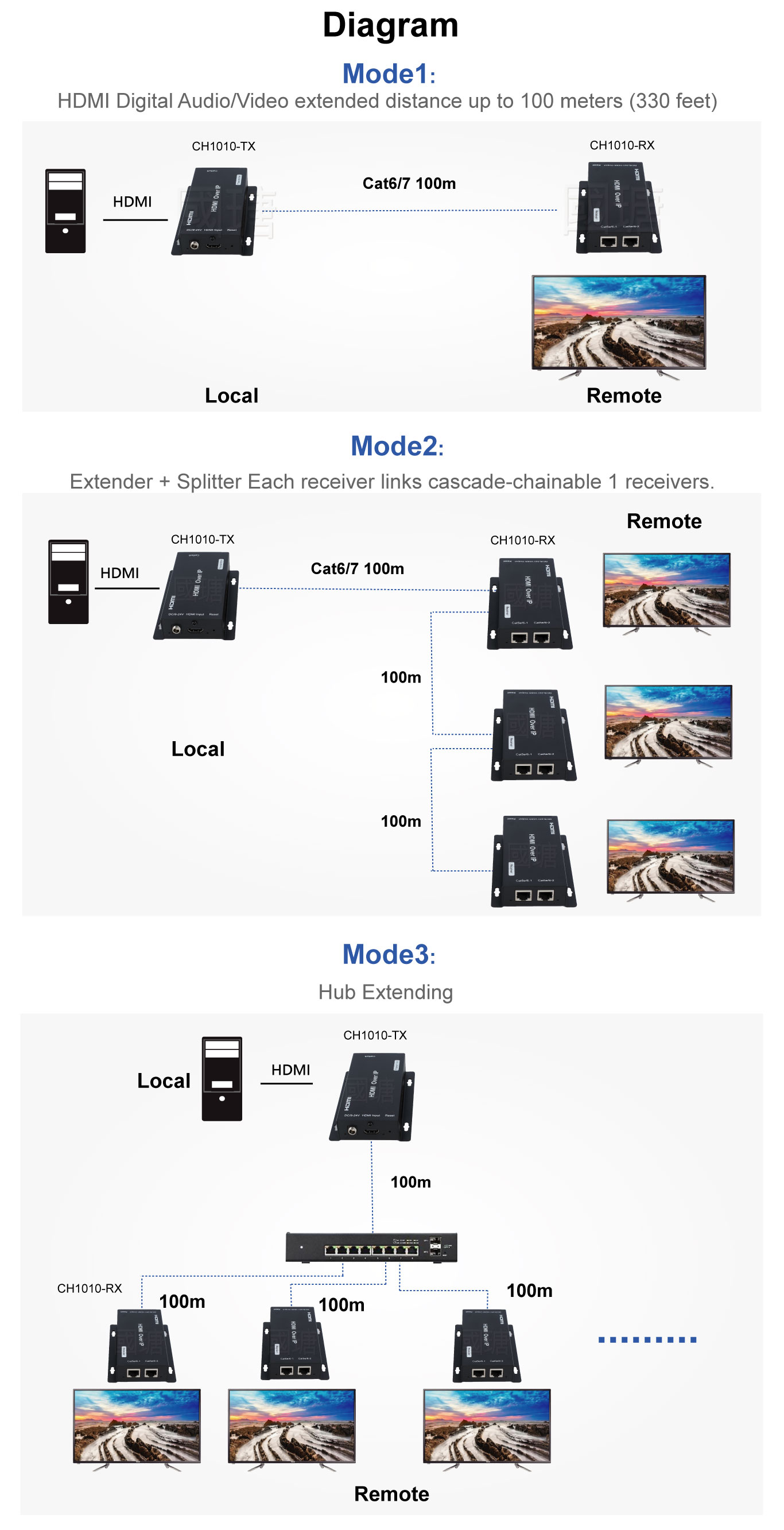

Diagram
