VGA / Audio / RS-232 / IR Daisy Chain over IP Extender
Support EDID, Mix signal input or output

VD1000TR


About VD1000TR

[ VD1000TR ], Which can extended distance up to 100 meters (330 feet) between Transmitter (VD1000T) and Receiver (VD1000R), and support video high resolution up to 1920x1080, 1080P 60Hz.

And each receiver (VD1000R) links can use cascade-chainable 2 receivers or Mix HDMI signal receivers output. It also can mixed complex a variety of interfaces output.


Uses easy to install, inexpensive CAT5e/6 cables.

Cascaded-chainable receiver up to 32 layers (1000M 1080P).

VGA Digital Audio / Video extended distance up to 100 meters (330 feet) between Transmitter(VD1000T) and Receiver(VD1000R).

Supports video high resolution up to 1920x1080, 1080P 60Hz.

UTP/STP cable termination follows the standard of IEEE-568B.

Support HDMI 1.3 / HDCP

Supports Default EDID, and Selected EDID modes.

HDTV compatible (720p, 1080p).

Supports RS-232 (Serial port).

IR (Infrared remote) enabled.

Supports Local VGA / 3.5mm port output.

No software / driver installation required.

Each receiver (VD1000R) links cascade-chainable 2 receivers (VD1000) or Mix HDMI signal receivers output (HD1002).

Rack mountable.

Made in Taiwan.

2 x 5V 2A

1 x IR TX Cable

1 x IR RX Cable

2 x RS232 Cable

1 x User Manual





Datasheet





MODLE NAME VD1000TR

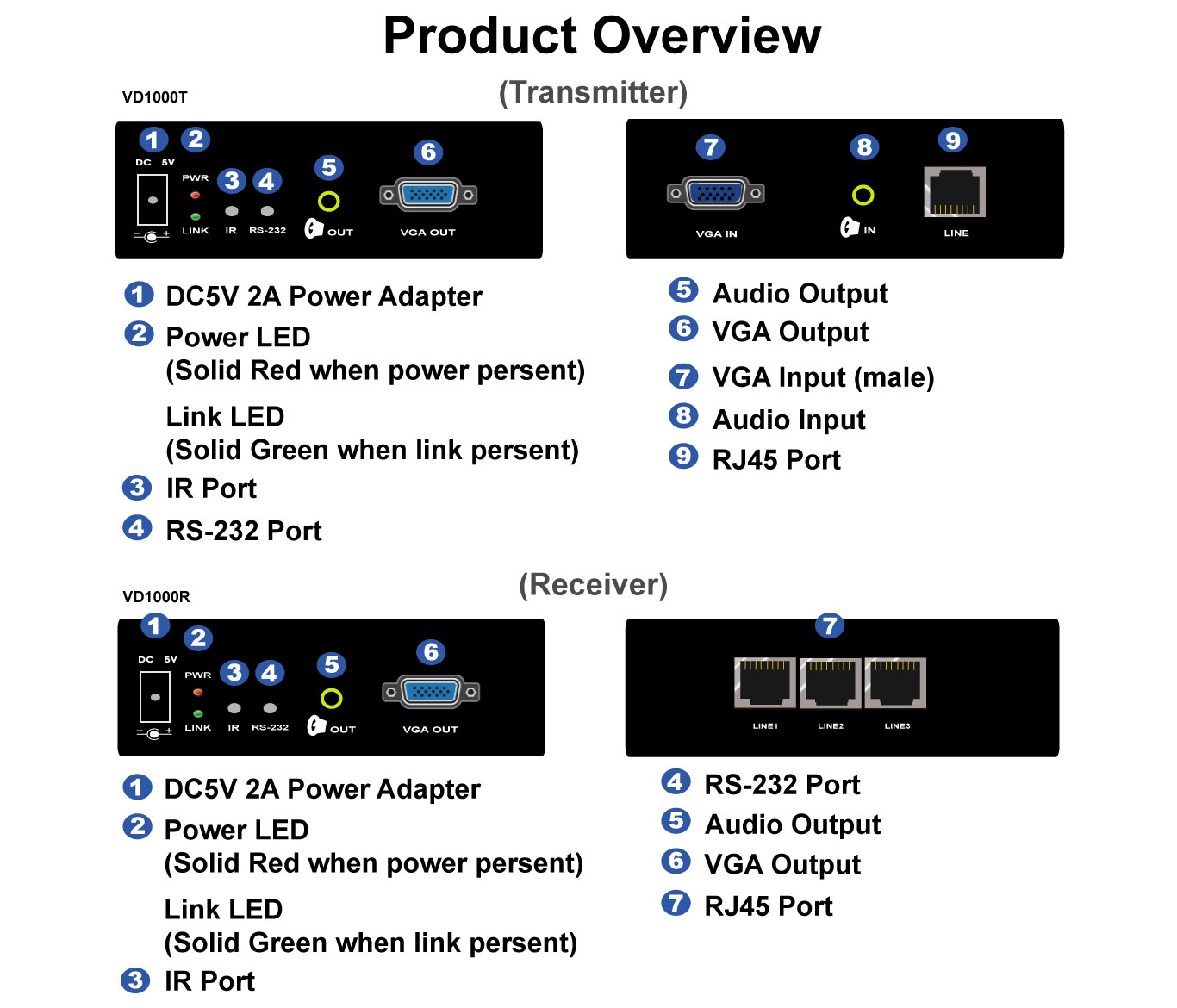

Transmitter 1 x VGA input, 1 x VGA output, 1 x 3.5mm input, 1 x 3.5mm output, 1 x IR output, 1 x RJ45 output, 1 x RS232
Receiver 1 x VGA output, 1 x 3.5mm output, 1 x IR input, 3 x RJ45 (1 input, 2 Cascaded-chainable), 1 x RS232
Cascaded-Chainable 32 layers
Max Video Resolution 1920x1080 60Hz, Full HD 1080P (no support 1080i)
Extension Cable Type & Length CAT.5e / CAT.6 / Giga switch Max.Length: 100m
OS Compatibility OS Independent
Operating Temp 32~ 122°F (0~ 50°C )
Humidity 0% ~ 80% RH
Power Supply AC 110V-240V 50/60HZ DC:5V 2A
Dimension ( L x W x H ) T: 115 x 91 x 28 mm / R: 115 x 91 x 28 mm (Pairs)
Mass (Main unit) T: 350g / R: 385g (Pairs)

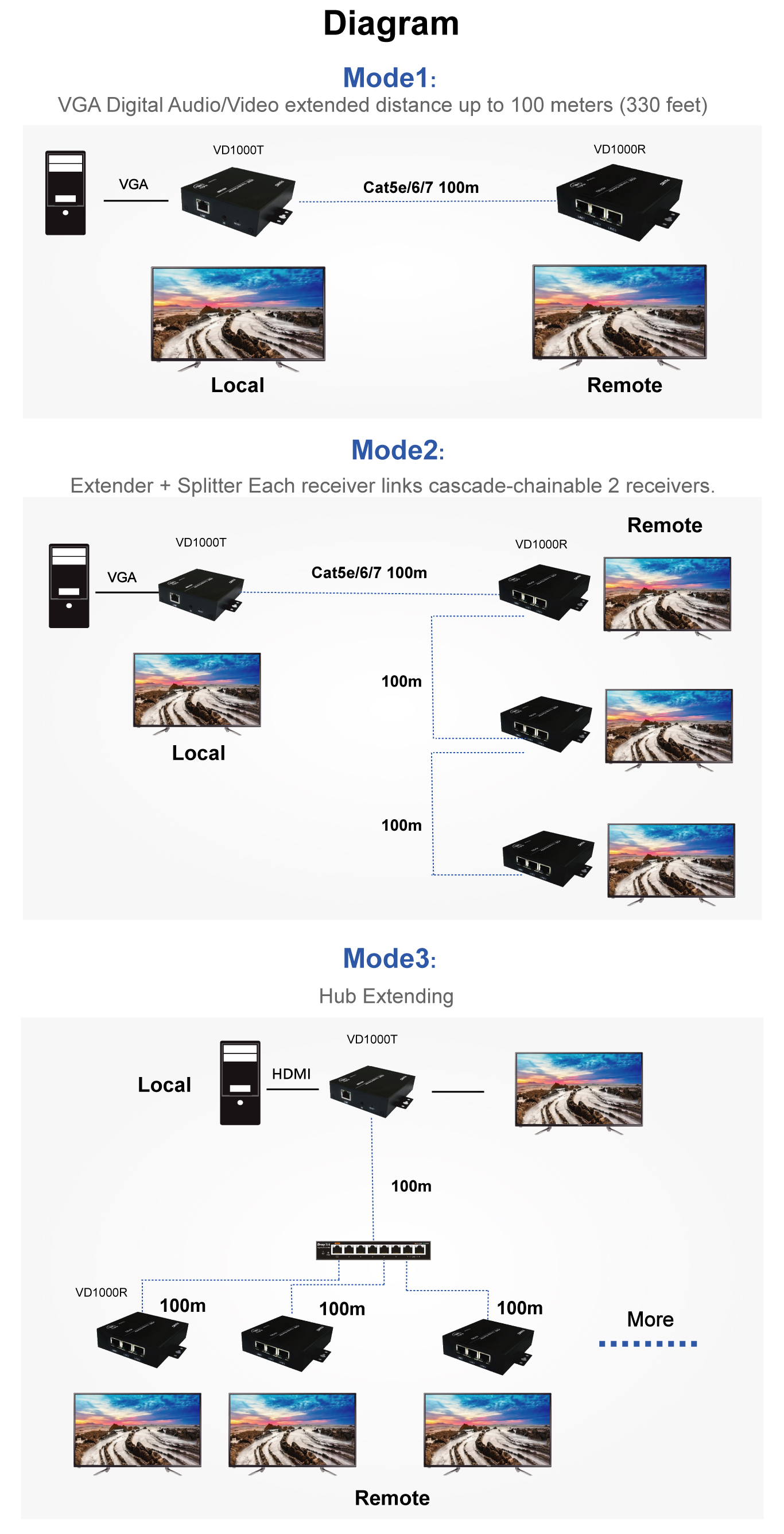

Diagram
