4X4 HDMI2.0 MATRIX & Extender

Support HDCP2.2, POC, CEC, RS232, Bi-directional IR


Transmit up to 70m under 1080p, 35m under 4K.

4 X HDMI2.0 input ports, 4 X RJ-45 output ports.

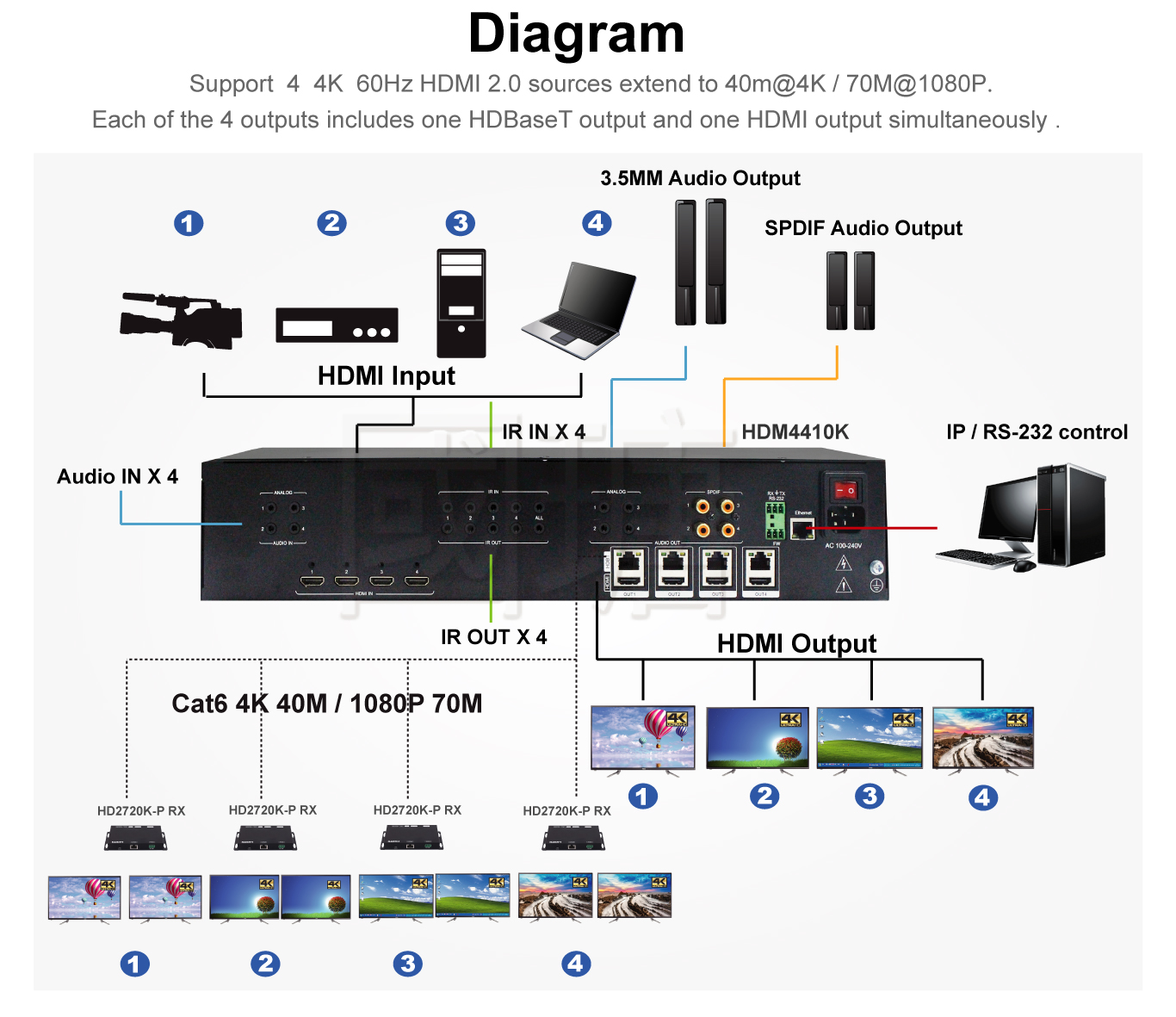

Any one of the 4 sources to any one of the 4 Displays, Matrix Switch.

Supports resolutions up to 4K @60Hz.

4K 60Hz signal by single Cat6 cable to achieve long distance transmission.

UTP/STP cable termination follows the standard of IEEE-568B.

Support HDMI 2.0 / HDCP 2.2.

Support Panel Button, IR Routing, RS232 Control, IP Control Via Telnet.

Phoenix RS232 Port for firmware update or RS232 control signal transmission.

1U rack design, easy installment.

Support POC (Receiver powered by HDBaseT Matrix).

With ESD protection inside.

Support wide-band Bi-directional IR (38KHZ to 56KHZ).

4K 60Hz signal Incorporates HDBaseT Technology.

2 x 12V 3A power supply (1 Power Supply, 1 POC)

1 x Remote controller

1 x IR Extension cable; 4x Wide-Band “IR In” cables; 4x “IR Out” cables

2 x Mounting Ear

1 x User Manual






Input 4 x HDMI, 4 x IR, 1 x RS232, 1 x RJ-45
Output 4 x HDBT (RJ-45), 4 x RS-232, 4 x L/R Audio, 4 x SPDIF
Video Resolution 4K@60/4k@30/1080P/1080i/720P/576P/480P/576i/480i
Compliance HDMI 2.0 / HDCP 2.2
Audio Support DTS-HD, Dolby-HD
Maximum Transmission Distance 1080P 70m, 4K 35m
Power Consumption 25wtts (Max.)
Signaling Rate 3.0 Gbit/s
Power Supply AC 110V-240V 50/60HZ DC:12V 3A
Dimension ( L x W x H ) 440 x 166 x 42 mm
Mass (Main unit) 2Kg
