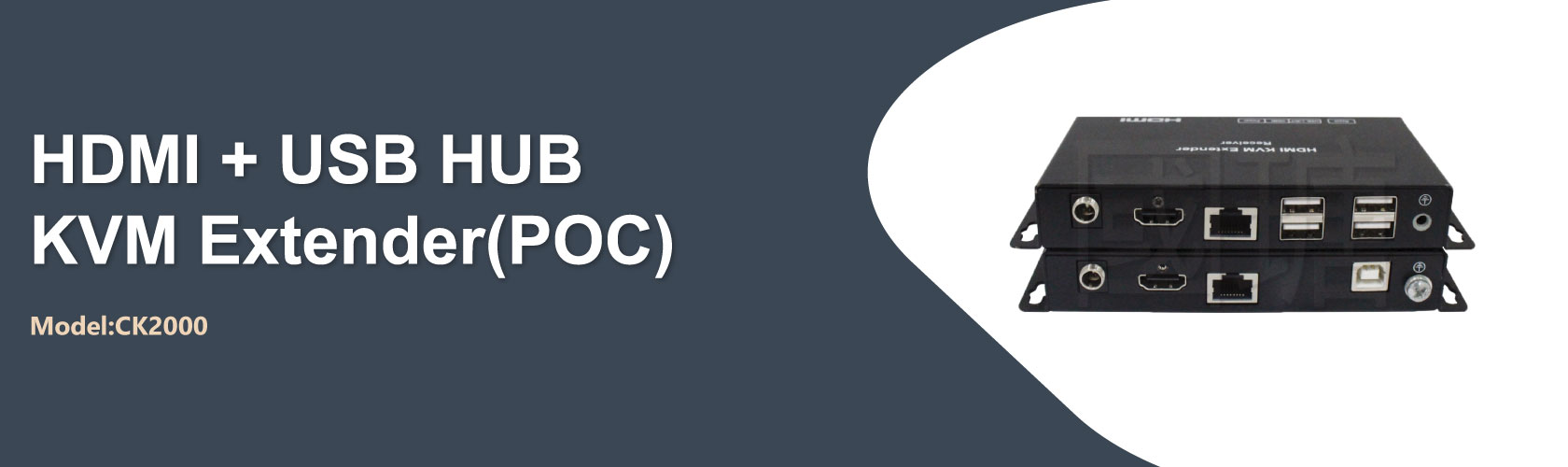

HDMI USB Hub KVM Extender
Support USB2.0 Device, POC, 50meters


About CK2000

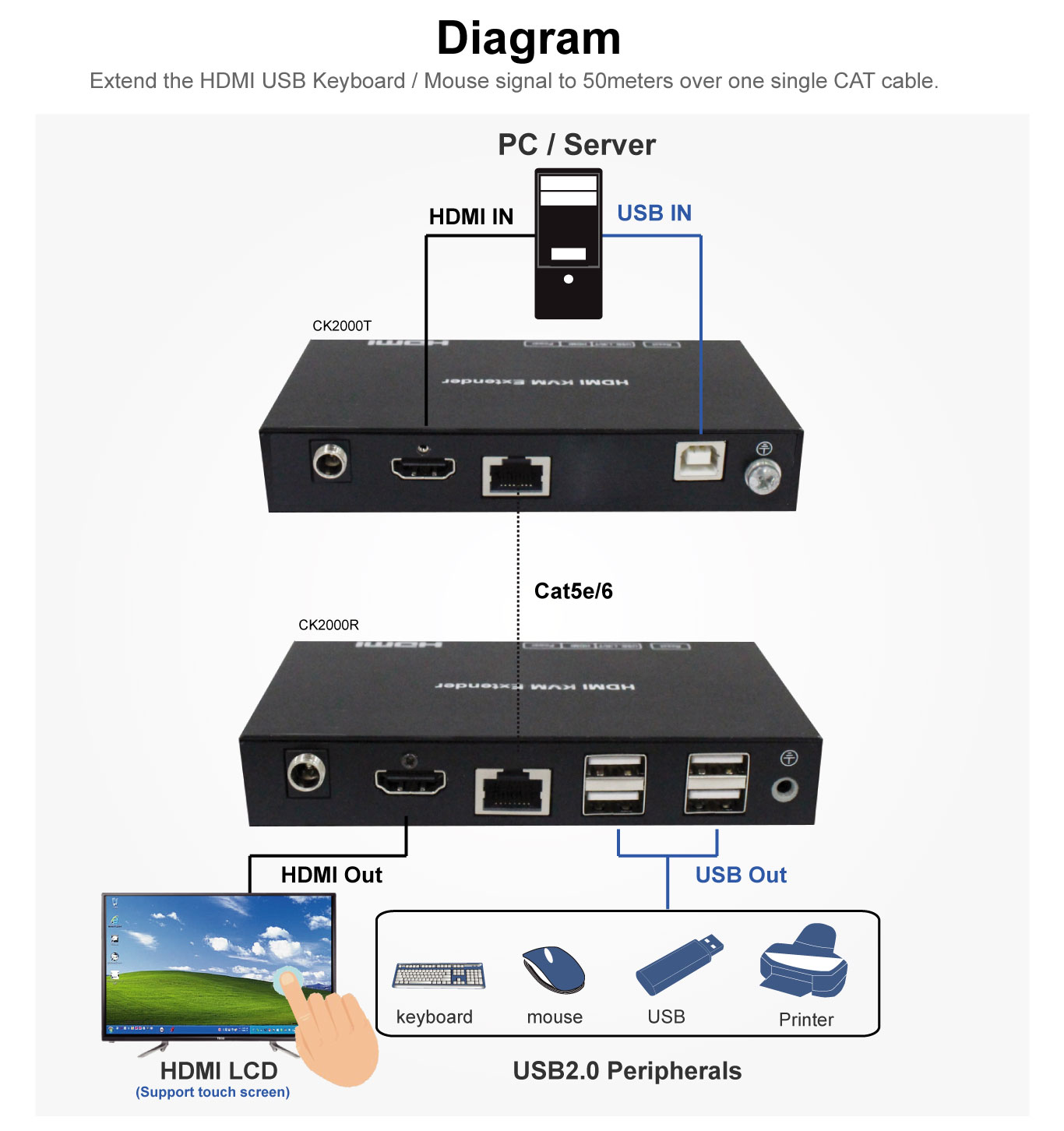

[CK2000]allows HDMI signals to be transmitted over a Single CAT5e/6 cable, resolution up to 1080p@60Hz. The transmit distance up to 50m over single Cat5e/6 cable. And it supports PCM2.0 and USB2.0 pass through, E.g touch screen.

Applicable for Household entertainment sharing and control、Lecture room display and control、Meeting room presentation and control、Classroom display and control.

Transmit distance up to 50m over single Cat5e/6 cable.

Support Full HD 1080P @60Hz, and bandwidth 1.65Gbps.

Support USB2.0 pass through, E.g Touch screen or USB device.

Support Dual POC. (RX powered by TX or TX powered by RX)

Support PCM2.0, Audio sampling rate: 44KHz, 48KHz.

1 x 12V Power Supply

1 x HDMI Cable

1 x USB2.0 Cable

1 x User Manual






Input 1 x HDMI, 1 x USB, 1 x RJ-45
Output 1 x HDMI, 2 x USB Keyboard Mouse output, 2 x USB2.0 Hub output, 1 x RJ-45
Video Resolution DTV/HDTV: 480P/576P/720P/1080P VESA: 640x480, 800x600, 1024x768, 1280x1024, 1680x1050, 1280x720, 1360x768
Transmission Distance 50m(Max) over Single Cat5e/6 / 24AWG / Solid
USB Transmit Speed 480M bit/s (Max)
Material Metal
Operating Temperature Range -10 to 40°C (14 to 113°F)
Operating Humidity Range 5 to 90% RH
Power Supply AC 110V-240V 50/60HZ DC 12V
Dimension ( L x W x H ) 84.2 x 75.2 x 27.5 mm (TX or RX)
Mass (Main unit) 257.5g (Tx or Rx)
