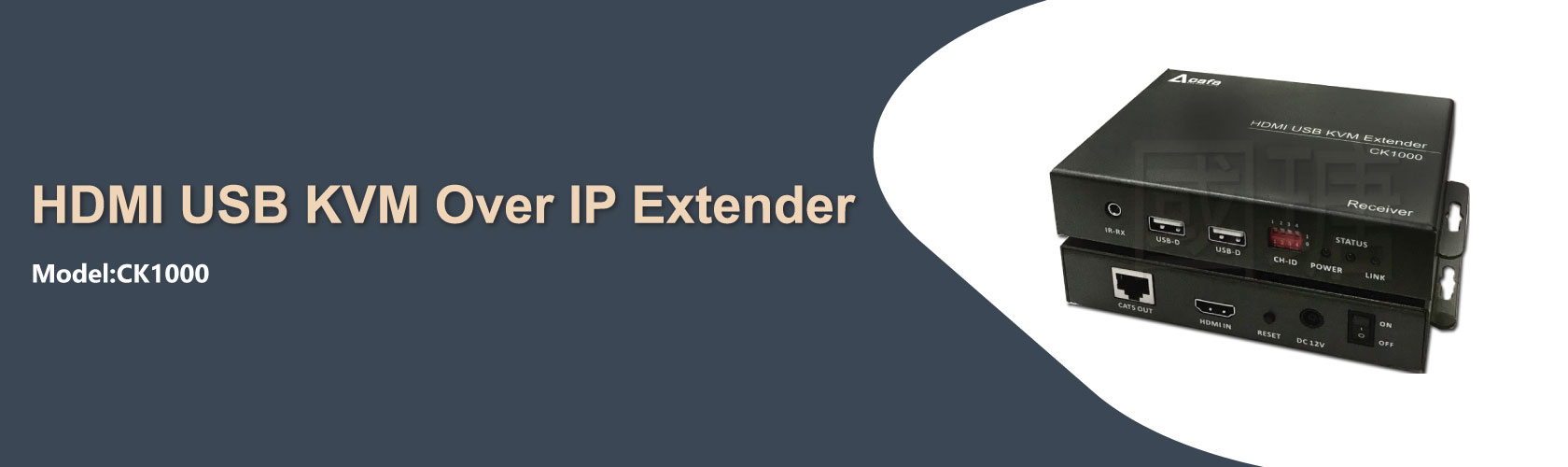

HDMI USB KVM Over IP Extender
Support Dual console, Multi-point display, 100 meters
CK1000
About CK1000
[CK1000] can extend the HDMI USB Keyboard / Mouse signal to 100meters over one single CAT5e/CAT6/CAT7 cable. It supports one way IR transmission, The max resolution can up to 1080P @60Hz.
With KVM function, It provided users to remote control the equipment. Also, this extender can connect to the network switch, then it can achieve one to many (Support Dual console and Multi-point display).
The CK1000 is popularly used in meeting room, military, bank, government, medical and so on fields.
Supports KVM function to realize remote control.
Over one single Cat5e/6 cable or IP up to 100m transmission.
Support all HD formats, the maximum resolution up to 1080P @60Hz.
Supports one way IR.
Support Dual console and Multi-point display.
Made in Taiwan.
2 x 12V 1.5A Power Supply
2 x IR Cable
1 x User Manual
| MODLE NAME | CK1000 |
|---|---|
| Input | 1 x HDMI, 1 x USB, 1 x IR, 1 x RJ-45 |
| Output | 1 x HDMI, 2 x USB, 1 x IR, 1 x RJ-45 |
| Video Resolution | Supports 1080P 60Hz and below |
| Housing material | Metal |
| Operating Temperature Range | 0 to 50°C (32 to 122°F) |
| Operating Humidity Range | 10 to 90% RH |
| Power Supply | AC 110V-240V 50/60HZ DC 12V 1.5A |
| Dimension ( L x W x H ) | 135 x 92 x 27 mm |
| Mass (Main unit) | 0.8 Kg (Tx+Rx) |

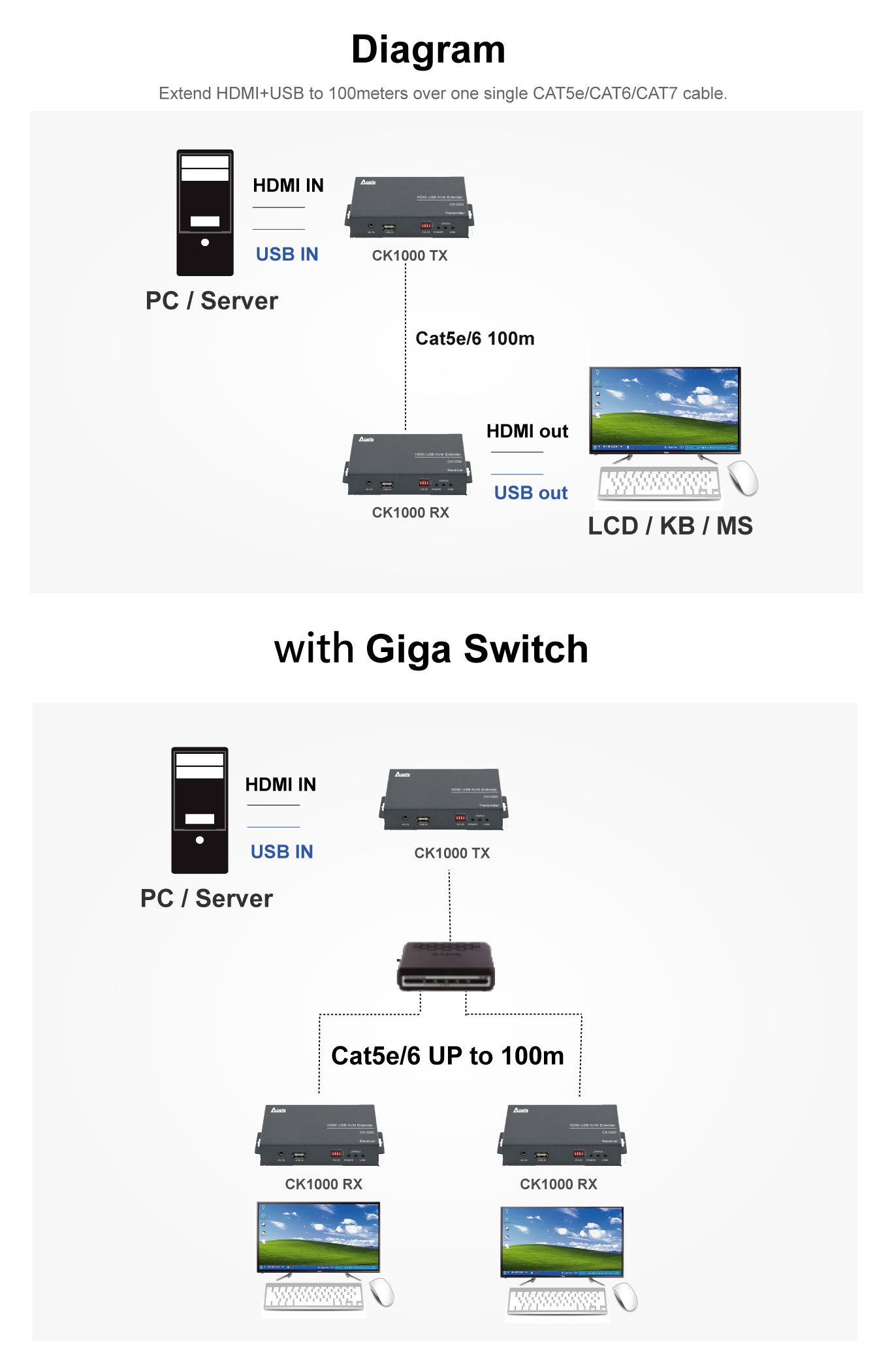

Diagram
