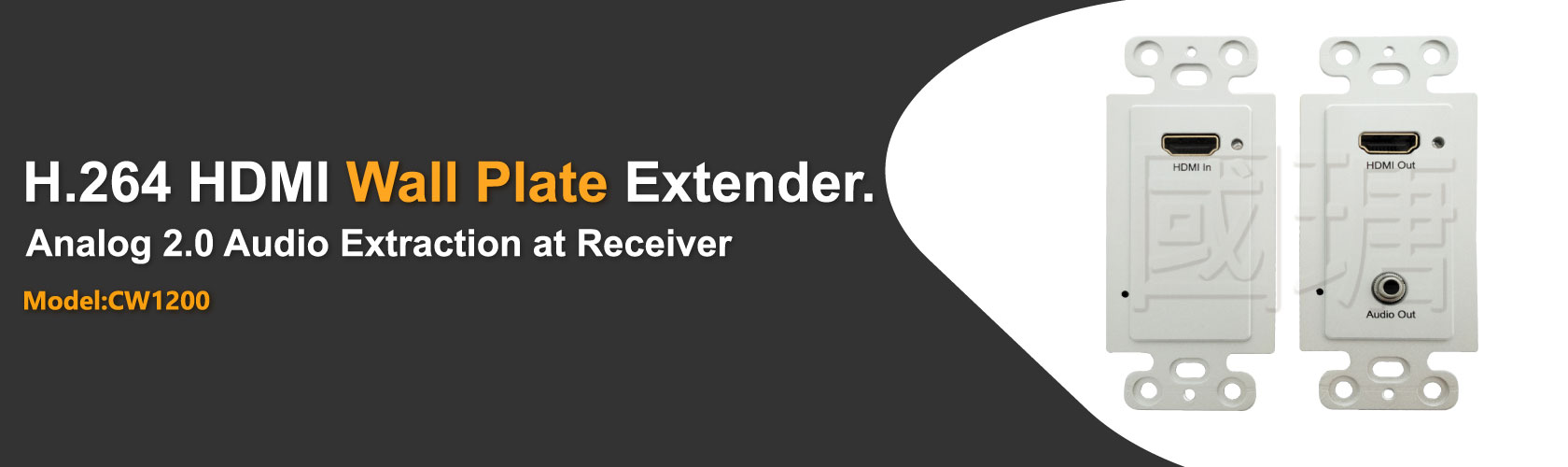

HDMI Wall-Plate Over IP Extender
CW1200
About CW1200
[ CW1200 ] mainly used to wall plate IP Extender, Can let HDMI Digital Audio / Video extended distance up to 120 meters between Transmitter and Receiver. And have Audio de-embedding function.
More important is it can support one to one, one to many modes, with large cascade, can use to architecture construction solution.
HDMI Digital Audio / Video extended distance up to 120 meters between Transmitter and Receiver.
Supports video high resolution up to 1920x1080, 1080P 60Hz.
UTP/STP cable termination follows the standard of IEEE-568B.
Comply with TCP/IP protocol, Streaming bit rate is 15Mbps.
Following North American Wall plate standard.
Support 3.5mm audio de-embedd function.
Support one to one, one to many modes, with large cascade.
Support LPCM audio format.
Support HDCP Compliant.
2 x 5V 1A
6 x Screws
1 x User Manual
| MODEL NAME | CW1200 |
|---|---|

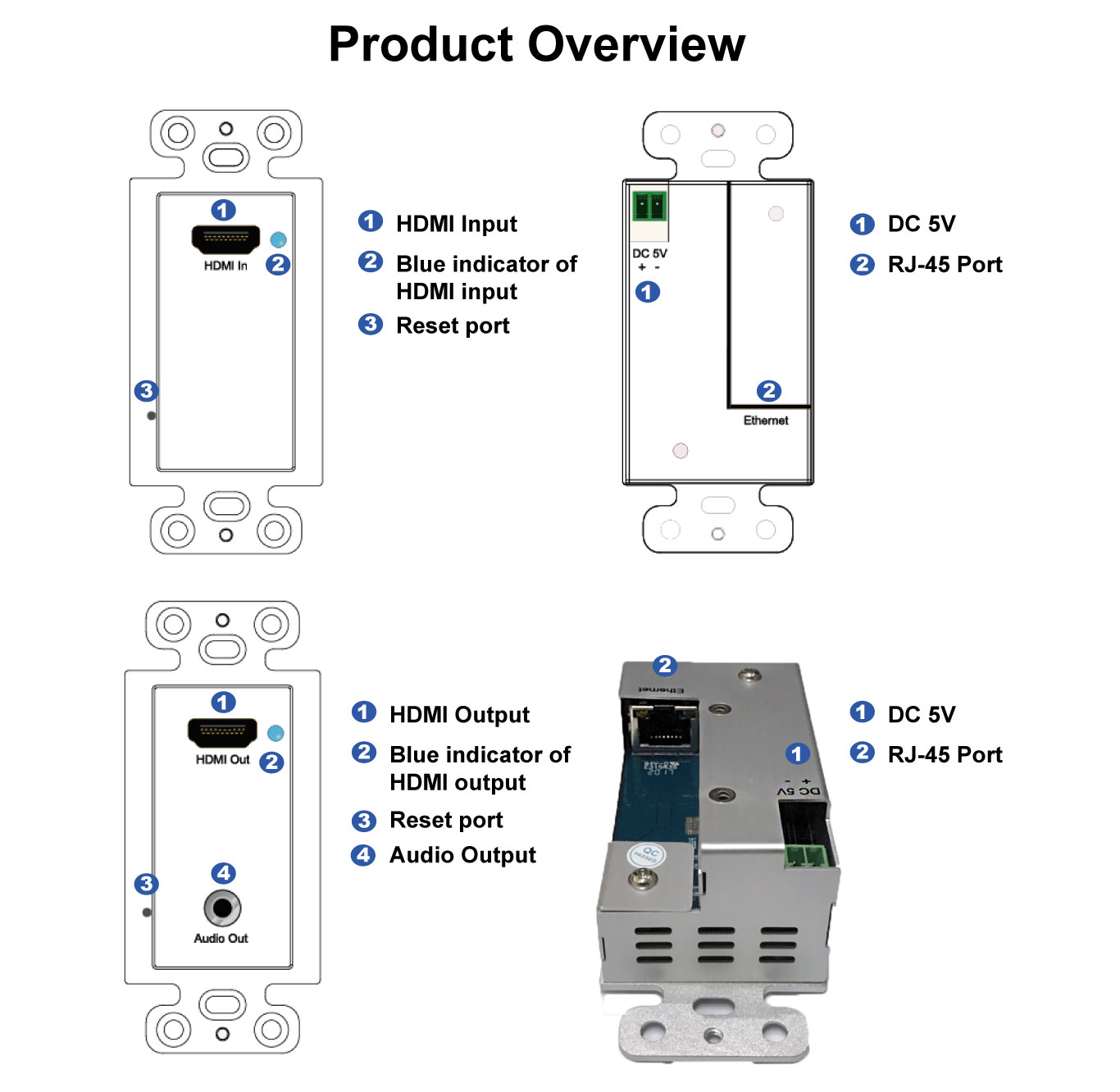

| Transmitter | 1 x HDMI input, 1 x RJ-45 output |
| Receiver | 1 x HDMI output, 1 x RJ-45 input, 1 x 3.5mm output |
| Protocol | H.264 encoder over TCP/IP |
| Video Resolution | 480i / 480p / 576i / 576p / 720p / 1080i / 1080p @60HZ |
| Support Audio format | LPCM, Audio sampling rate 48KHZ |
| Streaming Bit Rate | 15Mbps / 1080P |
| Dimension | TX: 70x115x40mm ; RX: 70x115x40mm |
| Weight | TX: 0.12KG ; RX:0.13KG |
| Power Consumption | TX: 4W RX: 3W |
| Power Supply | DC 5V 1A |
| Working Temp | -10 to +40 ℃ （+14 to +104℉） |
| Operating Humidity Range | 20 to 90%RH (No Condensation) |

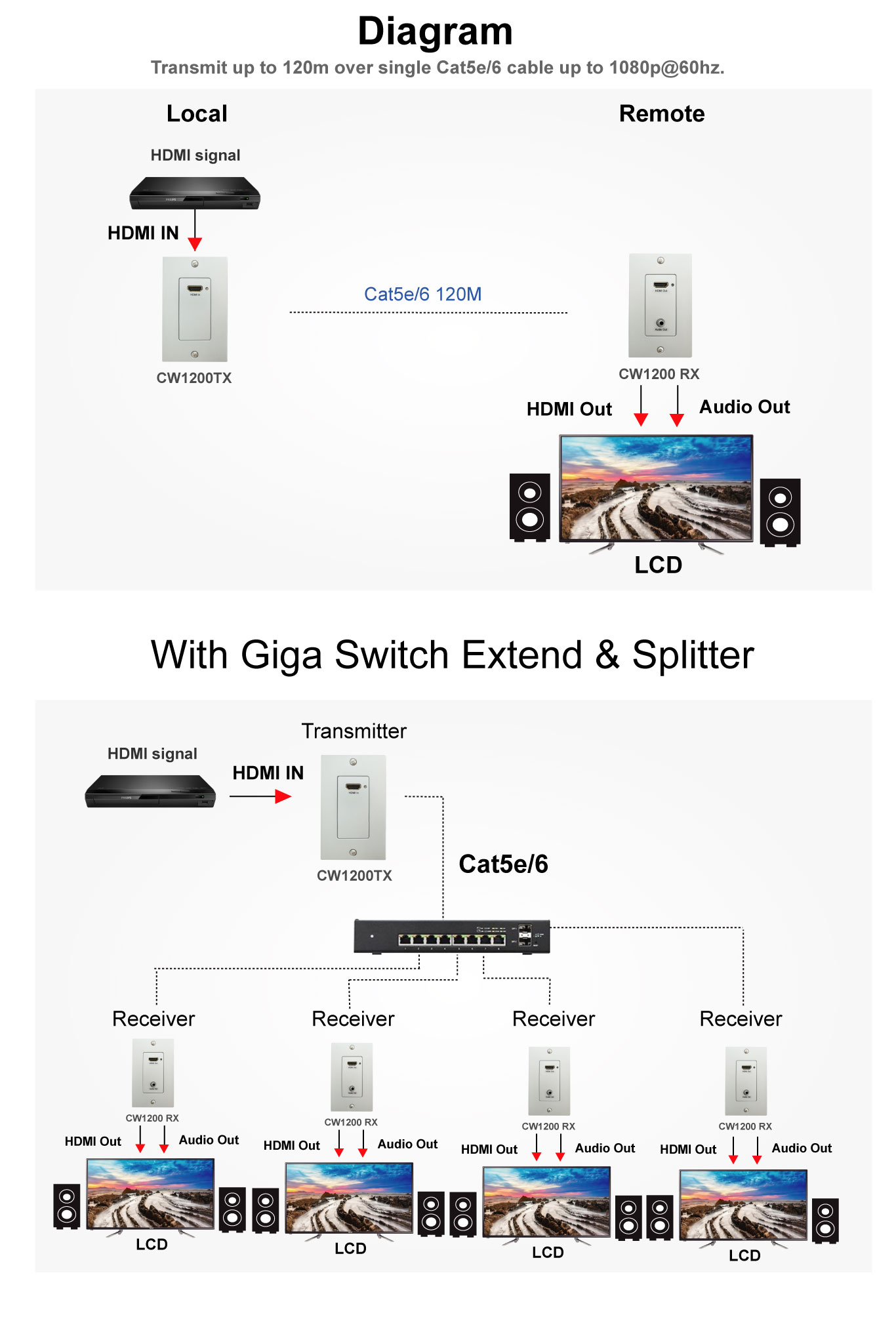

Diagram
