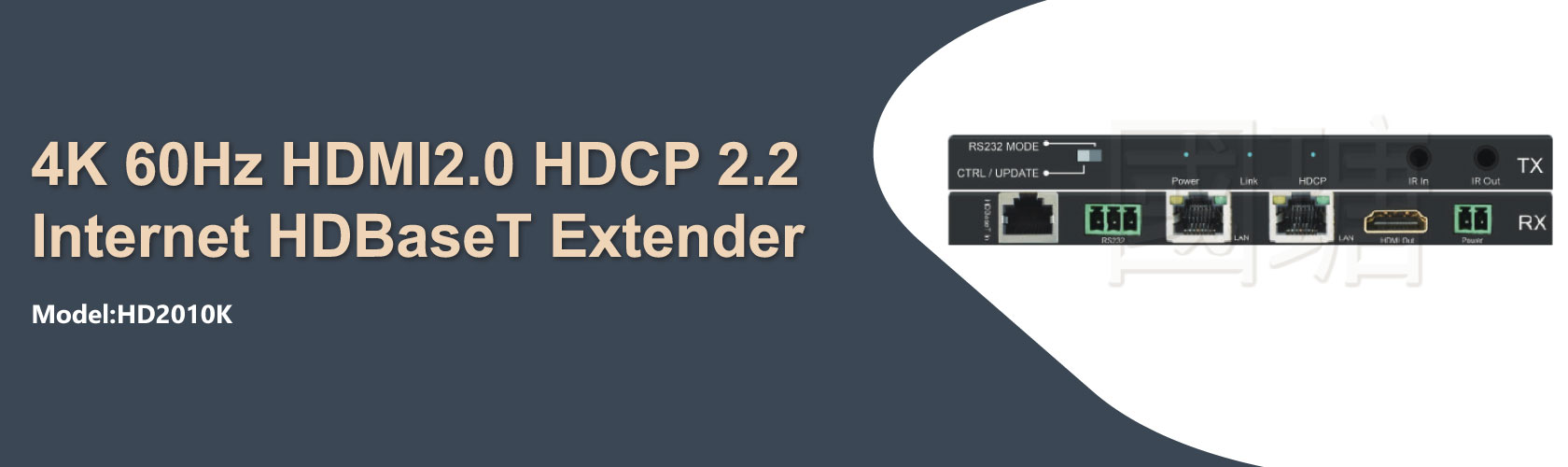

4K 60Hz HDMI2.0 & Internet HDBaseT Extender
YUV4:4:4 18Gbps HDR 100meters
HD2010K
About HD2010K
[ HD2010K ] 4K 60Hz HDMI2.0 Internet transmission signal through a Cat6/7 full 8-core network cable, can up to 100 meters, the highest resolution is 4K 60HZ YUV4:4:4 18Gbps HDR.
There are no compression and transmission delay by HDBaseT technology, and the picture quality is clearer than the general compression type extender.
Before, you need two network cable in long distance to solve HDMI signal and Internet signal problem. Now, you only need to use one network cable to easily transmit HDMI + Internet signal at long distance.
The Transmitter and the Receiver are all have built-in 2 x 100Mbps network ports, which can be connected to any Internet access device; and support bidirectional RS-232 port, bidirectional IR port and POE / POH single side power supply technology.
Advanced HDBaseT technology provides uncompressed video and audio with zero latency.
Transfer HDMI signals up to 328 feet (100 meters) using a CAT6a/7 cable (with a resolution of 4K/UHD).
Low cost and reliability of system installation with easy-to-integrate classification cables.
Support 100Mbps Ethernet interface.
Support HDR, Dolby Vison, 4K 60HZ 4:4:4.
Support two-way infrared function.
Support two-way RS232 function.
Support PoH / PoE
Compatible with HDCP 2.2.
1 x Power Adapter
4 x IR Cable
2 x Phoenix plugs for RS232 cable termination
1 x User Manual
| MODEL NAME | HD2010K |
|---|---|
| Transmitter port | 1 x HDMI2.0 in / 1 x HDBaseT / 2 x IR / 1 x RS-232 / 2 x RJ-45 (Internet) |
| Receiver port | 1 x HDMI2.0 out / 1 x HDBaseT / 2 x IR / 1 x RS-232 / 2 x RJ-45 (Internet) |
| HDMI signal | HDMI2.0, Compatibility HDCP 2.2 |
| Video Resolution | 480i/480P/576i/576P/720P/1080i/1080P/3D/4K Video resolutions: Up to 4K 60Hz 4:4:4 / Vesa resolutions: Up to DCI 4K (4096X2160) |
| Bandwidth | 18Gbps(w/ICT) |
| Bi-directional IR | 20~60KHz |
| Bi-directional RS232 | Phoenix plugs for RS232 |
| Dimension | 143 X 98 X 13mm |
| Power Supply | DC 48V 0.5A |
| Housing | Metal enclosure |
| Operation temperature | 0~55°C |
| Storage temperature | -10~70°C |

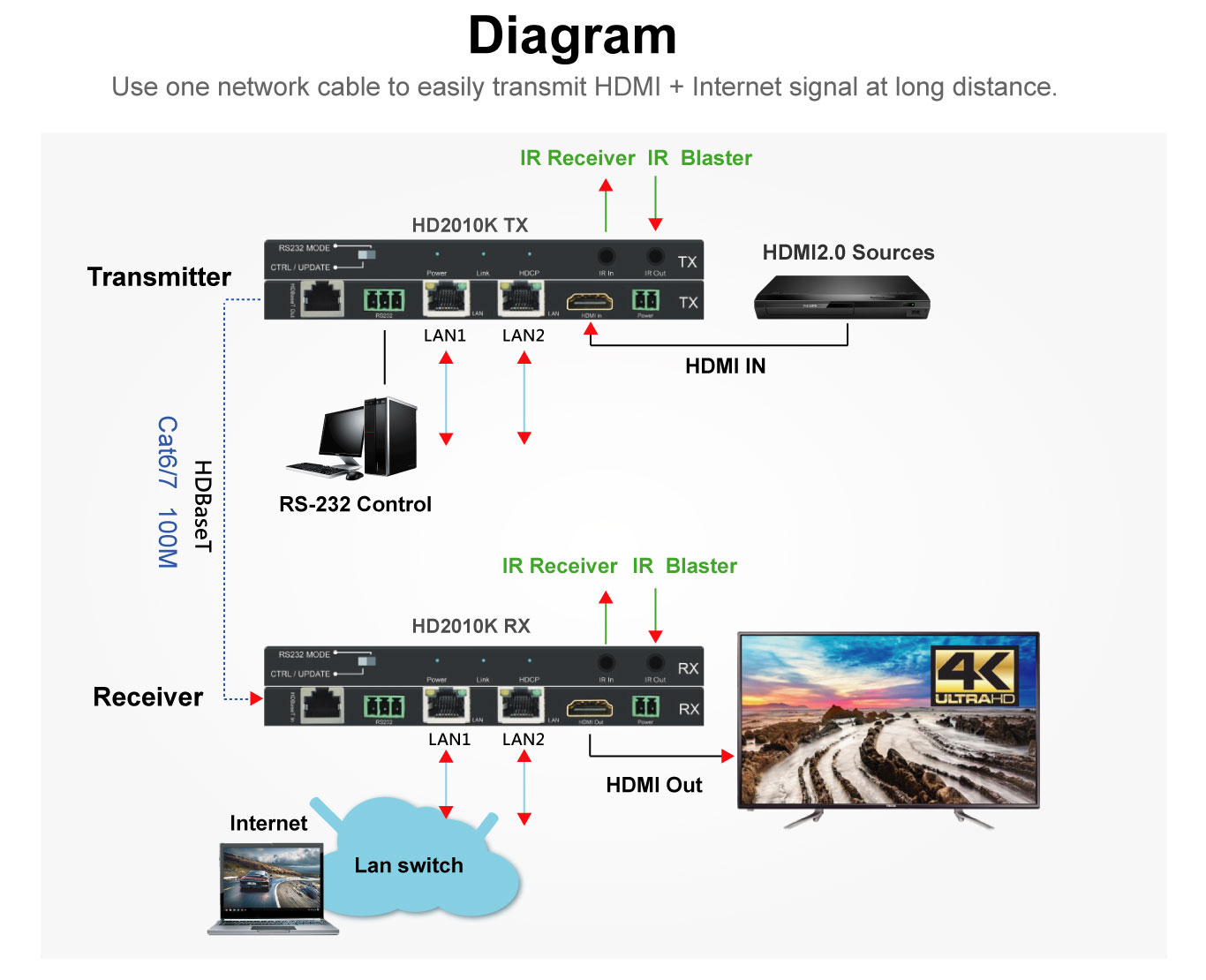

Diagram
