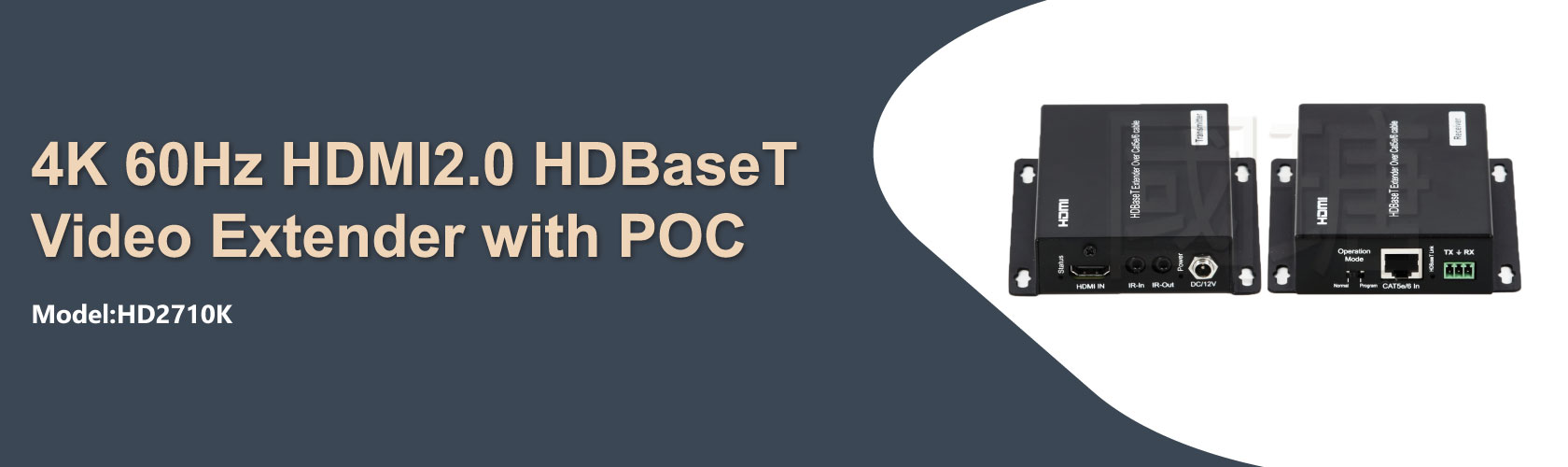

4K 60Hz HDMI2.0 Over Cat6 Extender
Support HDCP2.2, POC, CEC, RS232, Bi-directional IR
HD2710K
About HD2710
[ HD2710K ] There are one Transmitter and the other one is Receiver.they can up to 4K 60Hz signal by single Cat6 cable to achieve long distance transmission.
Besides , there are no compression and transmission delay by HDBaseT technology, and the picture quality is clearer than the general compression type extender.And Support POC( Receiver powered by Transmitter).
HD2710K-A Transmission distance reaches up to 100 meters under the video format of 1080P and 4K up to 70 meters.
HD2710K-B Transmission distance reaches up to 70 meters under the video format of 1080P and 4K up to 40 meters.
Supports resolutions up to 4K @60Hz.
4K 60Hz signal by single Cat6 cable to achieve long distance transmission.
UTP/STP cable termination follows the standard of IEEE-568B.
Support HDMI 2.0 / HDCP 2.2.
CEC pass through.
Phoenix RS232 Port for firmware update or RS232 control signal transmission.
Mounting ears supplied.
Support POC( Receiver powered by Transmitter).
With ESD protection inside.
Support wide-band Bi-directional IR (38KHZ to 56KHZ).
4K 60Hz signal Incorporates HDBaseT Technology.
1 x 12V 2A power supply (only for TX, RX can be powered from TX)
2 x IR TX unit. (IR emitter cable, 1 pcs for TX, 1 pcs for RX)
2 x IR RX unit. (IR receiver cable, 1 pcs for TX, 1pcs or for RX)
2 x Phoenix plugs for RS232 cable termination
1 x User Manual
| MODLE NAME | HD2710K |
|---|---|
| Transmitter | 1 x HDMI input, 1 x IR output, 1 x IR input, 1 x RJ45 output, 1 x Phoenix RS232 |
| Receiver | 1 x HDMI output, 1 x IR input, 1 x IR output, 1 x RJ45 output, 1 x Phoenix RS232 |
| Video Resolution | DTV/HDTV; 4K 60Hz/1080P/1080i/720P/576P/480P/576i/480i |
| Compliance | HDMI 2.0 / HDCP 2.2 |
| Audio | Support DTS-HD, Dolby-HD |
| Power Consumption | 2.5Watts (TX) 5Watts (RX) |
| Operating / Storage Temp | 0~70°C / -10~80°C |
| Power Supply | AC 110V-240V 50/60HZ DC:12V 2A, Power from TX to RX over Cat5/6 cable |
| Dimension ( L x W x H ) | 106 x 97 x 26 mm |
| Mass (Main unit) | 0.7Kg / 1.54lb (Pairs) |

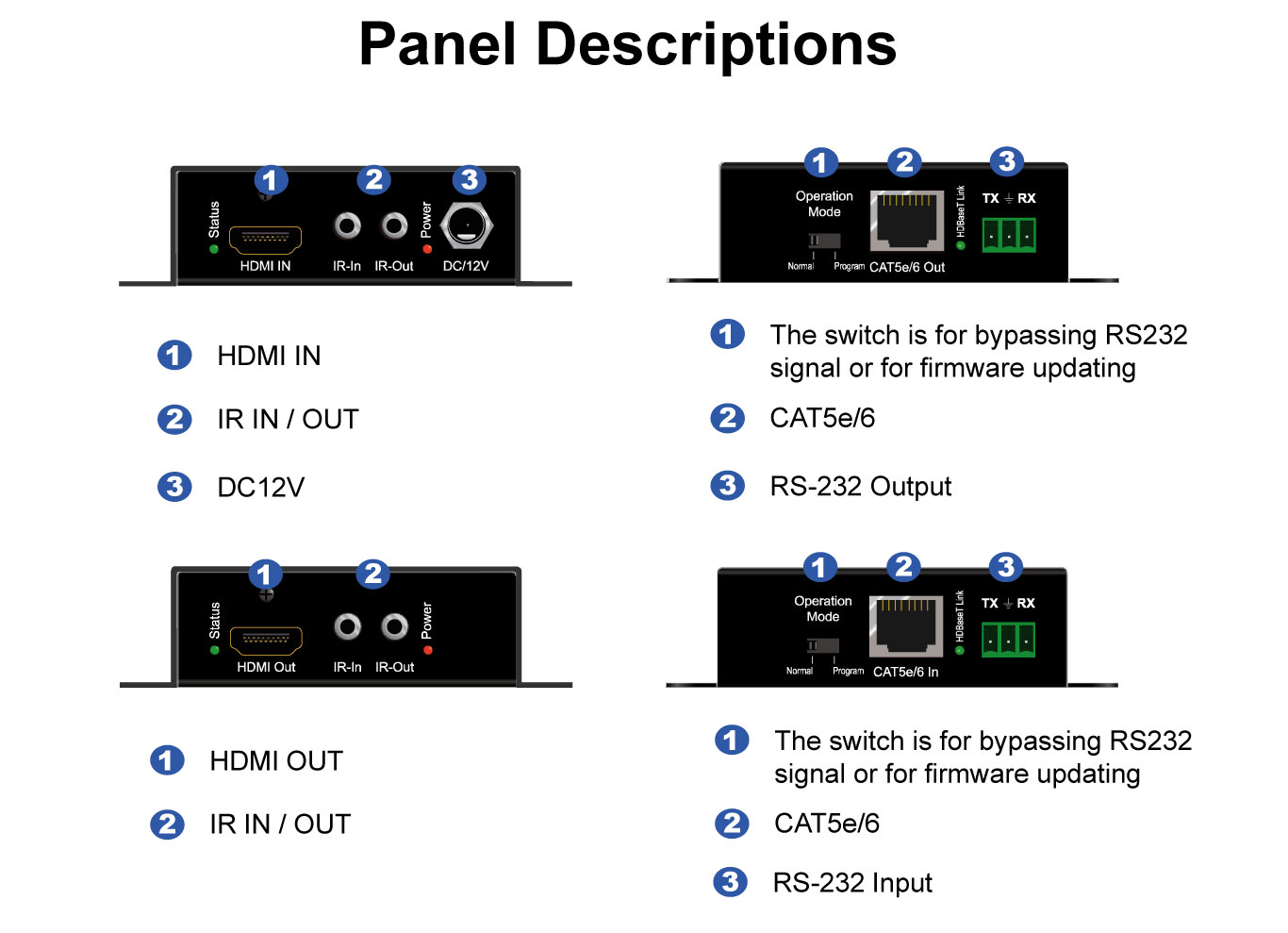

Diagram
