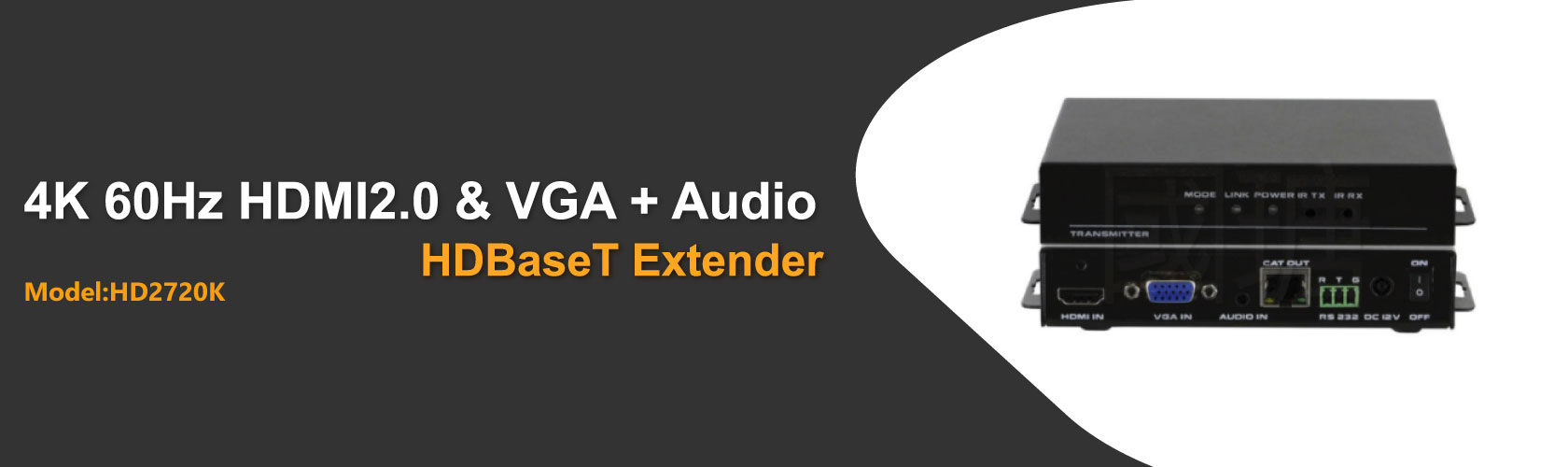

4K 60Hz HDMI2.0 & VGA HDBaseT Extender
POC Bidirectional IR/RS232 3.5mm Audio
HD2720K
About HD2720K
[ HD2720K ] is a 4K 60Hz HDMI+VGA HDBaseT extender. It can transmit 4K 60Hz HDMI2.0 signals through a single Cat6/7 full 8-core network route, up to 70 Meters (resolution 1080P) or 40 Meters (resolution 4K60HZ).
HDBaseT technology, uncompressed zero-latency transmission, can be used with other HDBaseT devices, such as Sony HDBaseT projectors.
Not only compatible with all HDTV resolutions HDMI2.0a protocol, but also supports Bi-directional RS232 and IR transmission for remote control. It also has a single-sided power supply (POC) function, users only need one side to supply power to transmit signals.
In addition, it also supports the embedding and de-embedding of 3.5mm audio, and built-in EDID management, providing users with more ways to handle different displays.
Through Cat6/7 cable network HDMI + VGA + IR + RS-232 + Audio signals transmitted to the remote players.
In the resolution of 1080P, transmission distances of up to 70 meters.
In a resolution of 4K 60HZ YUV4:4:4 18Gbps, transmission distances of up to 40 meters.
Pure hardware design, plug, and play, no need to install additional software.
It provides uncompressed zero-latency video and audio with advanced HDBaseT technology.
Support the HDMI2.0 HDCP2.2 version.
Support Bidirectional IR/RS232 function.
Support the EDID management function.
Support 7.1 DTS Master HD, Dolby True HD, 3.5mm audio embedding and de-embedding.
Support POC unilateral power supply.
Note : Please use Cat6/7 full 8-core network routing.
1 x DC 12V
1 x User Manual
| MODEL NAME | HD2720K |
|---|---|
| Transmitter port | 1 x HDMI2.0 in / 1 x VGA / 1 x HDBaseT / 1 x 3.5mm / 2 x IR / 1 x RS-232 |
| Receiver port | 1 x HDMI2.0 out / 1 x HDBaseT / 1 x 3.5mm / 2 x IR / 1 x RS-232 |
| HDMI signal | HDMI2.0, Compatibility HDCP 2.2 |
| Video Resolution | 480i / 576i / 480p / 576p / 720p / 1080i / 1920 x 1080p up to 60Hz / 3840/4096 x 2160 up to 60Hz |
| Bandwidth | 18Gbps |
| Bi-directional IR | 3.5mm |
| Bi-directional RS232 | Phoenix plugs for RS232 |
| Dimension | 152 X 100 X 27mm (Tx or Rx) |
| Power Supply | DC 12V 1.5A |
| Housing | Metal enclosure |
| Operation temperature | 0~50°C |
| Storage temperature | -20~75°C |

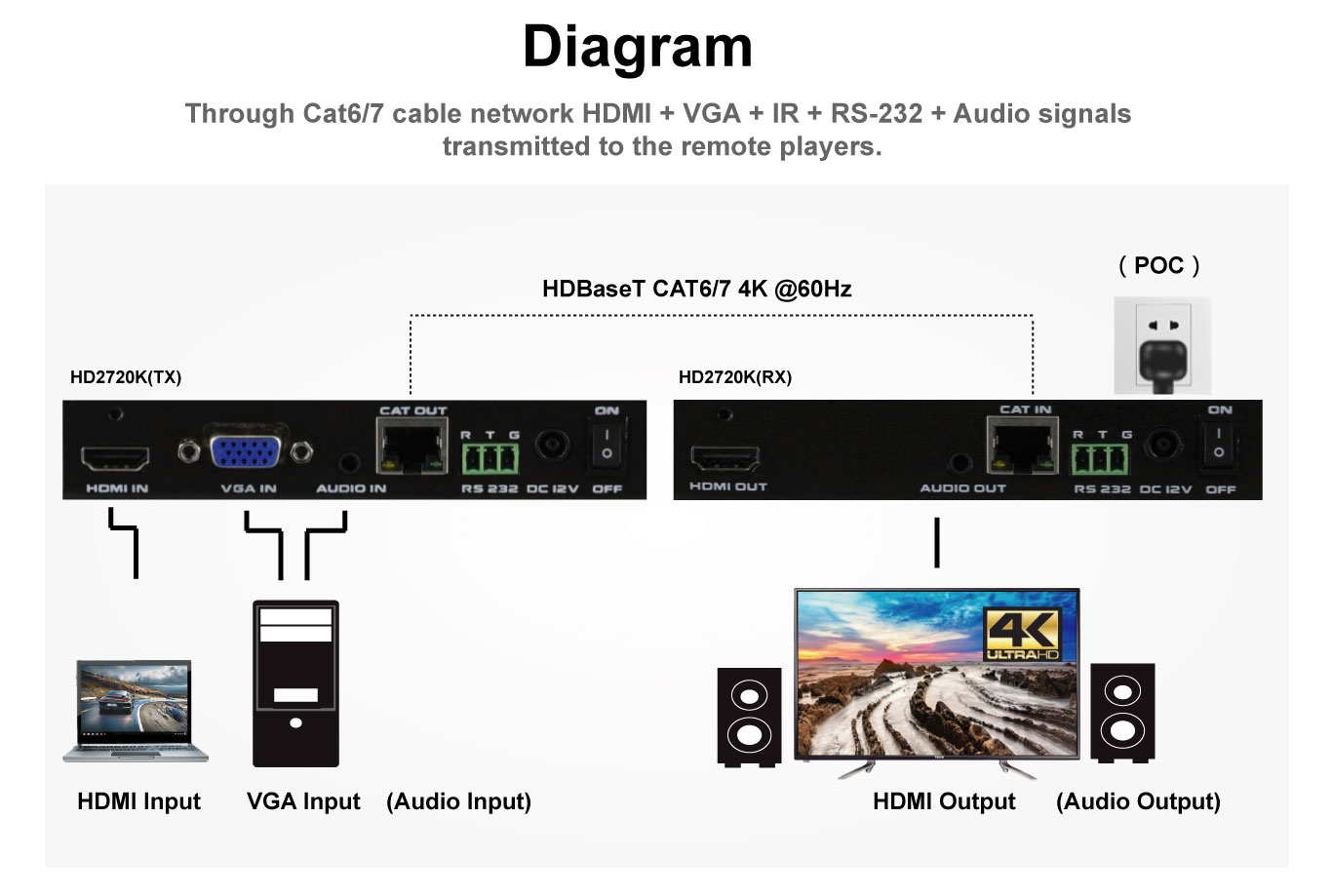

Diagram
