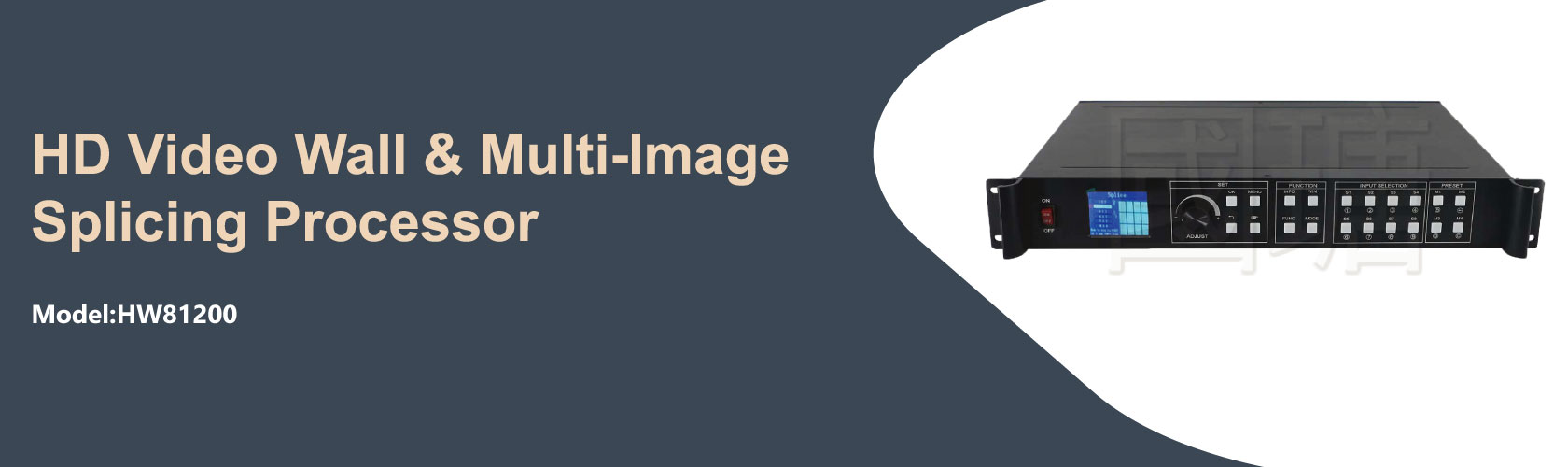

HD Video Wall & Multi-Image Splicing Processor

8 x 12 with Mixed input


HW81200

Description

HW81200 support 8 DVI-U inputs, which can receive DVI, HDMI, VGA and CVBS signals.and Support arbitrary stitching of up to 12 LCDs or DLPs.

Multiple Splicing Modes:HW81200 can  display 8 same or different signal images on the 12 splicing screen simultaneously,and size, location and hierarchical relationship of each image can be adjusted independently.

Support output port mapping, allowing blind-mate: HW81200 supports output port mapping, allowing casual connection of 12 output ports without considering the physical and logic locations of the display unit. Users can directly adjust logic locations through equipment or PANIO soft keys to make the splicing wall display images correctly.

Seamless Switching Between Signals : Support fade-in fade-out special effect or instant seamless switching of any signal, eliminating black frame, blue screen and so on.

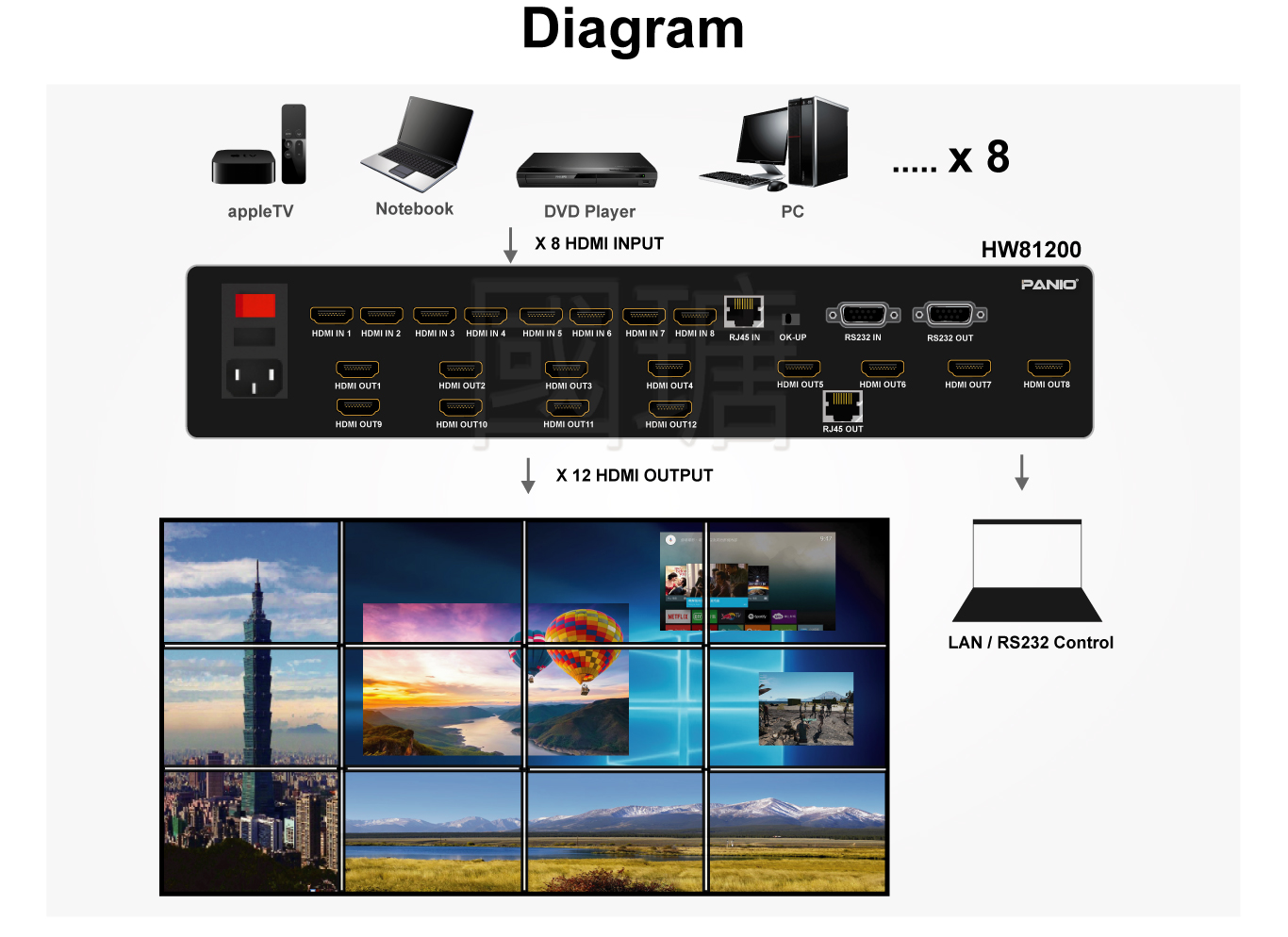

Diagram








New Products


8 DVI-U inputs (DVI-U supports DVI/HDMI/VGA/CVBS).

Support arbitrary stitching of up to 12 LCDs or DLPs.

Arbitrary layout of 8 images.

Keys and color display screen on the front panel, allowing quick setting without software installed.

Support signal echoing and view real-time input and output signals by software, enabling WYSIWYG.

All 60Hz image processing, achieving smooth and non-tearing images.

Support output port mapping, allowing blind mating.

1 x HW81200

1 x Power Cord

1 x User Instructions





User Manual





MODLE NAME HW81200
Input 8 x DVI-U Support DVI/HDMI/VGA/CVBS,
Compatible with HDMI1.3 and lower version, EDID version 1.3 Support up to 1920×1200@60Hz, downwardcompatibility.
Output 12 x DVI-D (24+1) Support DVI/HDMI ,
Support common output resolutions: 1024×768@60Hz till 1920×1080@60Hz Support 60Hz/50Hz/30Hz output frame rates
Splicing Output 12 outputs support splicing mode of arbitrary form, such as: 3×4, 2×6etc.
8-image Display Render 8 or fewer images on screen at the same time, which can come from the same or different input signals.
Each image can be freely zoomed and arranged. Images can overlap each other
Ethernet Monitoring HW81200 signal image can be gained on computer at real time by KYSTAR controlsoftware
which includes both input signal and output signal.
Special Effect Switch When switching signal, users can choose fade-out effect or quick direct switching
PC Control RS232/RJ45 Ethernet
Size (mm) 66(H)×432(L)×256(D)
Weight (Kg) 4 Kg
Work Environment Temp:0-40℃; Humd: 0-95%
Input Power 100-240 VAC, 47- 63 Hz, ≤2A
