VGA / USB KVM Extender Over Cat5e/6
Support 200meter, Security Console Switch
KE200U
About KE200U
The USB KVM Extender，KE200U allows you to extend source computer’s VGA and USB keyboard / mouse upon maximum 200 meter distance to one monitor or projector.
With the built-in VGA and keyboard / mouse signals enhancement，You can gain the best video resolution quality.
It also have security console option: local console / remote console / both consoles, which you can control the system more convenience and safely.
Uses easy to install, Inexpensive CAT5e/6 cables.
Control your system through USB connection from both local and remote console.
Push button at local side to select active console.
Available active console option: local console / remote console / both consoles.
Support connection of USB keyboard / mouse for local and remote console.
Support connection of USB / PS/2 interface to computer at local side.
Support high resolution video - Up to 1280x1024 @ 60Hz for distances of up to 200 meters.
Support VGA, SVGA and multisync monitors.
Adjustable control of focus, brightness to improve video quality at remote side.
Support DDC2B for remote monitor.
No software or driver installation required.
Support BIOS level operation.
LEDs on each device to indicate the active console and connection status.
Made in Taiwan.
Suggest use STP Cat5 cable because use other poor quality cable may lead to signal weaken that unable to achieve the satisfactory performance.
2 x 5V 2A
1 x USB & PS/2 & VGA Cable
1 x User Manual
| MODLE NAME | KE200U |
|---|---|

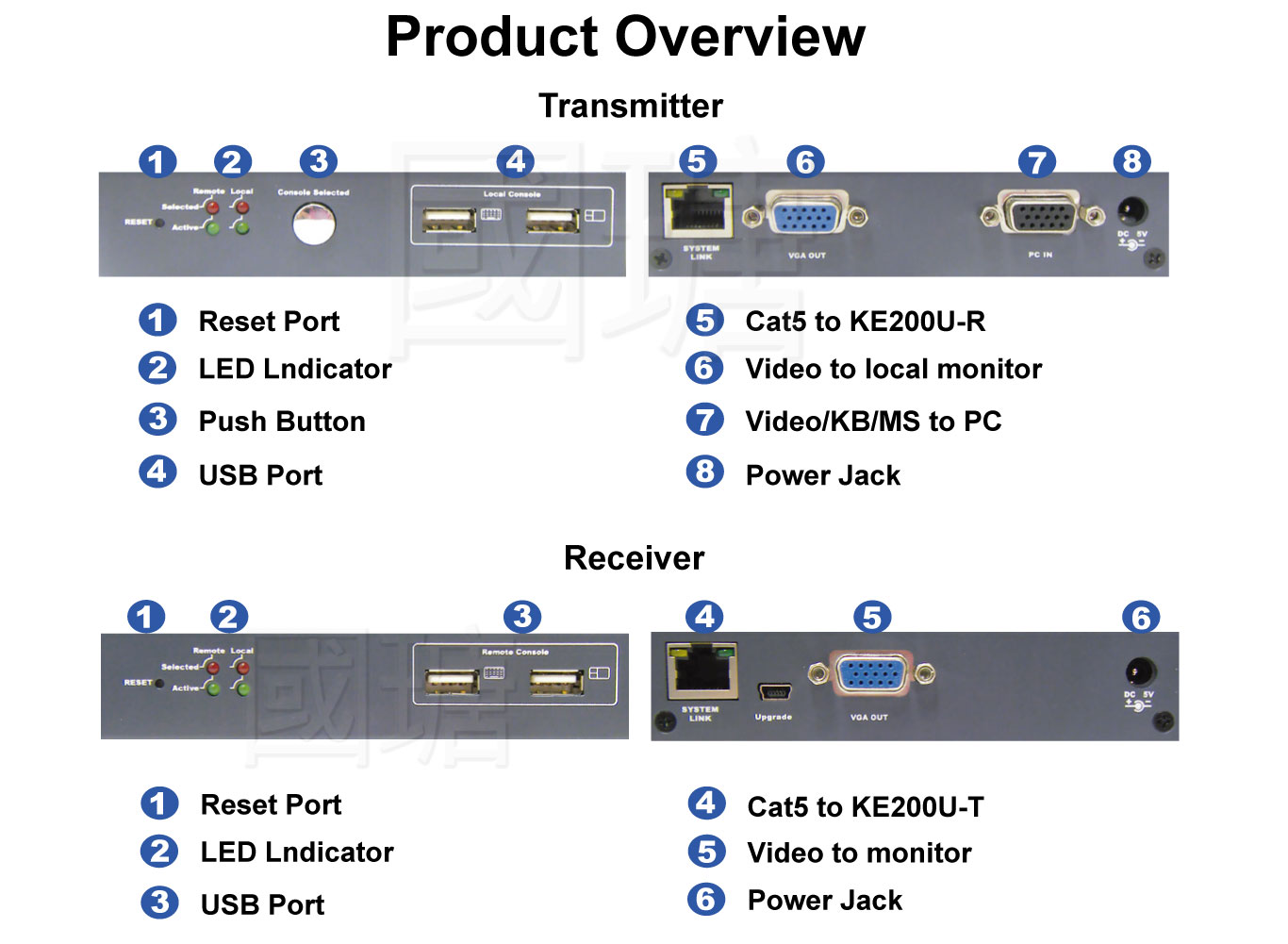

| Transmitter | 1 x HDB-15 input (Inclue VGA & USB HID), 1 x VGA output, 2 x USB output, 1 x RJ-45 output |
| Receiver | 1 x VGA output, 2 x USB output, 1 x RJ-45 input |
| Local / Remote switch Button | Transmitter have button |
| Max Video Resolution | 1280 x 1024 (60HZ), 200m |
| Extension Cable Type & Length | CAT5, CAT5E, CAT6. Max Length: 200M |
| DDC, DDC2 monitor | Remote Support DDC2B |
| Firmware Upgrade | Available at remote side |
| Operating Temp | 32~ 122°F (0~ 50°C ) |
| Humidity | 0% ~ 80% RH |
| Power Supply | AC 110V-240V 50/60HZ DC:5V 2A |
| Dimension ( L x W x H ) | T: 127 x 67.2 x 27.5 mm / R: 127 x 67.2 x 27.5 mm |
| Mass (Main unit) | T: 300g / R: 350g (Pairs) |

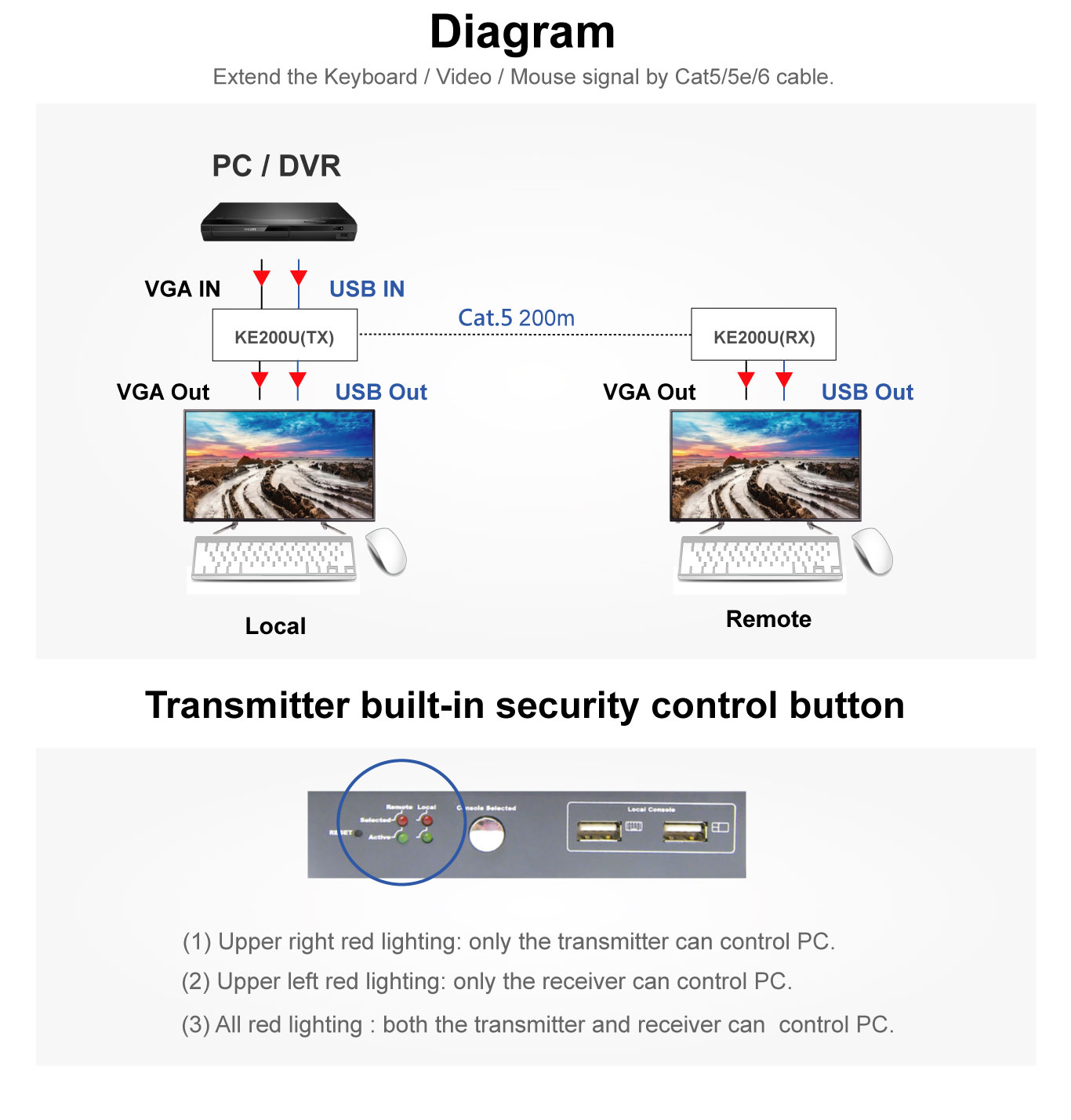

Diagram
