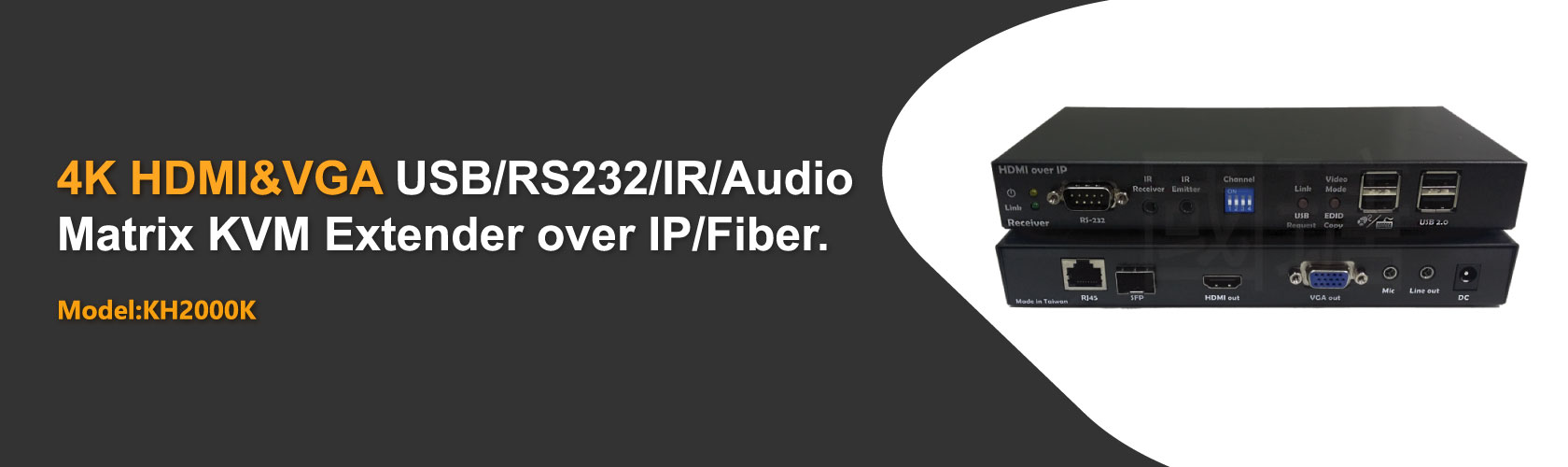

4K HDMI KVM over IP & Fiber Extender

Support USB2.0, RS-232, IR, Audio, HDR

KH2000K



HDMI, VGA, USB2.0, RS-232, bi-directional stereo analog audio, and bi-directional IR Over IP & SFP Fiber.

Transmission distance reaches up to 120 meters by Cat6 cable.

HDMI or VGA Input, Output to both VGA and HDMI simultaneously.

HDMI (non-HDCP protected) in to VGA out.

Supports resolutions up to 4Kx2K. (4K 60Hz(YUV420) Input to 4K 30Hz or 1080P 60Hz Output)

UTP/STP cable termination follows the standard of IEEE-568B.

Output to both HDMI and Line Out simultaneously.

Support HDR passthrough.

Support HDCP 1.4 & (Customized service) HDCP 2.2.

Supports RS-232 (Serial port).

LPCM 7.1 audio , Dolby® TrueHD , and DTS-HD Master Audio™.

Supports Local VGA port output.

Lip-Sync pass-through.

Supports any size video wall to 90, 180, 270 clockwise image rotate and selectable stretching type.

Supports tearing free in single host mode / Accurate frame gap compensation / and Pixel-wise accurate panning.

4K to 2x2 1080P wall.

Supports up to 16 Senders (DIP Switch) or 250 Senders (Command mode).

Supports just over 65,000 Receivers.

Mode button on receiver for sharpness or motion optimization of image.

PoE supported ( Optional ).

SFP Cage for Fiber (3.3V Optional)

Network Bandwidth: Up to 850Mbps.

Made in Taiwan.

2 x 12V 1A

1 x User Manual





MODEL NAME KH2000K
Transmitter 1 x HDMI input, 1 x VGA input, 1 x VGA output, 1 x IR input, 1 x IR output, 1 x RJ45 Giga port output,
1 x SFP Fiber, 1 x RS232 serial port, 1 x 3.5mm input, 1 x 3.5mm output, 1 x USB type B female, 1 x DIP
Receiver 1 x HDMI output, 1 x VGA output, 1 x IR input, 1 x IR output, 1 x RJ45 Giga port input, 1 x SFP Fiber,
1 x RS232 serial port, 1 x 3.5mm input, 1x 3.5mm output, 2 x USB2.0 Hub, 2 x USB K/M port, 1 x DIP
Max Video Resolution 4K 60Hz (YUV420) Input to 4K 30Hz Output
Extension Cable Type & Length CAT.5e / CAT.6 / Giga switch Max.Length: 120m
Power Supply AC 110V-240V 50/60HZ DC:12V 1A

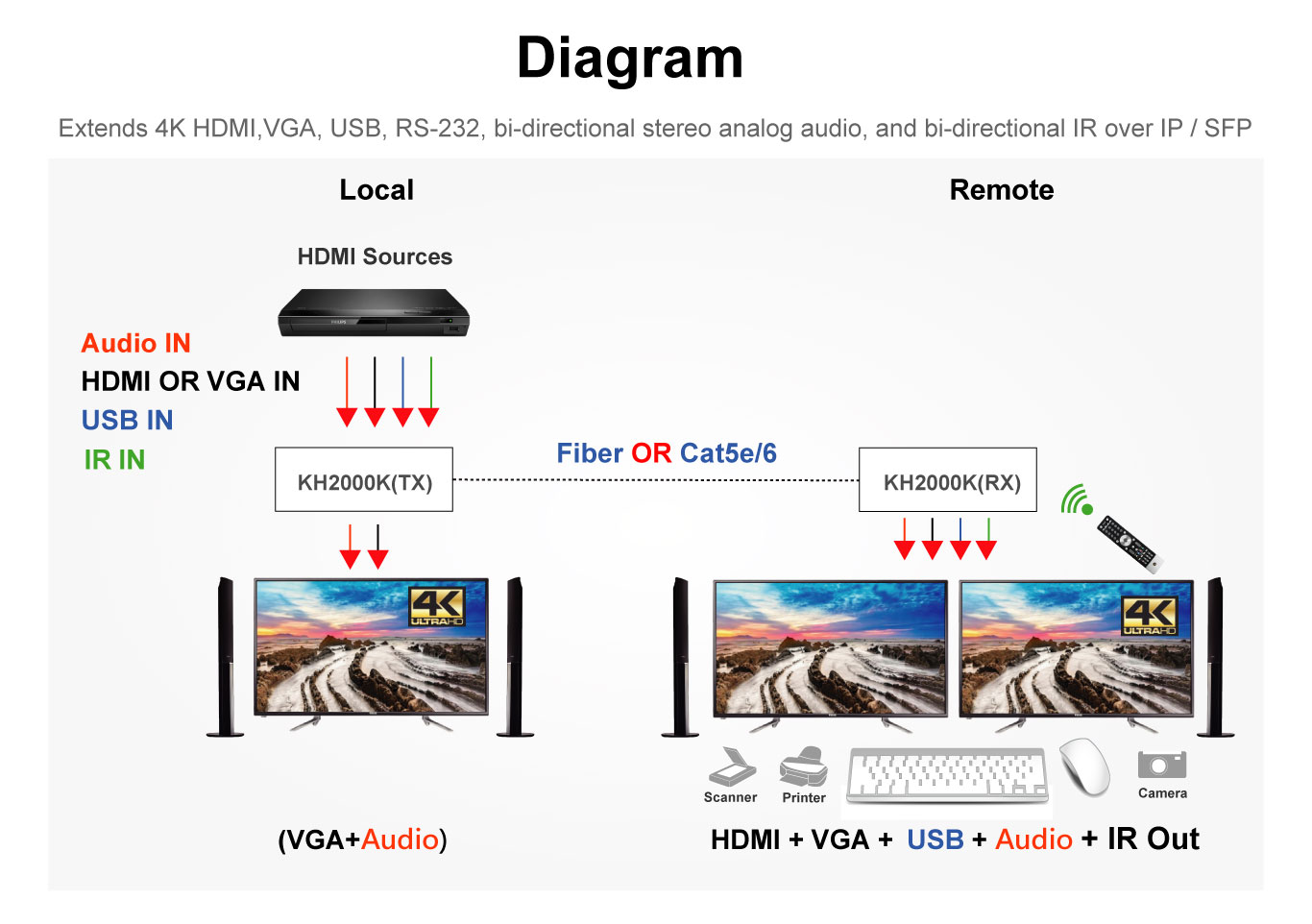

Diagram
