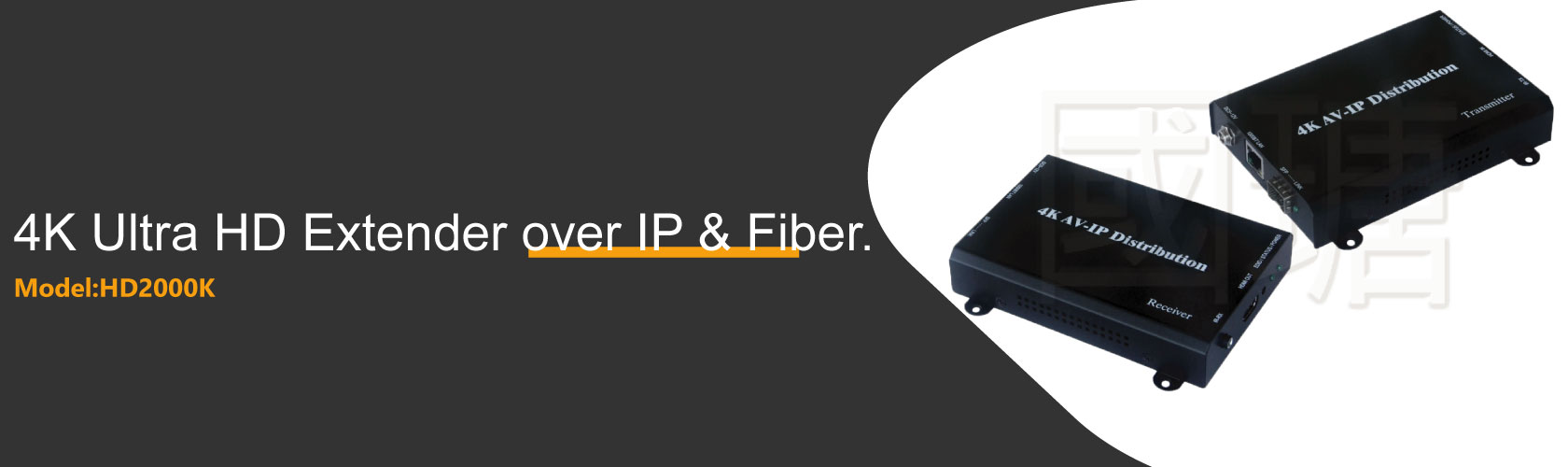

4K Ultra HD Extender over IP & Fiber


HD2000K


Description

The HD2000K 4K UHD IP Distribution is composed of Transmitter and Receiver to extend and distribute the 4K 30Hz HDMI with IR control signals over Gigabit Ethernet, not only support RJ45 connector but also SFP optical module, so you can send a 4K source to multiple displays without the limitation on quantity and distance.

The HD2000K is absolutely the first choice when the installers want to set up a one‐to‐one or one‐to‐many digital signage, it’s amazing to have the ability connecting displays as many as you want and supporting distance as long as you need.

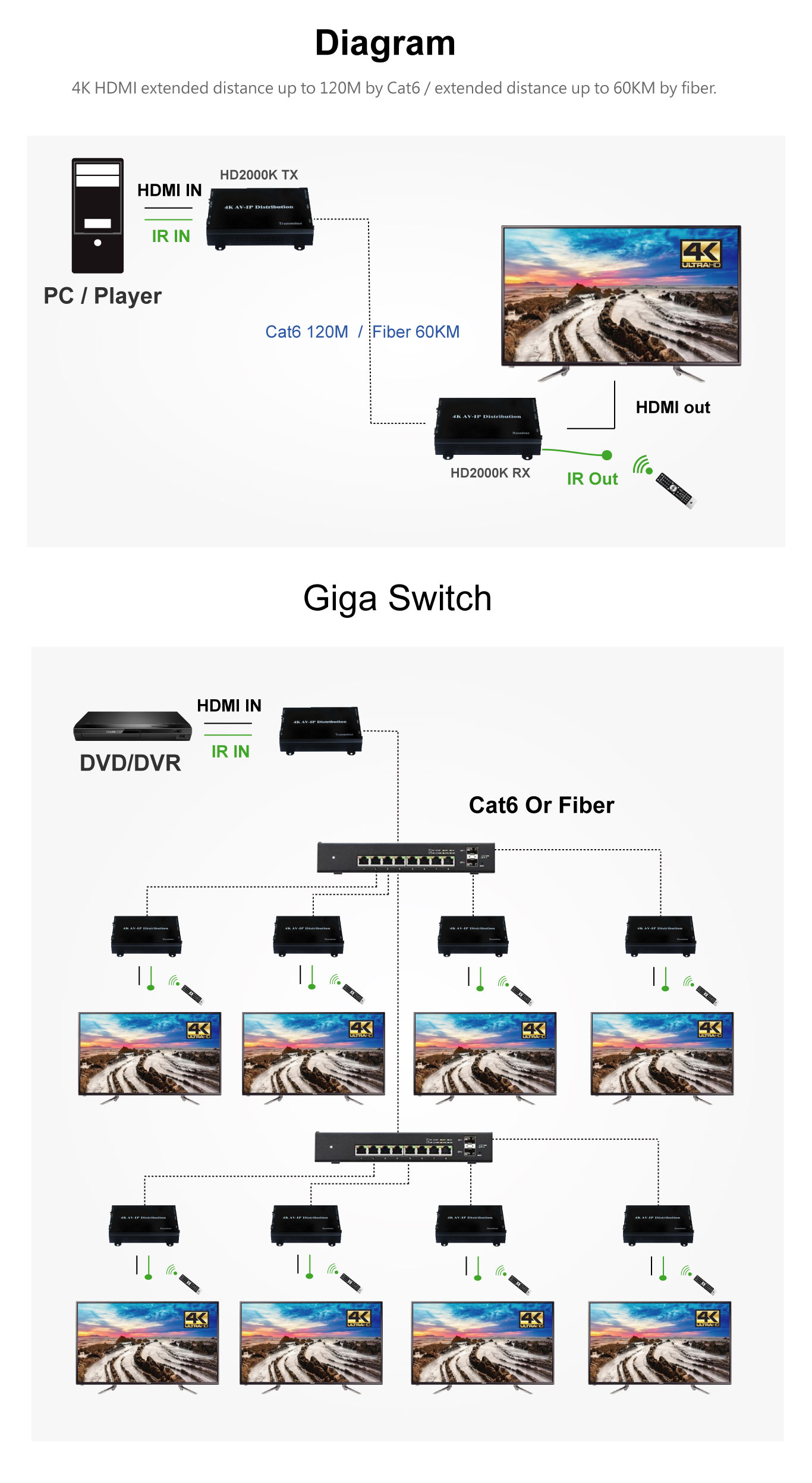

Diagram


New Products


4K HDMI extended distance up to 120M by Cat6 between Transmitter and Receiver or Giga Switch.

4K HDMI extended distance by SFP Depending on the capability of the optical module.

Supports resolutions up to 3840x2160 @30Hz.

Support HDMI 1.4b / HDCP 1.4.

Support EDID management.

Made in Taiwan.

2 x 5V 2A 變壓器

1 x User Manual





Datasheet





MODLE NAME HD2000K
Transmitter 1 x HDMI input , 1 x SFP output , RJ-45 x 1 output , 1 x IR output
Receiver 1 x HDMI output , 1 x SFP input , RJ-45 x 1 input, 1 x IR input
Video Resolution 3840x2160 30Hz
Compliance HDMI 1.4b / HDCP 1.4 / RoHS
EDID EDID Button (Press for 3 sec to copy EDID to TX)
LAN Bandwidth 850Mbps
Operating / Storage Temp 0~70°C / -10~80°C
Power Supply AC 110V-240V 50/60HZ DC:5V 2A
Dimension ( L x W x H ) 133 x 110 x 25 mm
