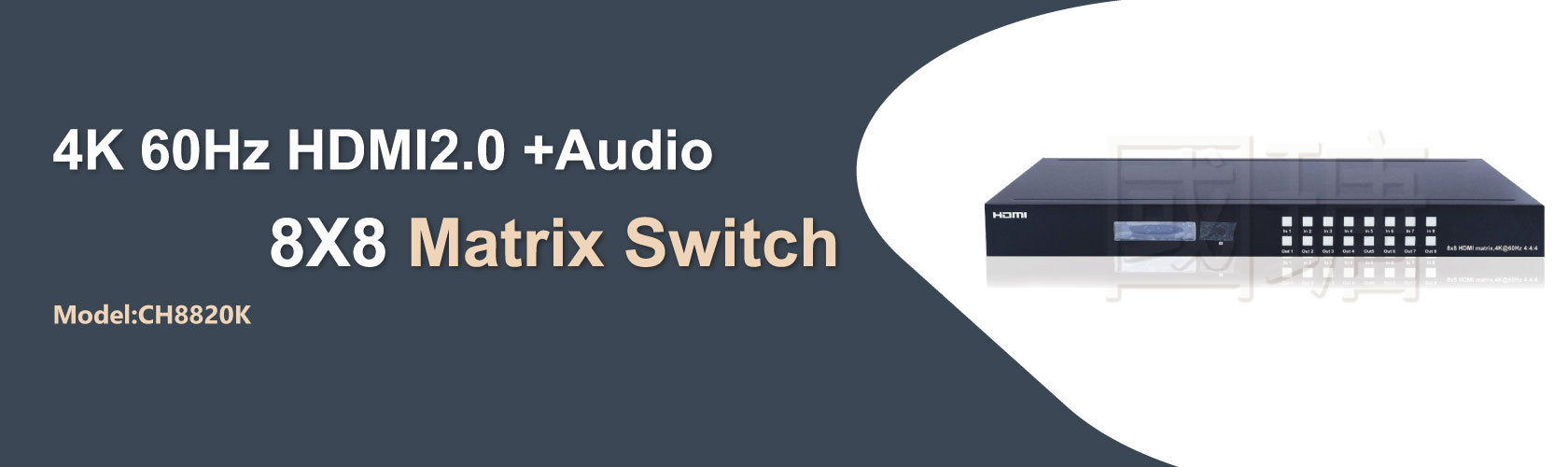

8X8 4K HDMI2.0 Matrix Switch
Support 4K60Hz, RS232, TCP/IP Control, SPDIF
CH8820K
About CH8820K
PANIO [CH8820K] allows 8 sets of different HDMI digital signals to be displayed interactively on 8 HDMI video display devices.
Built-in SPDIF Audio output, you can use a variety of control methods: panel buttons, remote control, RS-232 control port, TCP/IP port to switch.
Support EDID (Extended Display Capability Identification); adopt the latest HDMI2.0 specification, support 4K 60Hz YUV4:4:4 and HDR10.
This product is easy to use and provides excellent flexibility and control in a variety of multimedia applications.
8-in 8-out HDMI2.0 matrix switcher, which can be easily switched by manual and remote control.
Supports HDMI 2.0, HDCP 2.2, resolution up to 4K 60Hz YUV 4:4:4, 3D.
Supports high bandwidth 18Gbps, and HDR10.
Support SPDIF audio output, achieve audio and video separation technology.
Support EDID automatic adjustment function.
To ensure the stability of the power supply, built-in lock-type power connector.
Centralized control function. A single control unit can control multiple matrixes.
Supports Dolby True HD and DTS-HD master audio sources.
Control method: remote switch, RS-232, panel control and TCP/IP control.
Supports 19" rack size.
1 x 12V Power Supply
1 x Remote Controller (Battery not provided)
1 x CD
2 x Rack ears
1 x User Manual
| MODLE NAME | CH8820K |
|---|---|
| Input | 8 x HDMI |
| Output | 8 x HDMI, 8 x SPDIF |
| Video Resolution | 480p@60hz, 576P@50hz, 720P@60hz, 1080P@24hz, 1080P@50hz, 1080P@60hz, 4K@24hz, 4K@30hz, 4K@60hz YUV4:2:0, 4K@60hz YUV4:4:4 |
| Bandwidth | 18 Gbps |
| Control mode | Remote Controller, Button, RS-232, TCP/IP |
| HDMI signal | HDMI2.0、HDCP2.2、EDID |
| Power Supply | AC 110V-240V 50/60HZ DC 12V |
| Dimension ( L x W x H ) | 440 X 220 X 44.5mm |
| Mass (Main unit) | 2.8 Kg |
Diagram
