4 Screens Video Wall Controller
Supports HDMI/ VGA/ Composite/ USB input
HW2210
About HW2210
The HW2210 provides 4 screens TV wall and can be combined to 1 X 4, 4 X 1, 1 X 3, 3 X 1, 1 X 2, 2 X 1 , 2 X 2 video wall display.
Supports mashup signal input ( HDMI / VGA / Composite / USB) Switches the sync output to 4 HDMI displays.
Built-in 2 x 2, 4 X 1, 1 X 4, 1 X 2, 2 X 1, 1 X 3, 3 X 1 TV wall stitching function.
Supports mashup signal USB/VGA/Composite/HDMI switching input and synchronous output to 4 HDMI displays.
Supports screen 180° rotation function.
Can be used as 4 in 4 out switch + sync splitter.
Supports 3.5mm audio output.
The resolution is up to 1080P 60Hz.
Supports remote control / RS-232 control.
1 x 12V Power Supply
1 x Remote Controller (battery not provided)
1 x User Manual
| MODLE NAME | HW2210 |
|---|---|
| Input | 1 x HDMI, 1 x USB, 1 x VGA, 1 x AV |
| Output | 4 x HDMI |
| Video Resolution | DTV/HDTV: 1080P @60HZ、720P @60HZ、1024x768 @60HZ |
| Video Wall mode | 2x2 1x3, 1x4......4x1 video wall |
| Control mode | IR, RS-232 |
| Power Supply | AC 110V-240V 50/60HZ DC 12V |
| Dimension ( L x W x H ) | 270 X 160 X 45 mm |

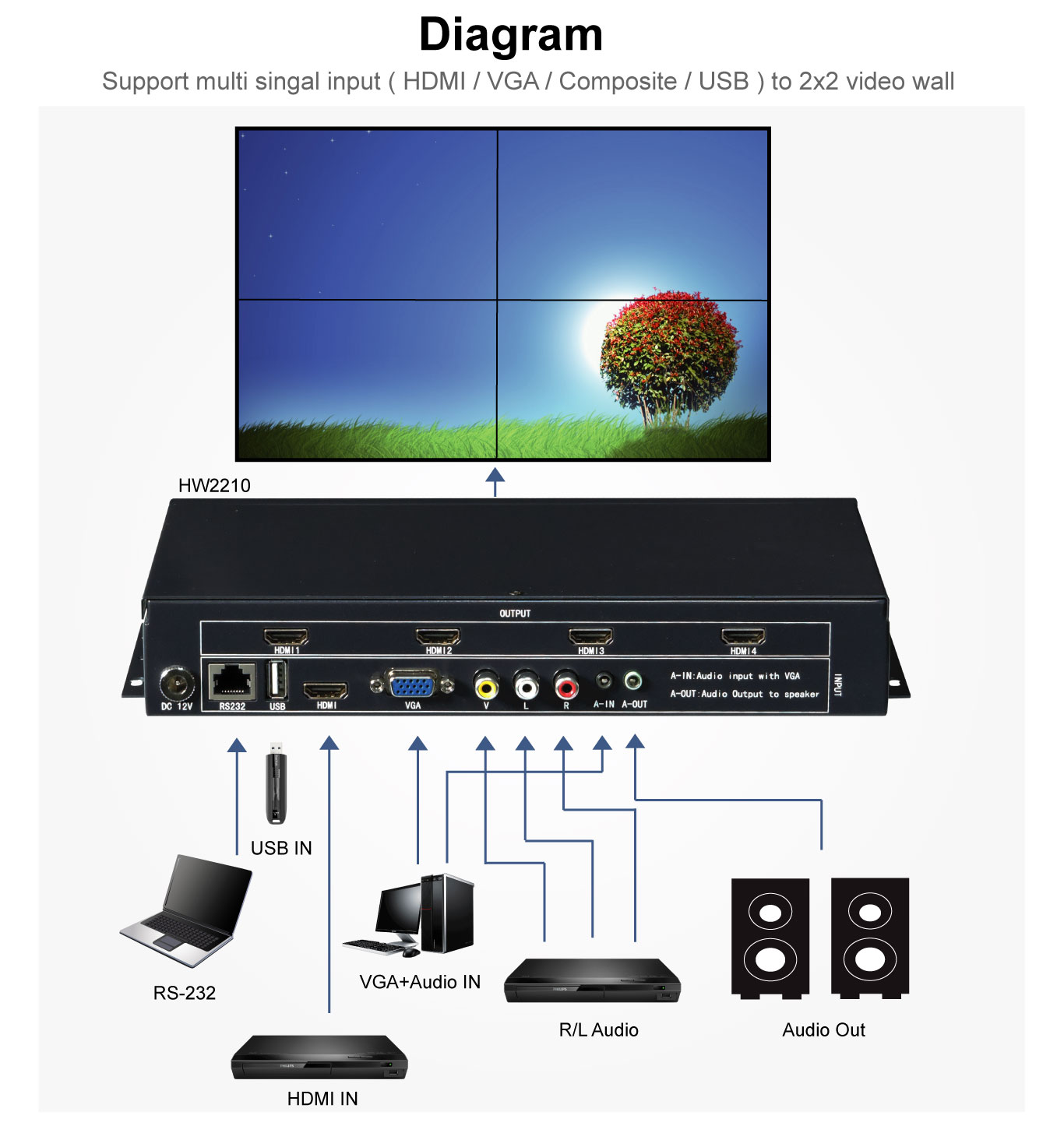

Diagram
