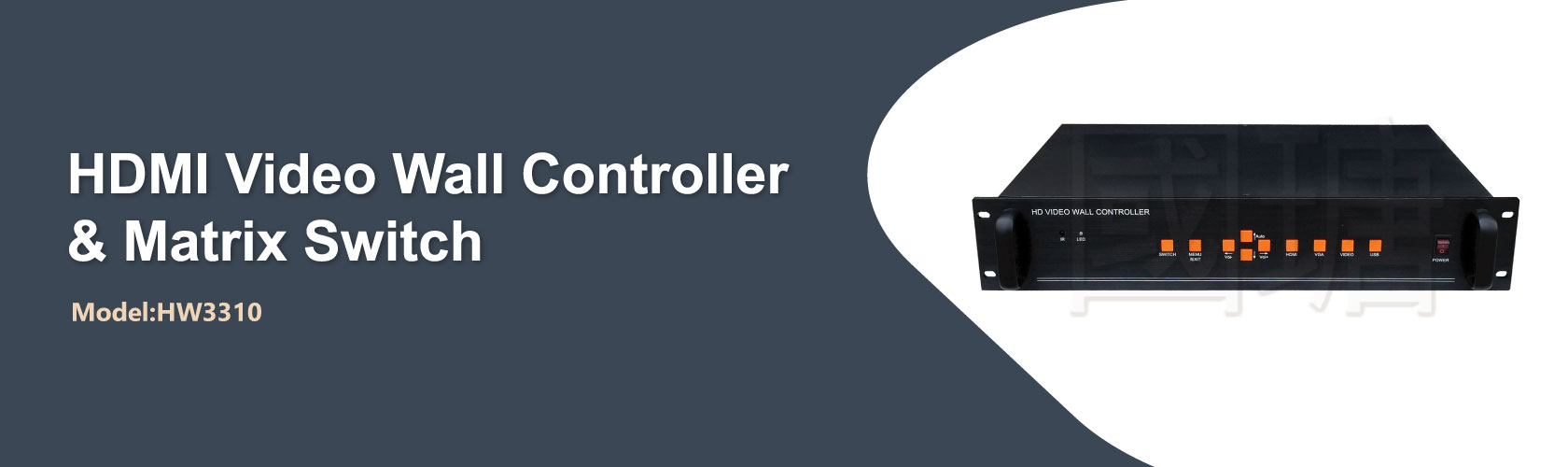

9 Screens Video Wall Controller
Supports HDMI/ VGA/ Composite/ USB input
HW3310
About HW3310
The HW3310 provides 2x2, 2X3, 2X4, 3X2, 3X3, 1X..... splicing function TV wall display.
Supports mashup signal input ( HDMI / VGA / Composite / USB) Switches the sync output to 9 HDMI displays.
Built-in 2X2, 2X3, 2X4, 3X2, 3X3, 1X..... …etc.
Supports mashup signal USB/VGA/Composite/HDMI switching input and synchronous output to 9 HDMI displays.

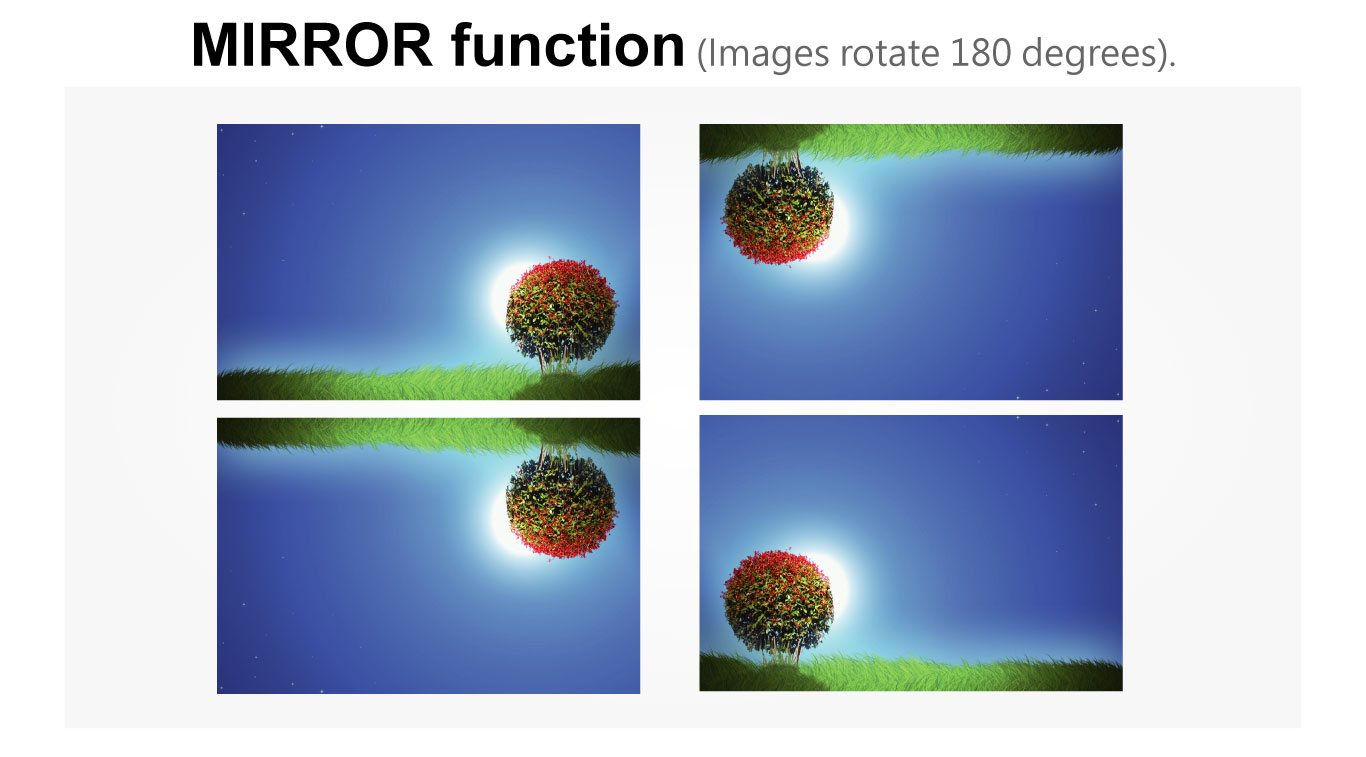

Supports screen 180° rotation function.
Can be used as 4 in 9 out switch + sync splitter.
Supports 3.5mm audio output.
The resolution is up to 1080P 60Hz.
Supports remote control / RS-232 control.
Supports 19-inch rack.
1 x Power Cable
1 x Remote Controller (battery not provided)
1 x User Manual
| MODLE NAME | HW3310 |
|---|---|
| Input | 1 x HDMI, 1 x USB, 1 x VGA, 1 x AV |
| Output | 9 x HDMI |
| Video Resolution | DTV/HDTV: 1080P @60HZ、720P @60HZ、1024x768 @60HZ |
| Video Wall mode | 2x2, 2X3, 2X4, 3X2, 3X3, 1X..... |
| Control mode | IR, RS-232, Button |
| Power Supply | AC 110V-240V 50/60HZ |
| Dimension ( L x W x H ) | 441 X 239 X 44 mm |

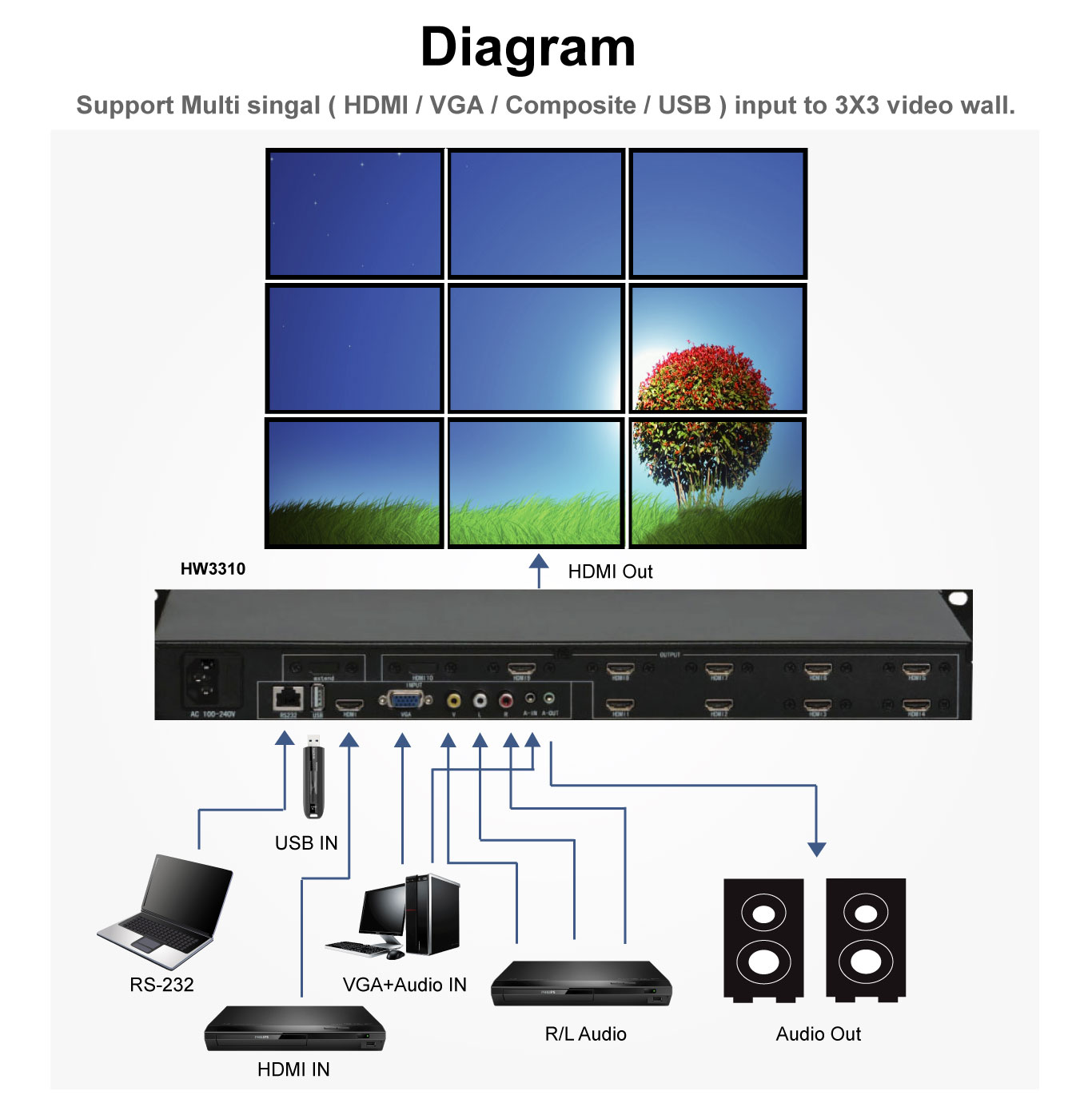

Diagram
