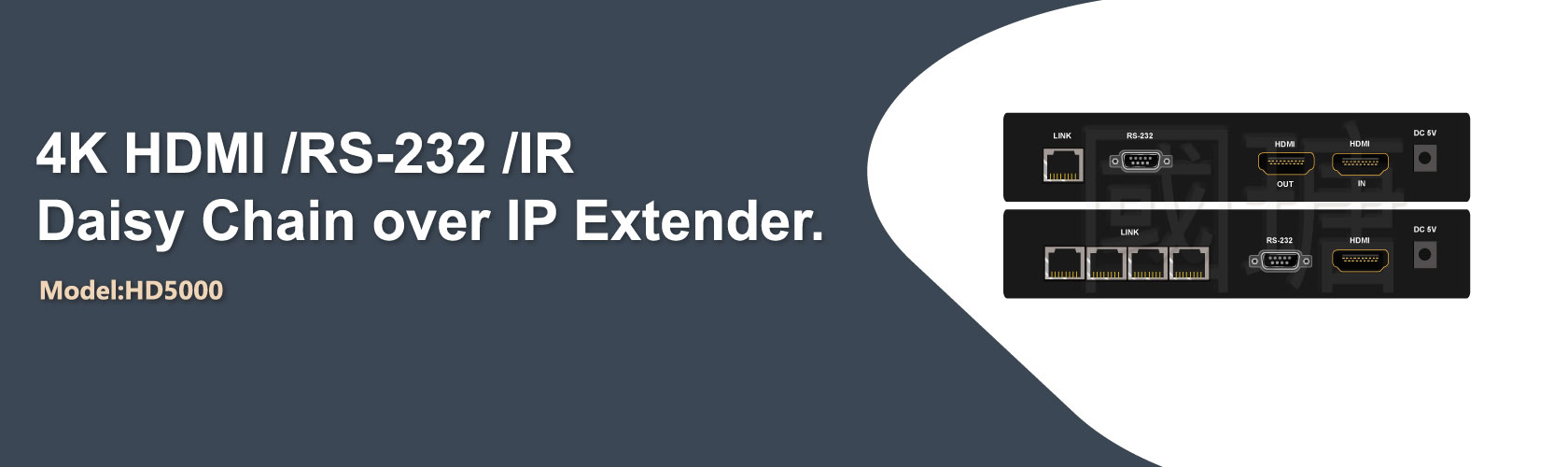

4K HDMI / RS-232 / IR Daisy Chain over IP Extender
Support EDID, Cascade-chainable
HD5000
About HD5000
PANIO [HD5000] is the 4K 30Hz HDMI extension extender.
It can be connected through a network cable, Giga switch or fiber conversion. The network cable can be cascaded-chainable to extend 100 meters.
The receiver built-in 4-port Giga network switch, 1 port is the input port, and the other 3 ports are output, which can be used cascade-chainable.
Made in Taiwan, stable quality.
Extend the 4K HDMI + IR + RS-232 signal point-to-point by 100 meters through a network cable.
Giga switch can be connected in series to become a 1-to-multi transmission method.
The remote receiver built-in 4-port GigaSwitch, which can be connected in 10 layers, up to 1000 meters in total; it also can be connected up to 30 kilometers through an optical fiber.
Maximum resolution: 4096x2160 @30Hz / 3840x2160 @30Hz.
The transmitter supports 1 x HDMI port to connect near-screen output.
Bidirectional infrared remote control (IR) control and RS232.
Pure hardware design, plug, and play, no need to install additional software.
Supports DDC/DDC2B, Hot-Plug Detection (HPD) and HDCP 1.4 compliant.
Audio supports 7.1CH LPCM, DTS, Dolby.
Support EDID function.
Supports interlaced and progressive display modes.
Wall-mounted design, easy to install and durable.
Made in Taiwan with stable quality.
2 x 5V 2A
1 x IR TX Cable
1 x IR RX Cable
1 x User Manual

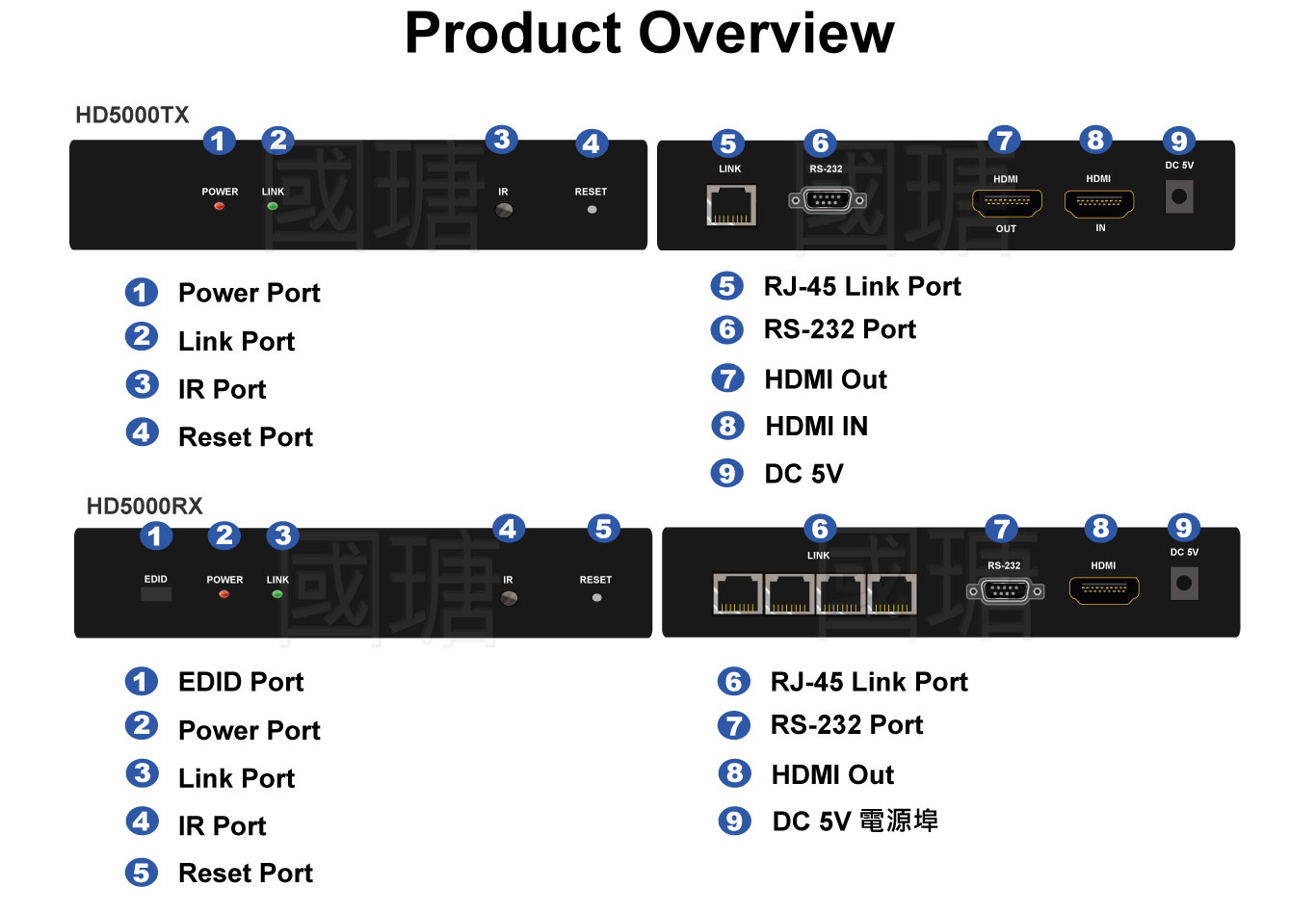

| MODLE NAME | HD5000 |
|---|---|
| Transmitter | 1 x HDMI input, 1 x HDMI output, 1 x IR output, 1 x RJ45 output, 1 x RS232 |
| Receiver | 1 x HDMI output, 1 x IR input, 4 x RJ45 (1 x input, 3 x Cascaded-chainable), 1 x RS232 |
| Cascaded-Chainable | 10 layers |
| Max Video Resolution | 4096x2160 @30Hz / 3840x2160 @30Hz |
| Extension Cable Type & Length | CAT.5e / CAT.6 / Giga switch Max.Length: 100m |
| OS Compatibility | OS Independent |
| Operating Temp | 32~ 122°F (0~ 50°C ) |
| Humidity | 0% ~ 80% RH |
| Power Supply | AC 110V-240V 50/60HZ DC:5V 2A |
| Dimension ( L x W x H ) | T: 180 x 82 x 27 mm / R: 180 x 82 x 27 mm (Pairs) |
| Mass (Main unit) | T: 470g / R: 471g (Pairs) |
Diagram
